System Specifications

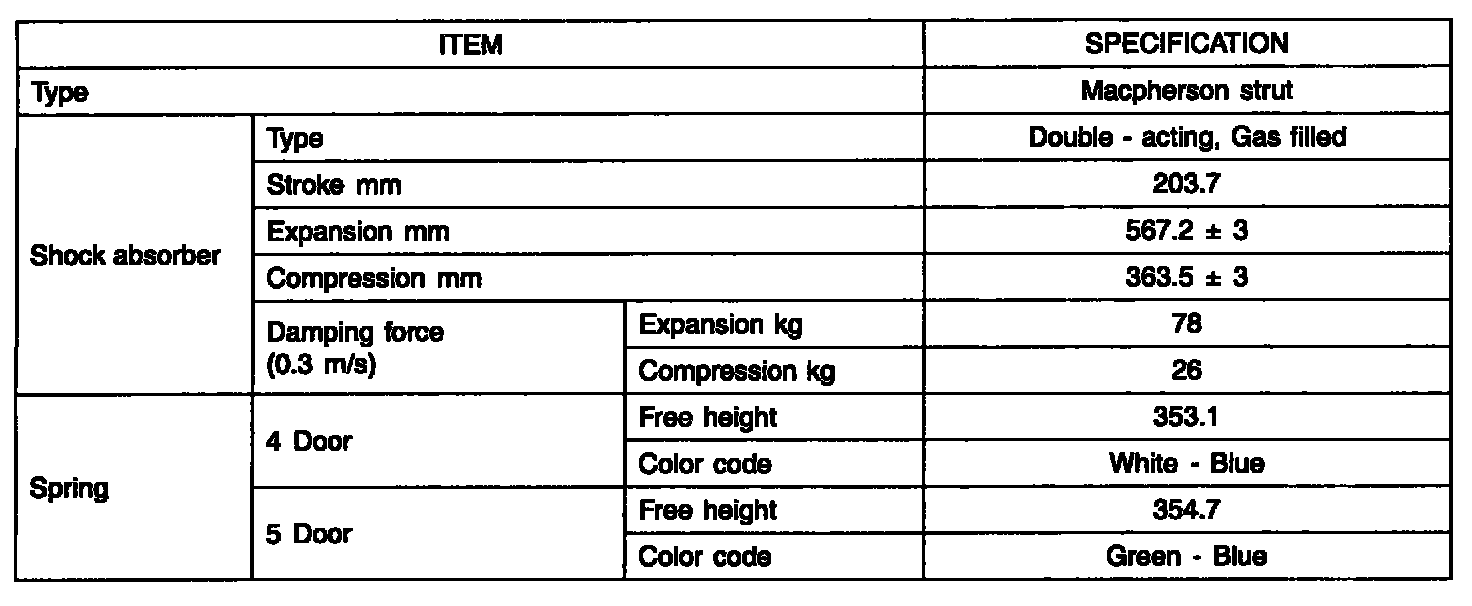

Front Suspension:

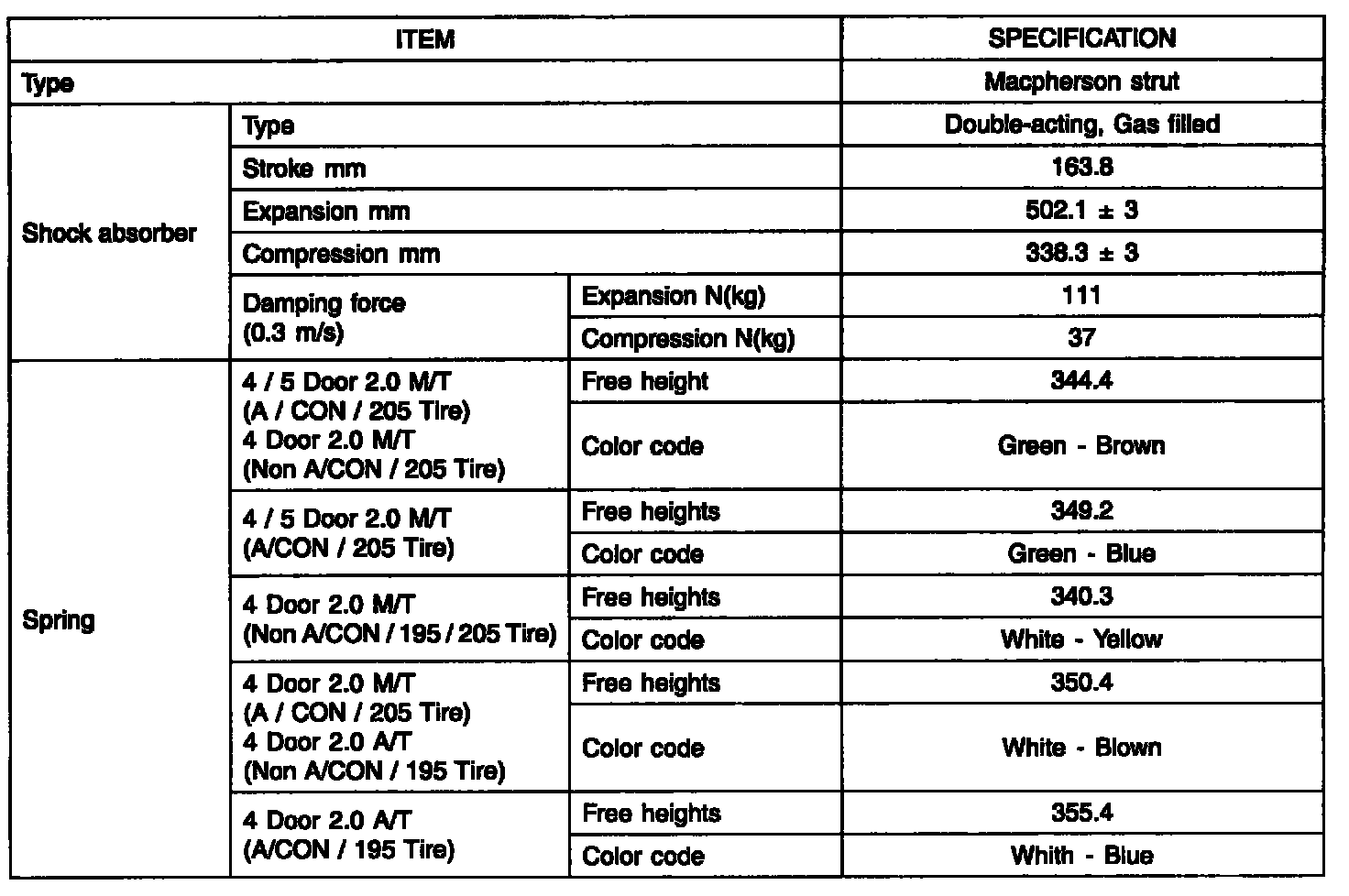

Rear Ssupension:

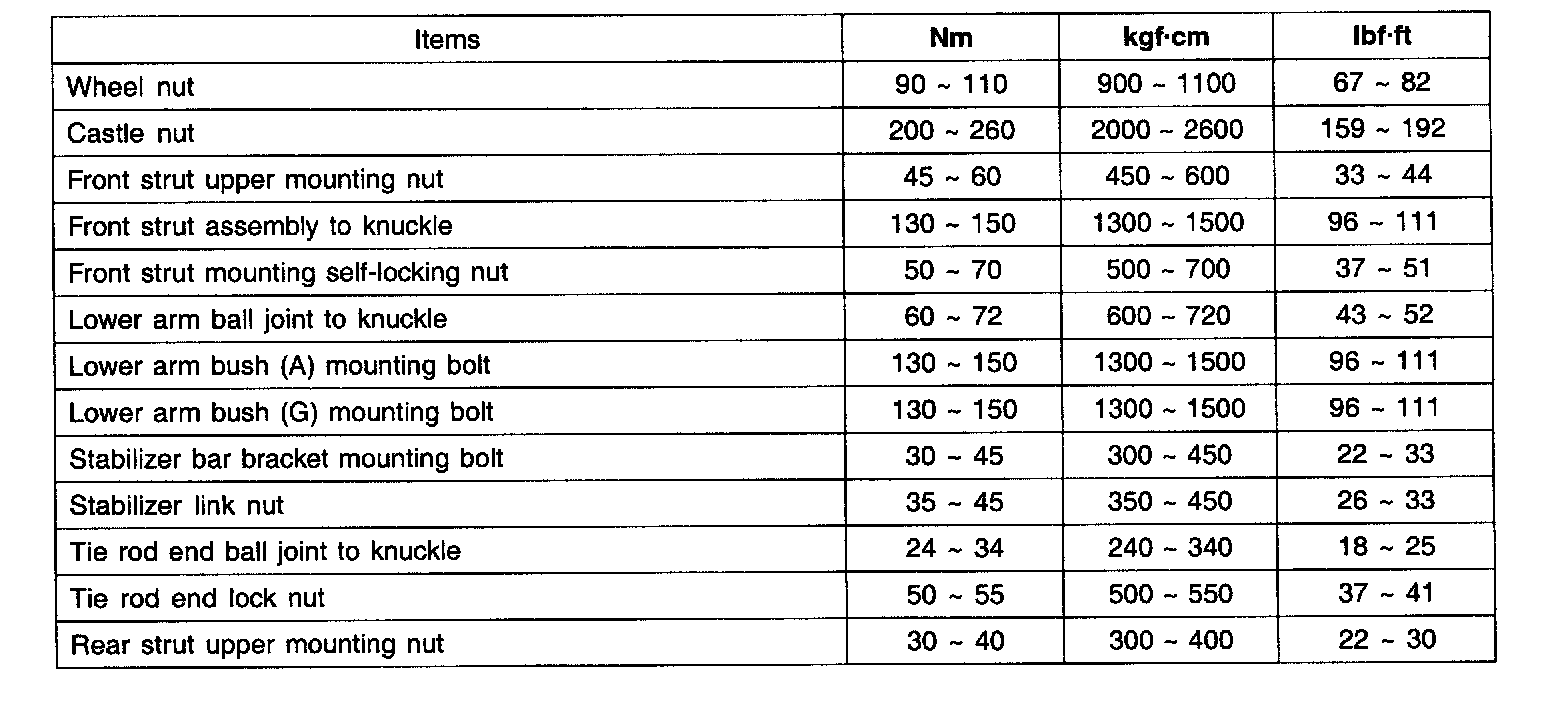

Tightening Torque Part 1:

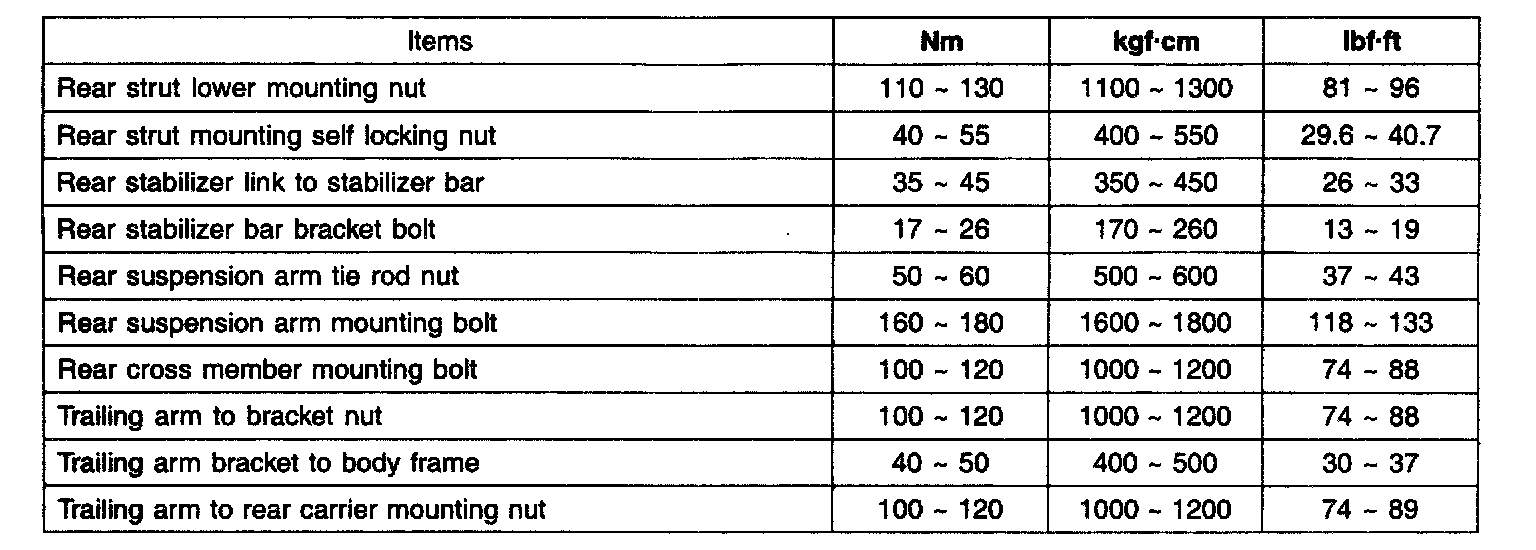

Tightening Torque Part 2:
