Front

FRONT WHEEL SPEED SENSOR

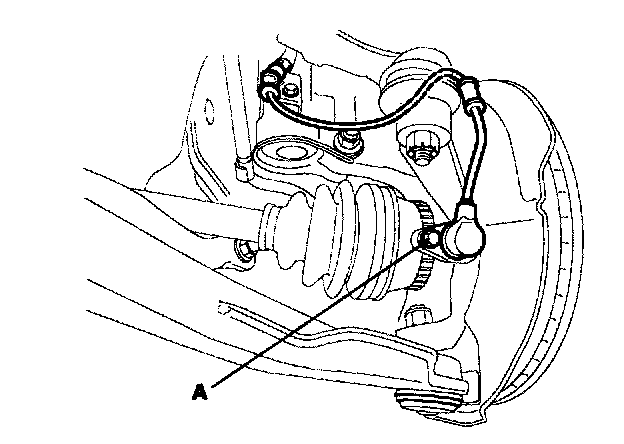

1. Remove the front wheel speed sensor mounting bolt (A).

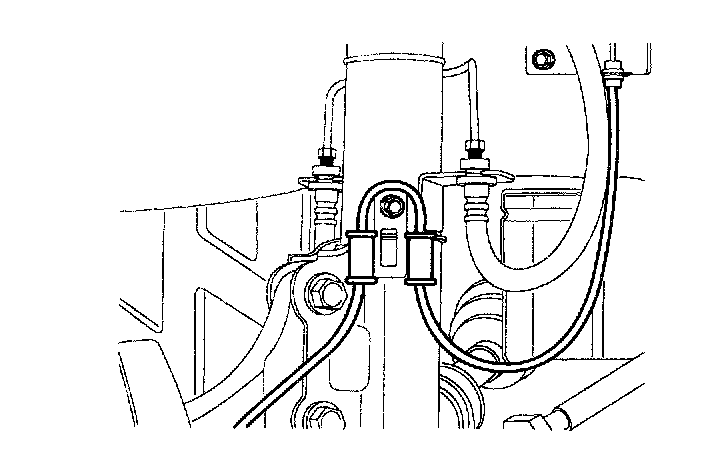

2. Remove the mounting bolt fixed on the strut.

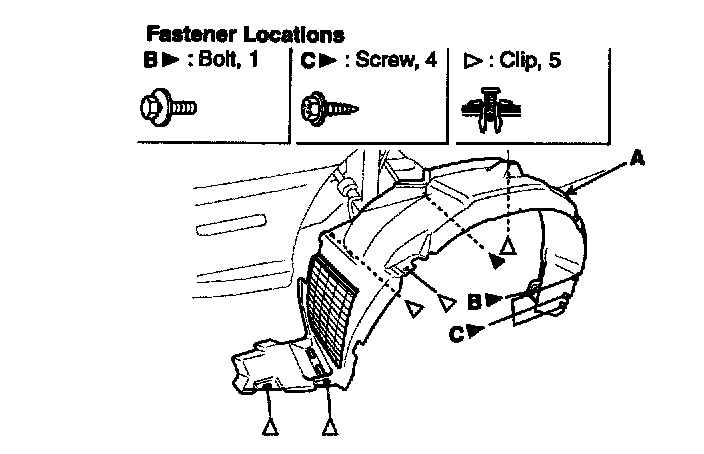

3. Remove the front wheel guard (A).

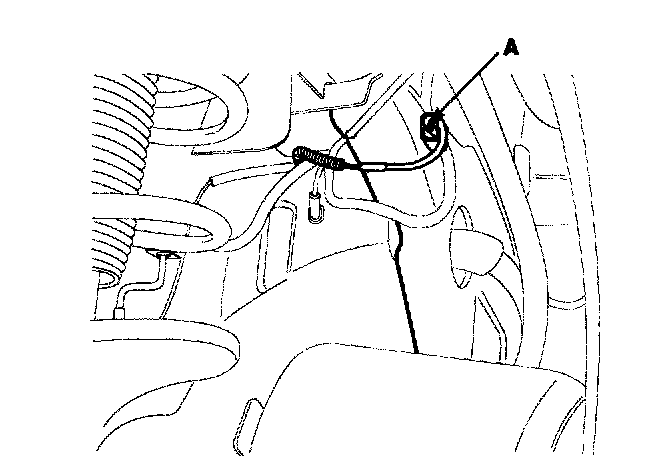

4. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).
