Front Lap / Shoulder Belt Assembly

REMOVAL AND INSTALLATION

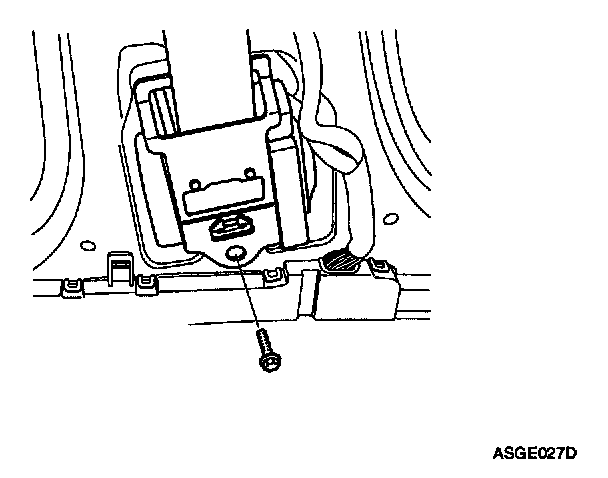

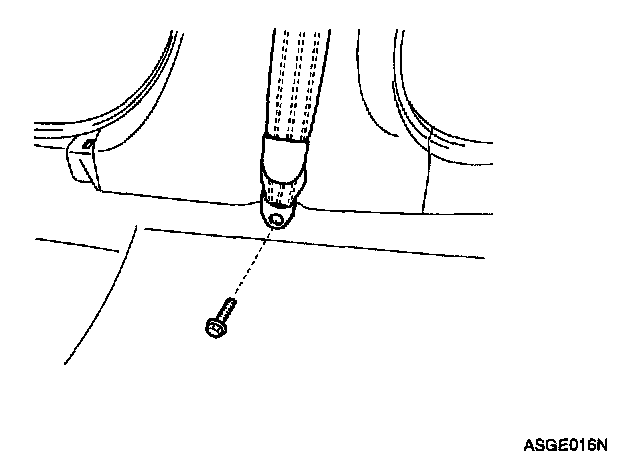

1. Remove seat belt lower anchor bolt.

Tightening torque : 40 - 55 Nm (4.0 - 5.5 kg.m, 29 - 40 lb.ft)

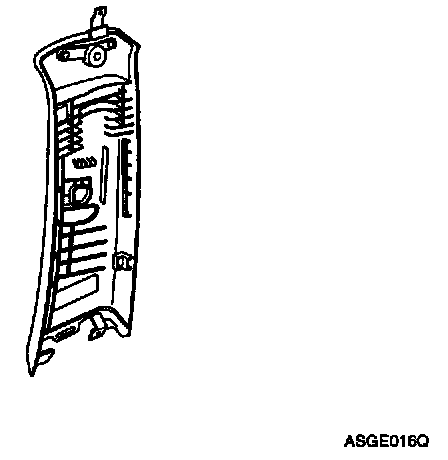

2. Remove center pillar lower trim.

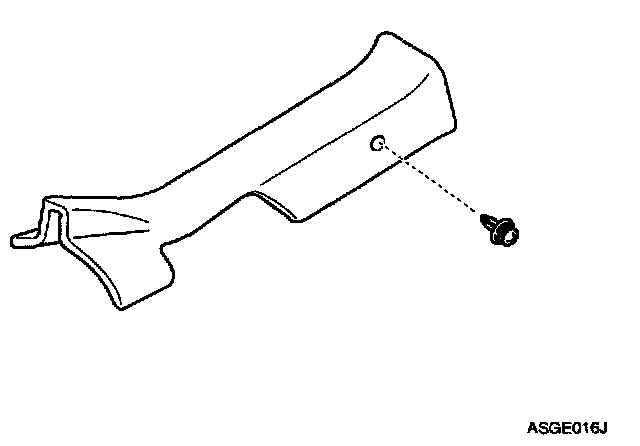

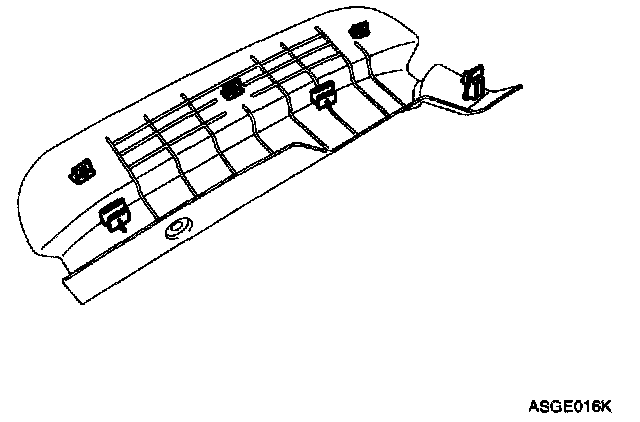

1. Remove front door scuff trim.

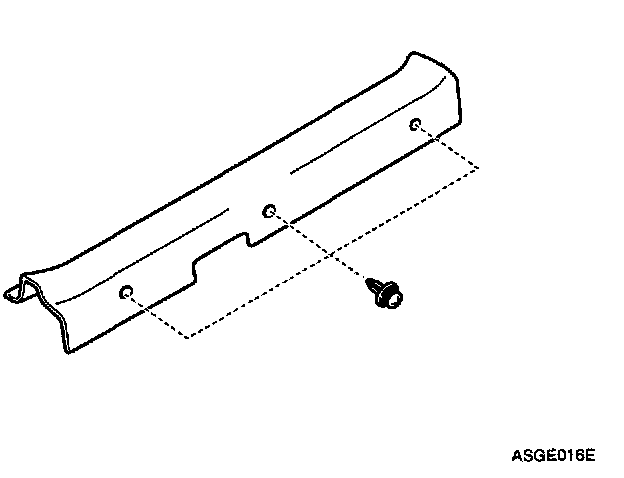

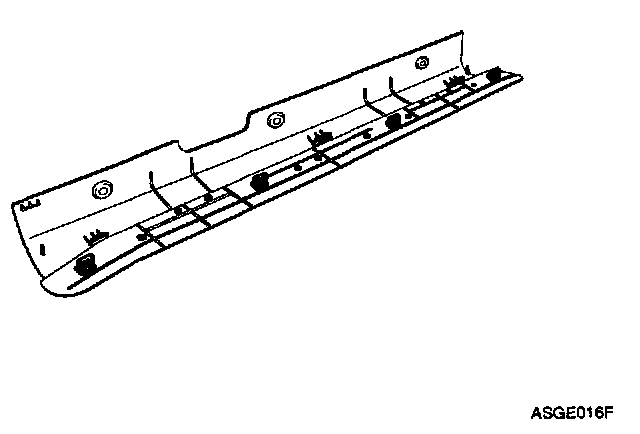

2. Remove rear door scuff trim.

3. Remove body side weatherstrip.

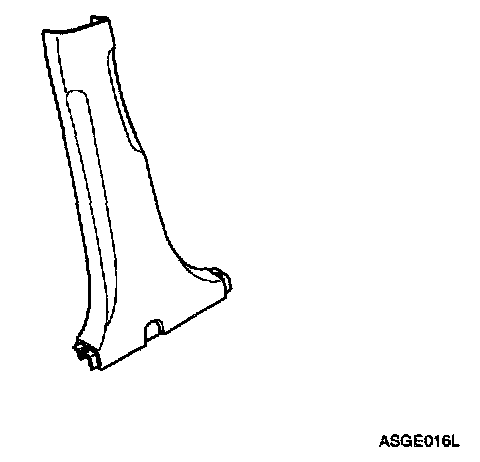

4. Remove center pillar lower trim.

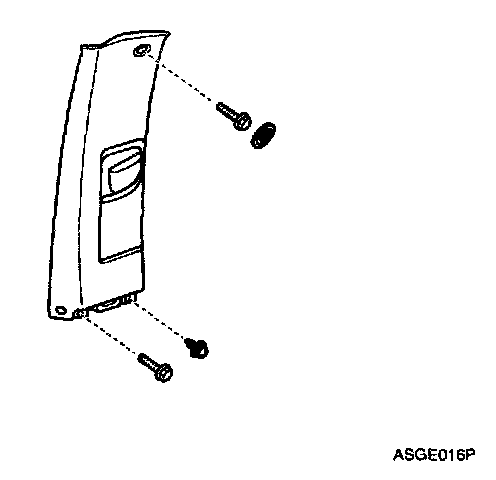

3. Remove center pillar upper trim.

1. Remove pillar blanking cover.

2. Remove bolts(2) and fastener.

3. Remove trim from center pillar.

4. Remove seat belt from trim.

4. Removal of pretensioner retractor.
1. Turn ignition switch "OFF".
2. Disconnect negative battery cable.
3. Wait for about 1 minute.

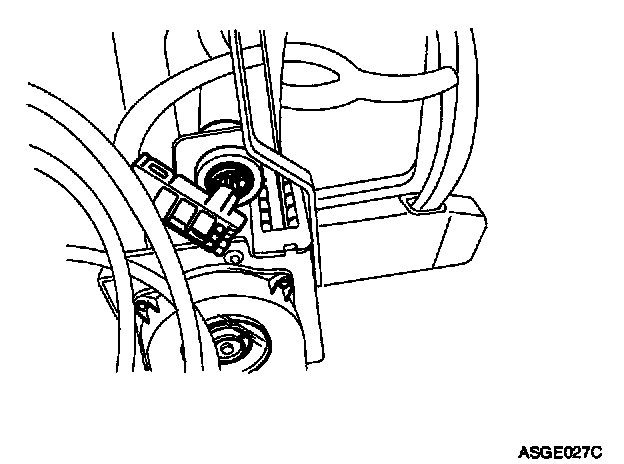

4. Release gas generator connector stopper.

5. Disconnect gas generator connector.

6. Remove pretensioner retractor bolt.

Tightening torque : 40 - 55 Nm (4.0 - 5.5 kg.m, 29 - 40 lb.ft)

7. Remove pretensioner retractor.

NOTE

1. A pretensioner functions one time only. Be sure to replace the pretensioner seat belt after it is deployed.

2. When carrying the pretensioner seat belt, do not take the belt.

If take the belt and carry the pretensioner seat belt, the interior parts of pretensioner retractor can be damaged or fingers can go into retractor and get injured.

3. Do not attempt to disassemble or repair the seat belt pretensioner.

If it malfunctions, replace it with a new pretensioner seat belt.

4. Connect the battery only after the installation of the pretensioner seat belt has been correctly completed.

5. Removal of pretensioner retractor.
a. Turn ignition switch "OFF".
b. Disconnect negative battery cable.
c. Wait for about 1 minute.
d. Disconnect gas generator connector.
e. Remove pretensioner retractor bolt.

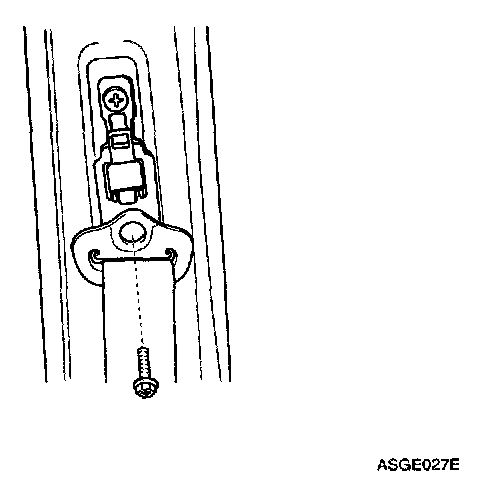

5. Remove seat belt upper anchor bolt.

Tightening torque : 40 - 55 Nm (4.0 - 5.5 kg.m, 29 - 40 lb.ft)

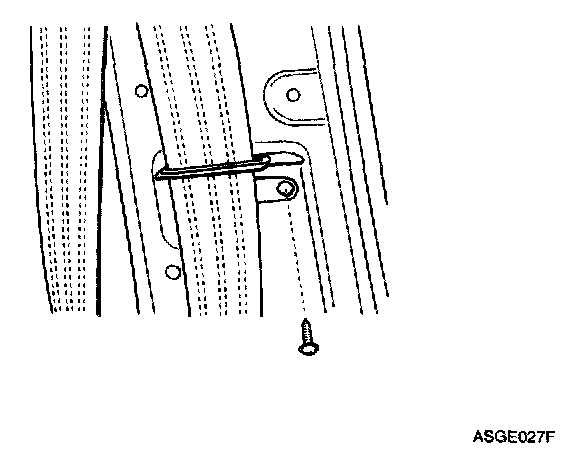

6. Remove seat belt guide screw.

Tightening torque : 40 - 55 Nm (4.0 - 5.5 kg.m, 29 - 40 lb.ft)

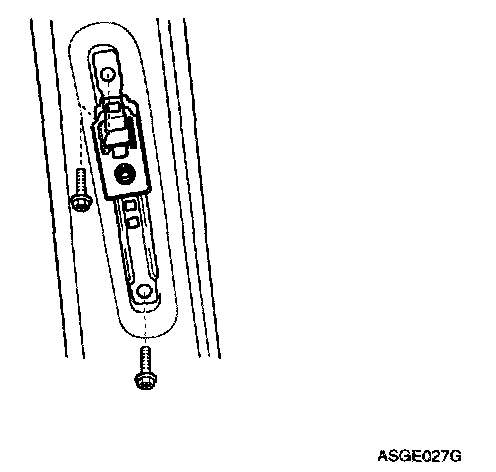

7. Remove seat belt height adjuster.

1. Remove bolts(2).

Tightening torque : 40 - 55 Nm (4.0 - 5.5 kg.m, 29 - 40 lb.ft)

2. Remove height adjuster from center pillar. 8. Install in reverse order of removal.
