Home >> Kia >> 2004 >> Spectra L4-2.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations >> Component Locations

Component Locations

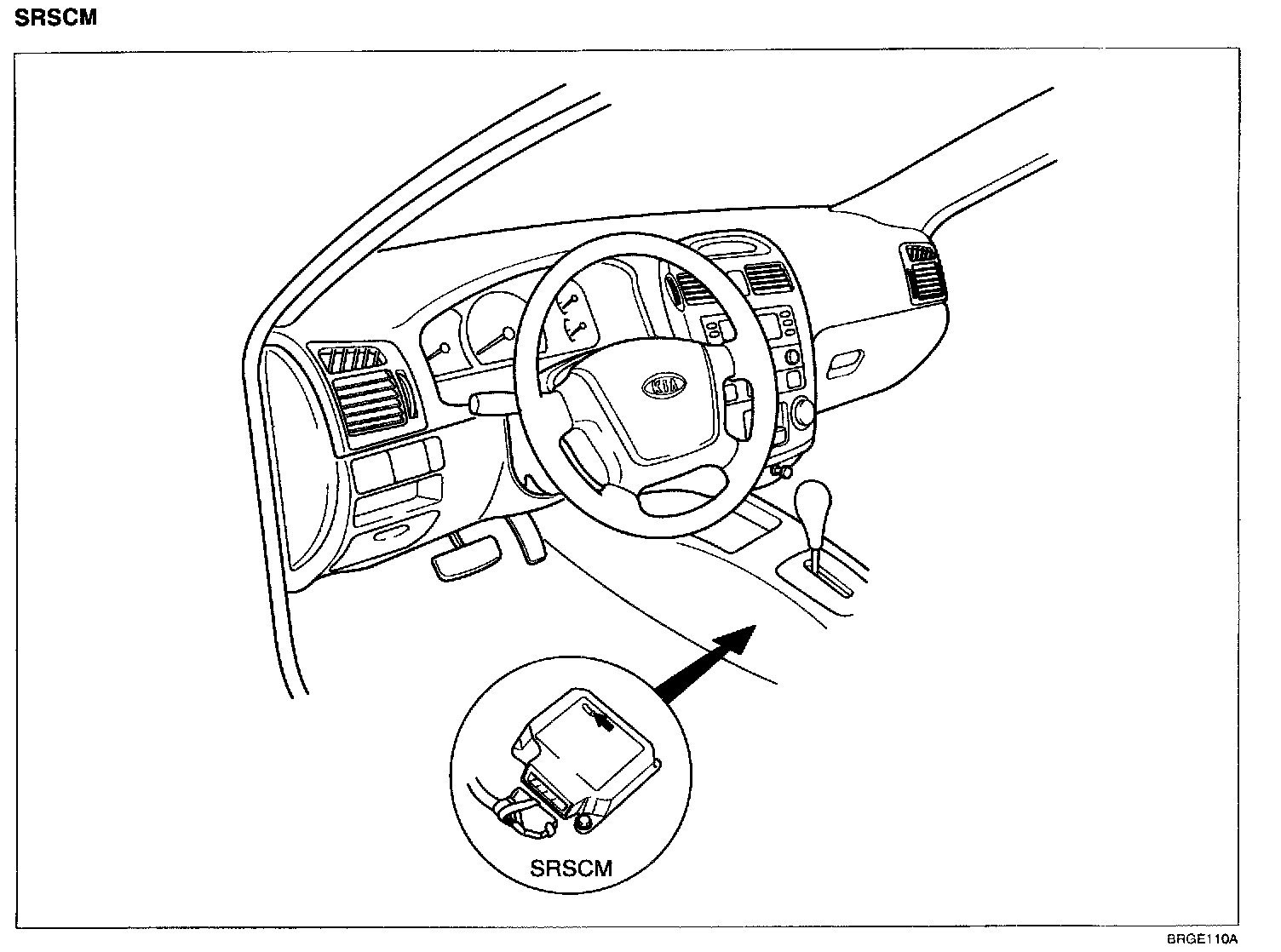

Airbag Diagnostic (ADU) Control Module Location


SRSCM:






Located beneath the center console.
