Air Bag Module (Driver Side)
REMOVALCAUTION:
- Turn the front wheel to the straight-ahead position when removing/installing the Driver Airbag or Clockspring.
- Prior to installing the clockspring, set the clockspring on NEUTRAL position and after turning the front wheels to the straight-ahead position, install the clockspring to the column switch. If the mating mark of the clockspring is not properly aligned, the steering wheel may not completely rotate during a turn, or the flat cable within the clockspring may be broken obstructing normal operation of the SRS and possibly leading to serious injury to the vehicle's driver.
- Never attempt to disassemble or repair the airbag module or clockspring. If faulty, replace it.
- Do not drop the airbag module or clockspring or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust is detected.
- The airbag module should be stored on a flat surface and placed so that the pad surface is facing upward. Do not place anything on top of it.
- Do not expose the air bag module to temperatures over 93 °C (200 °F).
- After deployment of an airbag, replace the clockspring with a new one.
- Wear gloves and safety glasses when handing an air bag that has been deployed.
- An undeployed airbag module should only be disposed of in accordance with the procedures mentioned in the restraints section.
- When you disconnect the air bag module-clockspring connector, take care not to apply excessive force.
- The removed air bag module should be stored in a clean, dry place.

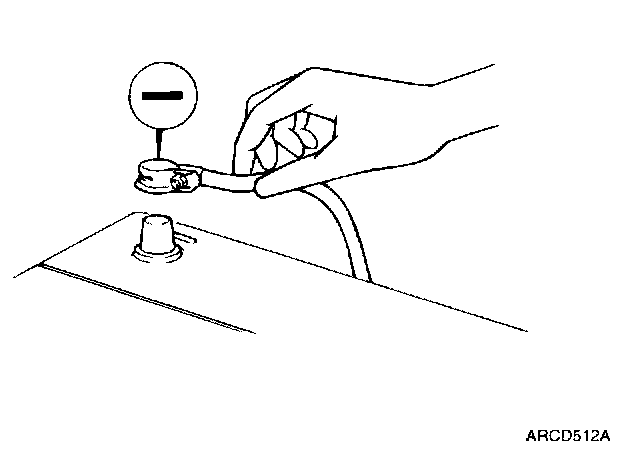

1. Disconnect the negative (-) cable from battery and wait for at least three minutes.
2. Remove ignition key from the vehicle.

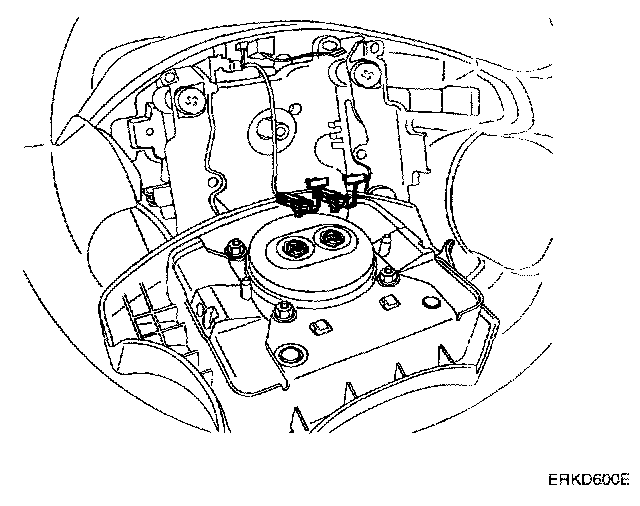

3. Unscrew the DAB mounting bolts (A).
4. Disconnect the DAB connectors (Stage #1 and #2).
5. Remove the Driver Airbag (DAB) module from the steering wheel.

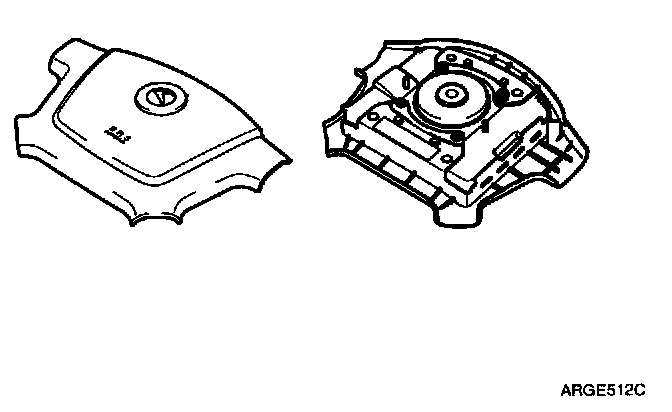

CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover face up.

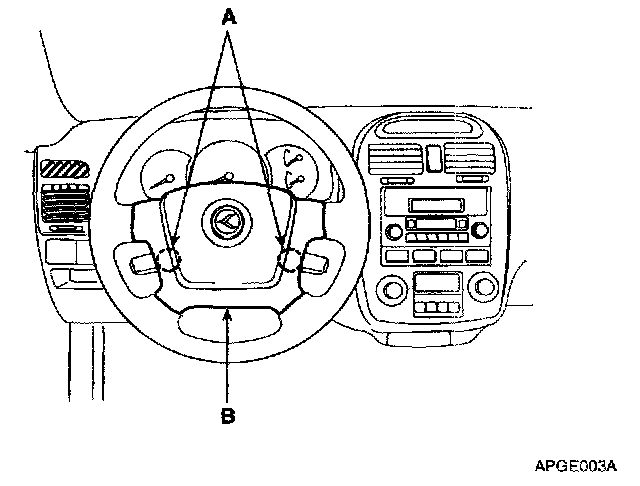

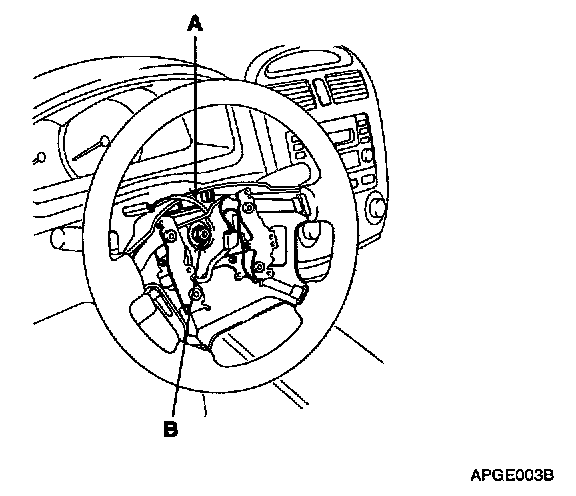

6. Remove the switch connector (A) and the steering-wheel lock nut (B).

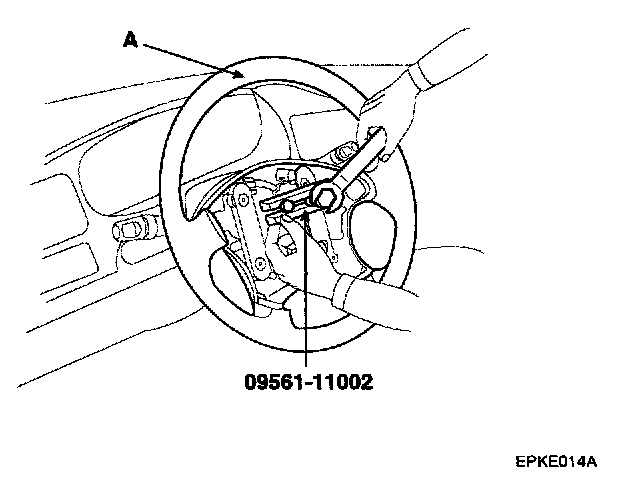

7. After setting the steering shaft to the mark on wheel, remove the steering wheel with the SST (09561-11002).
CAUTION: Don't strike the steering wheel with a hammer or other device. Damage to the steering wheel or components could occur.

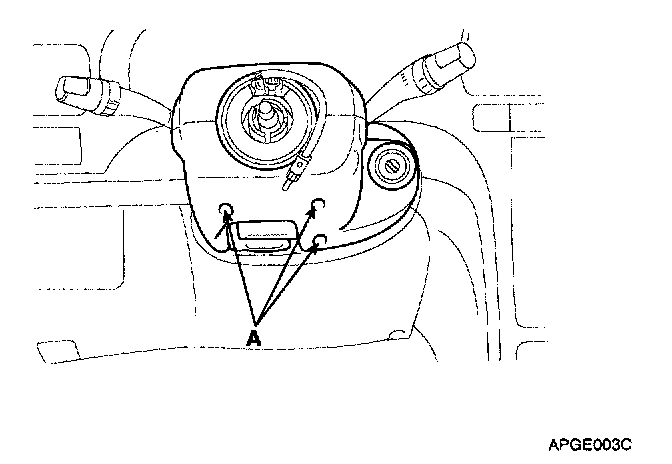

8. Unscrew the three bolts (A) and remove the column shroud.

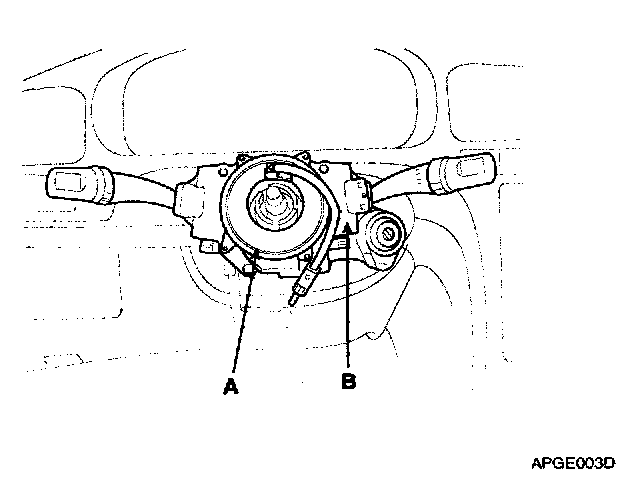

9. Disconnect the connectors on the clockspring (A) and the multi-function switch (B).

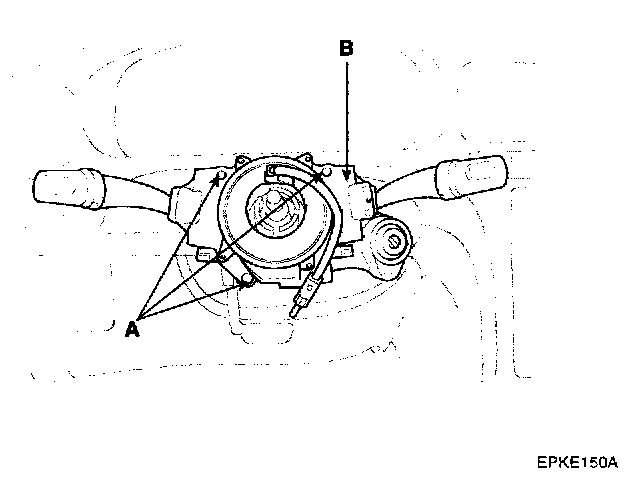

10. Unscrew the three bolts (A) and remove the multifunction switch (B).
11. Remove the clockspring from the multi-function switch.
INSTALLATION

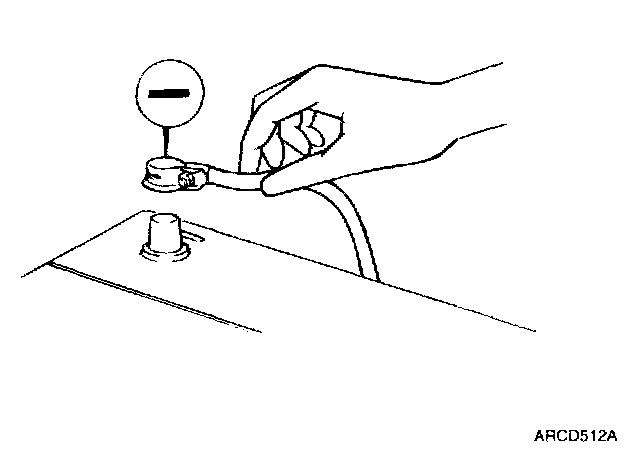

1. Disconnect the negative (-) cable from battery and wait for at least three minutes.
2. Remove ignition key from the vehicle.
3. Connect the Driver Airbag (DAB) harness connectors, then install a Driver Airbag (DAB) module on the steering wheel.
4. Secure the Driver Airbag (DAB) with the new mounting bolts.
Tightening Torque (DAB Mounting Bolt) : 8 - 10 Nm (5.8 - 7.2 lb.ft)
5. Connect the battery negative cable.
6. After installing the airbag, confirm proper system operation:
- Turn the ignition switch ON; the SRS indicator light should blink for about six seconds and then go off.
- Make sure both horn buttons work.
