Air Bag Module (Passenger Side)

AIR BAG MODULE (PASSENGER SIDE)

AIR BAG MODULE (PASSENGER)

DESCRIPTION

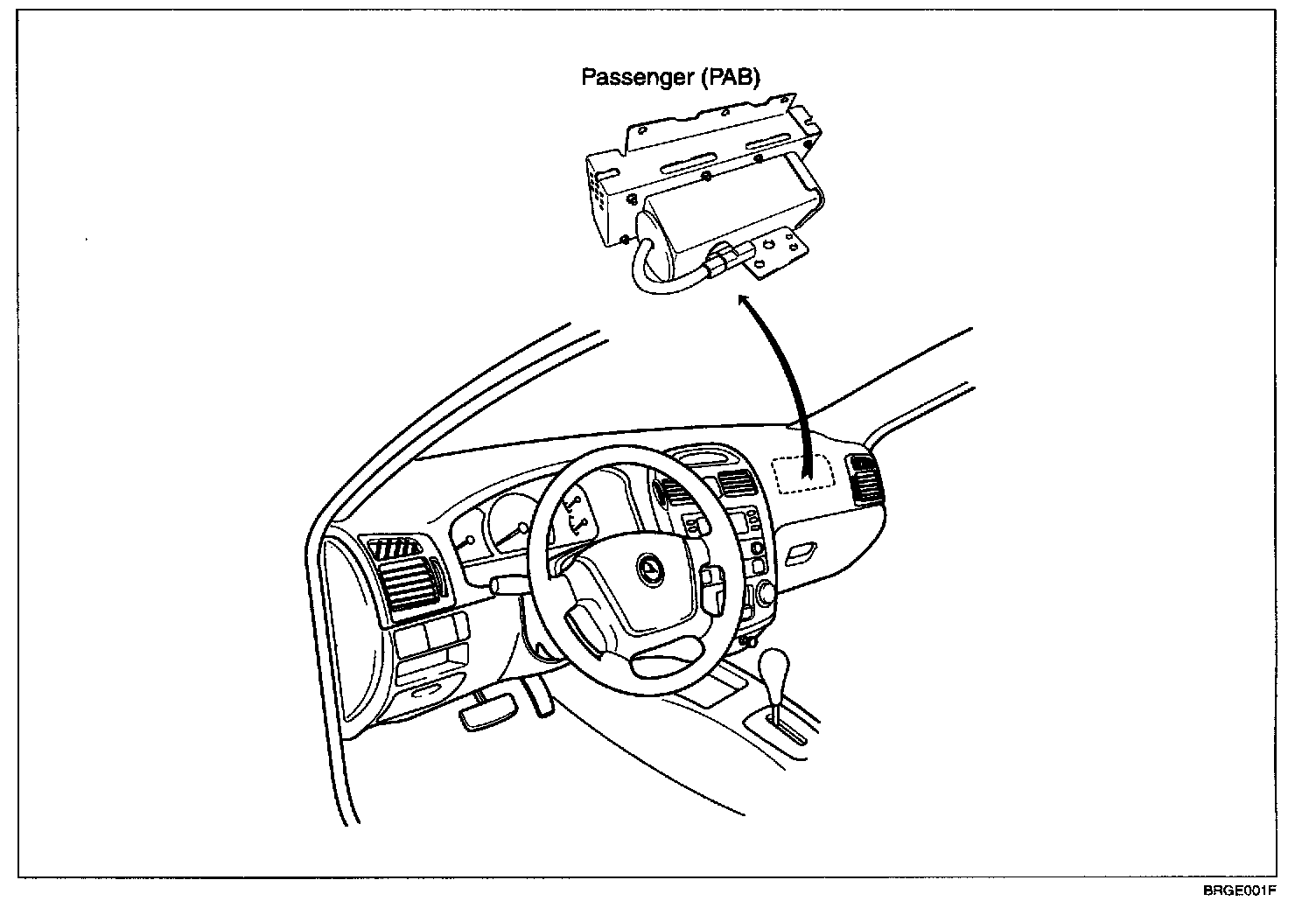

The passenger Airbag (PAB) is installed inside the dash and protects the front passenger in the event of a frontal crash. The SRSCM determines if and when to deploy the PAB but the front impact sensor (FIS) signal. The PAB is a two-stage device; if the SRSCM determines that only the first stage should activate, the second stage will dispose 120 ms after first-stage deployment. In case of loss of vehicle power, the driver firing loops are have a 150 ms battery backup.

CAUTION: Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using the specified tester. If the circuit resistance Is measured with a tester, accidental airbag deployment will result in serious personal injury.
