Adjusting the A/C Belt

ADJUSTMENT

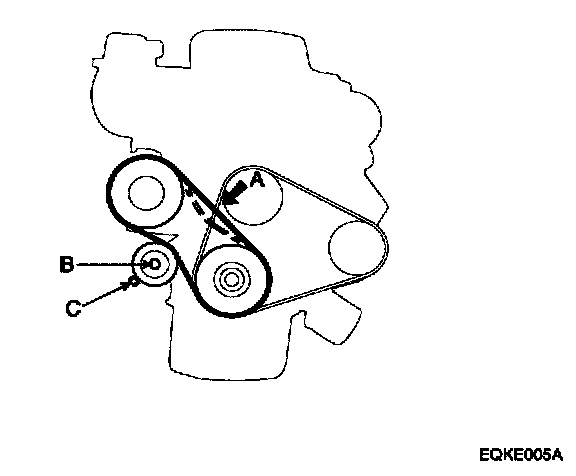

1. Loosen the tension mounting bolt(B).
2. Turn the adjusting bolt(C) to obtain the proper belt tension, then retighten the mounting bolt(B).




3. Recheck the deflection of the A/C compressor belt.

NOTE: Do not adjustment the drive belt of Diesel engine.
