Headlamp: Service and Repair

HEAD LAMPS

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

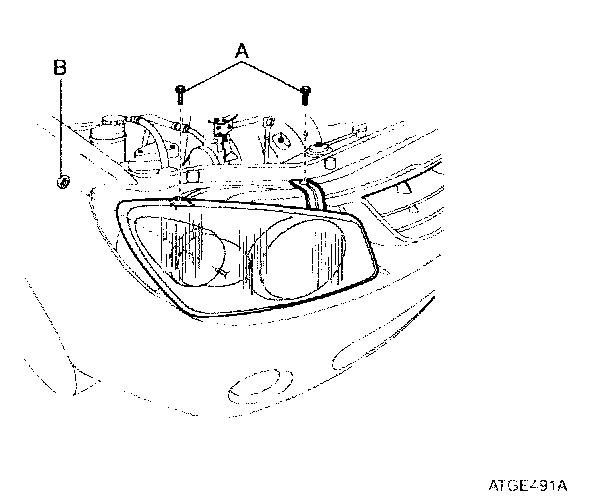

2. Remove the head lamp assembly after loosening the mounting bolts (A) and nut (B) and disconnecting the lamp connectors
3. Installation is the reverse of removal.
