Courtesy Lamp: Service and Repair

ROOM LAMP

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

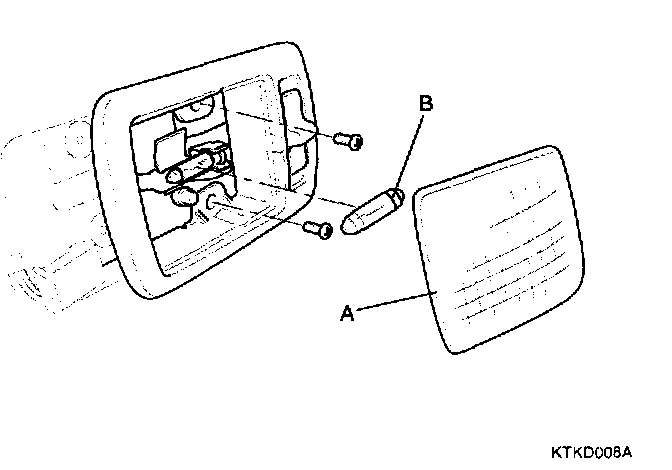

2. Detach the lamp lens (A) from the room lamp with a flat-tip screwdriver then replace the bulb (B).




3. Remove the room lamp assembly after removing 2 screws and disconnecting the 3P connector.
4. Installation is the reverse of removal.
