Brake Lamp: Service and Repair

STOP LAMPS

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Open the trunk lid and then disconnect the connector of high mounted stop lamp.
3. Remove the spoiler after loosening the mounting screws.

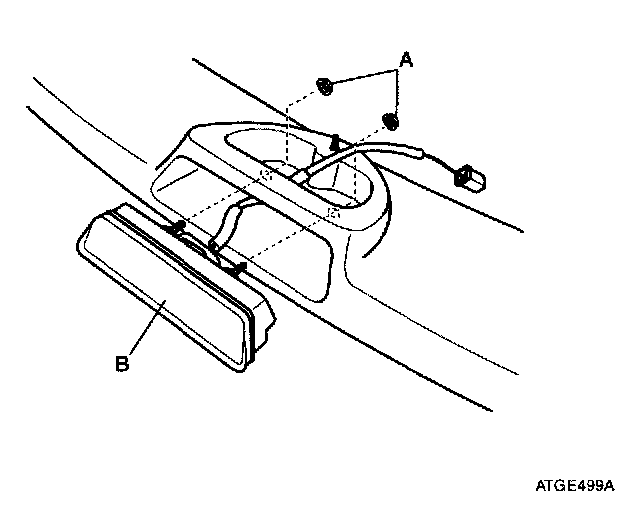

4. Remove the high mounted stop lamp (B) after loosening the nuts (A).
5. Installation is the reverse of removal.
