Instrument Cluster / Carrier: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

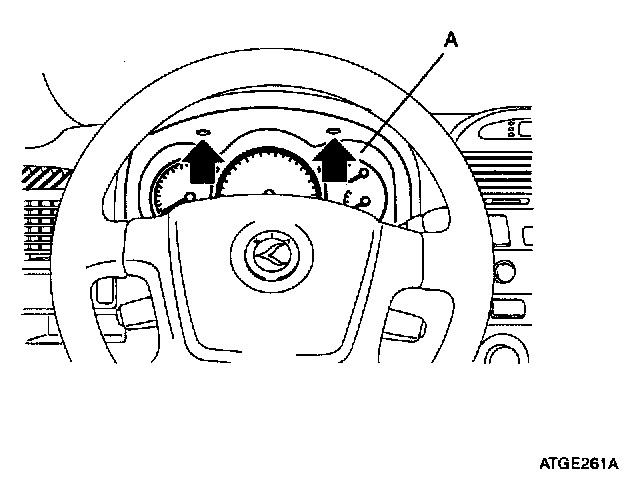

2. Remove the cluster facia panel (A).

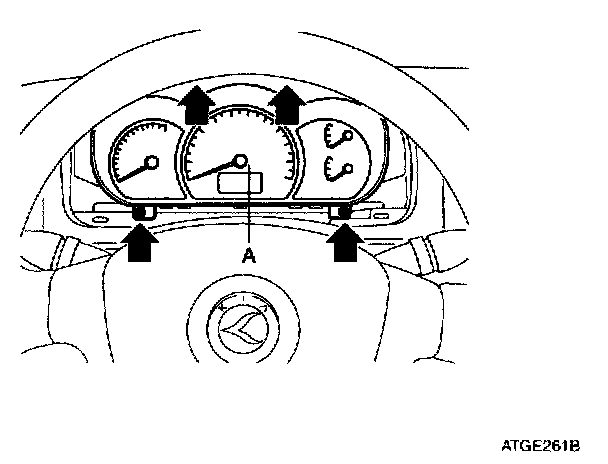

3. Remove the cluster (A) from the housing after removing 4 screws.
4. Remove the cluster connector and the cluster.
5. Installation is the reverse of removal.
