Control Assembly: Service and Repair

REPLACEMENT

1. Disconnect the negative(-) battery terminal.

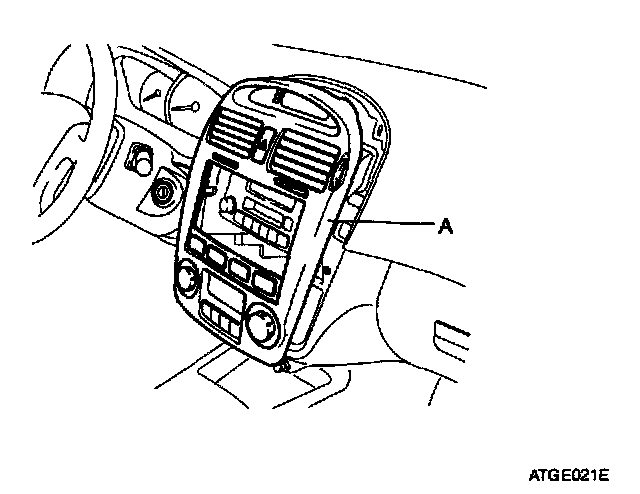

2. Remove the center facia panel(A).
3. Disconnect the connectors from the center facia.




4. Remove the blower and A/C control unit(A).
5. Install in the reverse order of removal.
