Condenser Fan: Testing and Inspection

INSPECTION

CONDENSER FAN

1. Check the condenser fan for proper operation.
2. Check the harness connector.

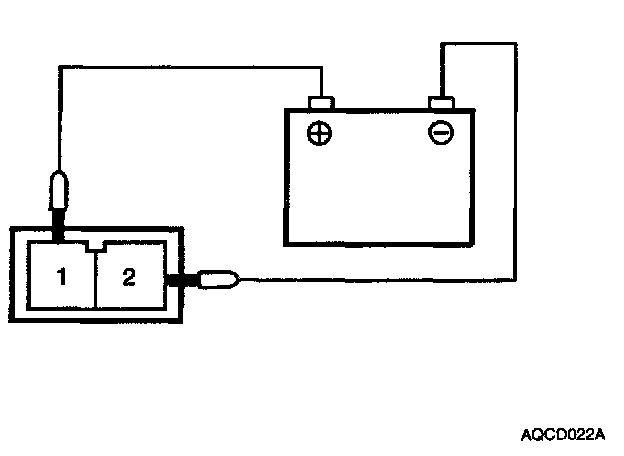

3. Check the condenser fan motor using battery voltage as shown below.
