Compressor Clutch: Testing and Inspection

MAGNETIC CLUTCH

CHECKING THE CLUTCH AIR GAP

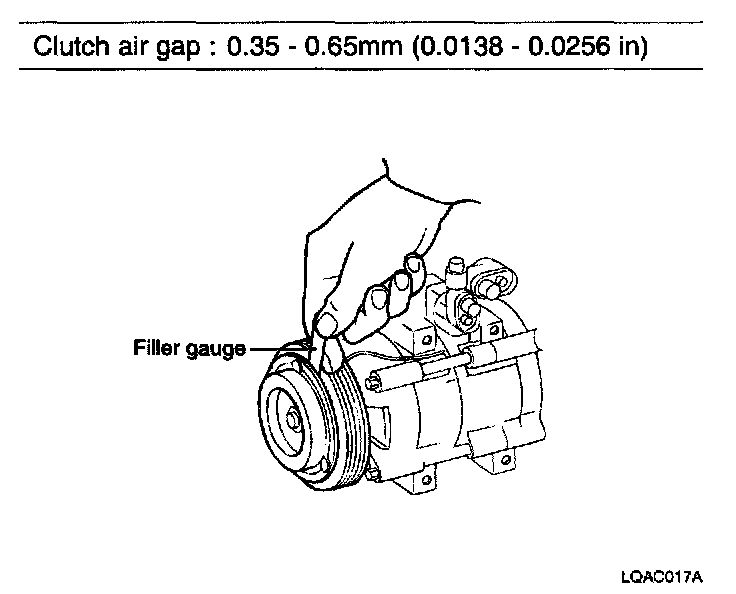

1. Check the air gap between the clutch hub and pulley contact surface using a filler gauge.

Clutch air gap : 0.35 - 0.65mm (0.0138 - 0.0256 in)

2. Check the gap around the pulley at 3 points.

3. If the clutch air gap is outside the normal range, correct it using a shim of proper size.

MAGNETIC CLUTCH OPERATION




Connect the compressor terminal to battery(+) and the battery(-) terminal to the compressor body. Verify magnetic clutch operation by a clicking noise.
