Mode Actuator
REPLACEMENT1. Disconnect the negative(-) battery terminal.
2. Remove the lower crush panel and the side cover.

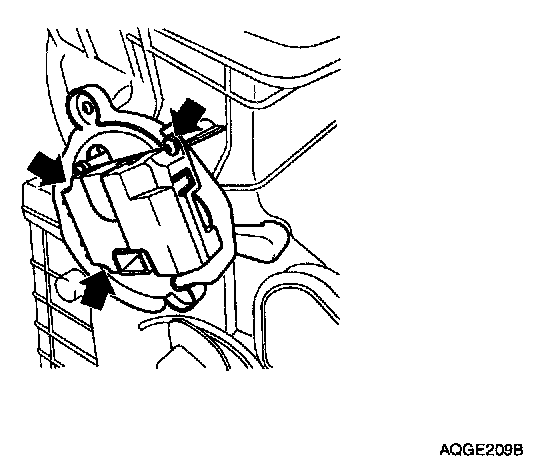

3. Disconnect the connector of mode actuator after removing the air duct.
4. Loosen the mounting screw and then remove the mode actuator.
5. Install in the reverse order of removal.
