Front Brake Disc Thickness Check

FRONT BRAKE DISC THICKNESS CHECK

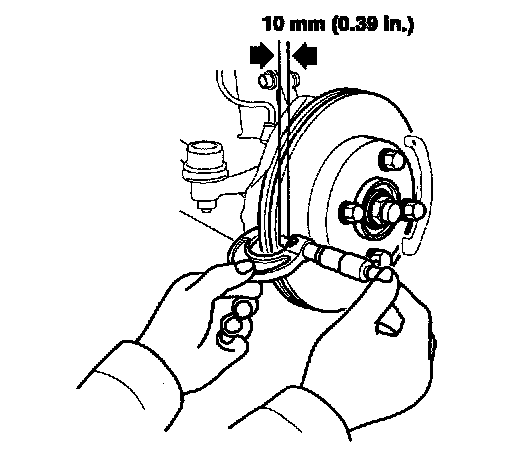

1. Remove all rust and contamination from the disc surface, and then measure the disc thickness at 4 positions at least.
Front brake disc thickness
Standard value: 26.0 mm (1.02 inch)
Limit: 24.0 mm (0.945 inch)
2. Thickness variation should not exceed 0.005mm (0.0002 inch) (circumference) and 0.05mm (0.0020 inch) (radius) at any directions.





3. If wear exceeds the limit, replace the discs and pad assembly for left and right of the vehicle.
