Brake Pad Inspection

INSPECTION OF REAR DISC BRAKE PAD

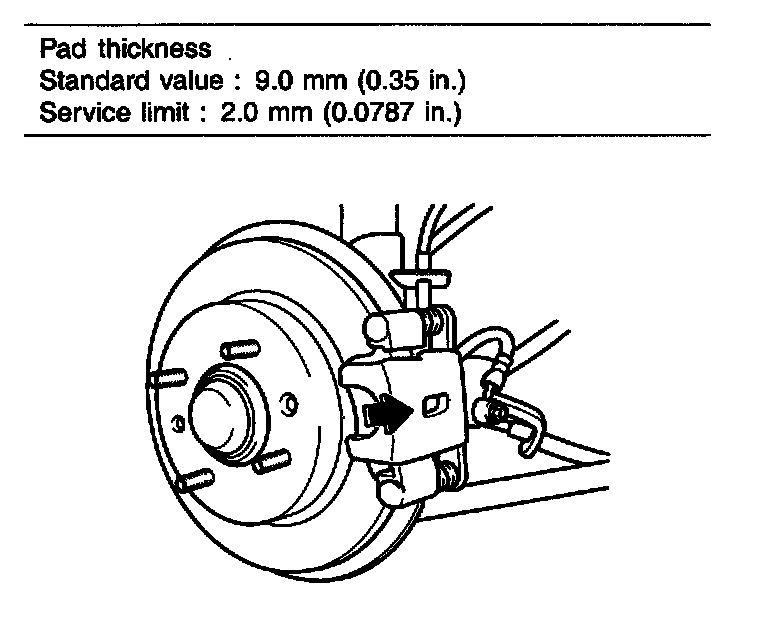

1. Check the brake pad thickness through the caliper body inspection hole.
Pad thickness Standard value: 9.0 mm (0.35 inch)
Service limit: 2.0 mm (0.0787 inch)





CAUTION:
- If the pad thickness is out of specification, left and right pads must be replaced as a complete set.
- When the thickness difference between the left pad and right pad is large, check the sliding condition of the piston and the guide rod.
