Brake Pad Inspection

INSPECTION OF FRONT DISC BRAKE PAD

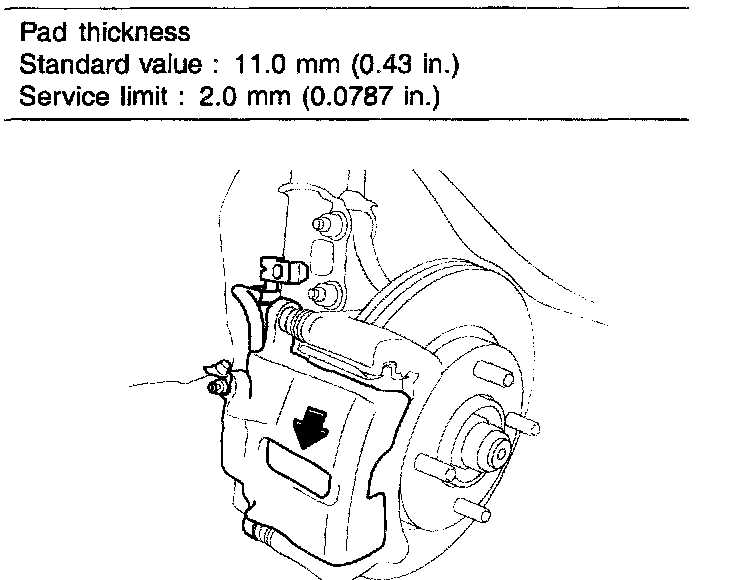

1. Check the brake pad thickness through the caliper body inspection hole.
Pad thickness
Standard value: 11.0 mm (0.43 inch)
Service limit: 2.0 mm (0.0787 inch)

CAUTION:
- If the pad lining thickness is out of specification, left and right pads must be replaced as a complete set.
- When the thickness difference between the left pad and right pad is large, check the sliding condition of the piston and the guide rod.
