7. Brake Warning Lamp Is Abnormal
7. Brake Warning Lamp Is Abnormal
7. BRAKE WARNING LAMP IS ABNORMAL

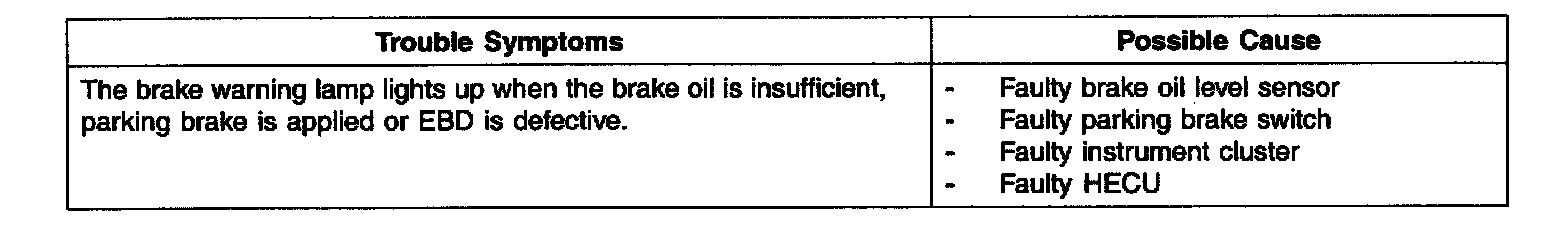

DETECTING CONDITION
Part 1:
Part 2:
Part 3:
Part 4:

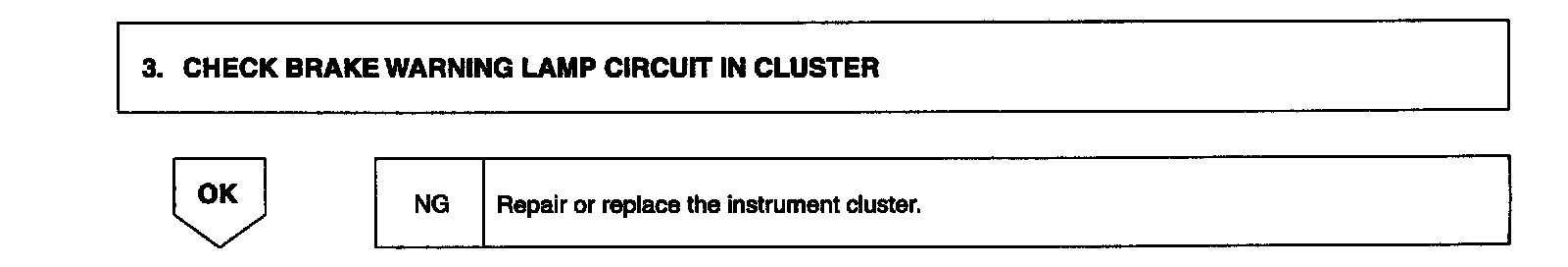

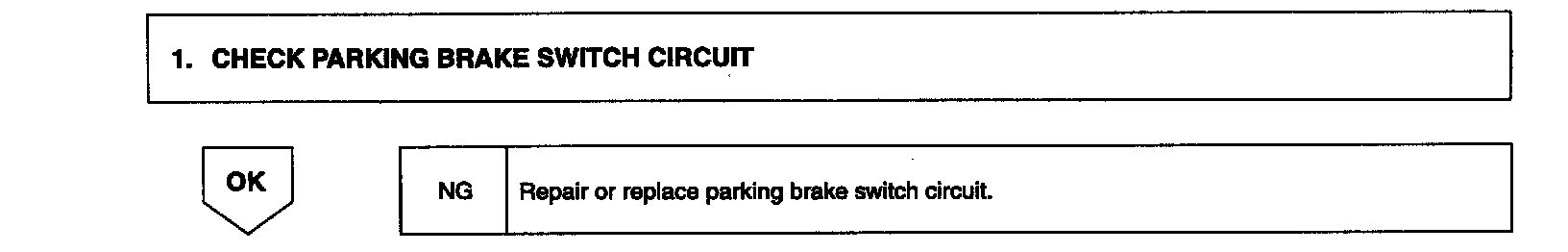

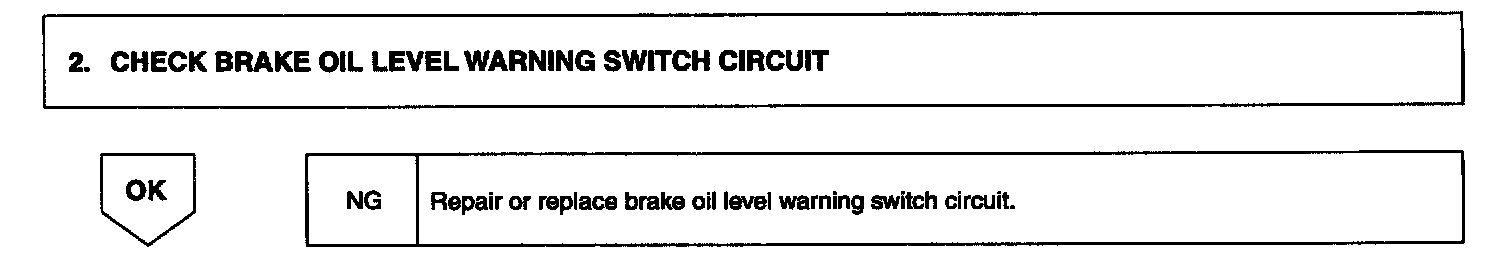

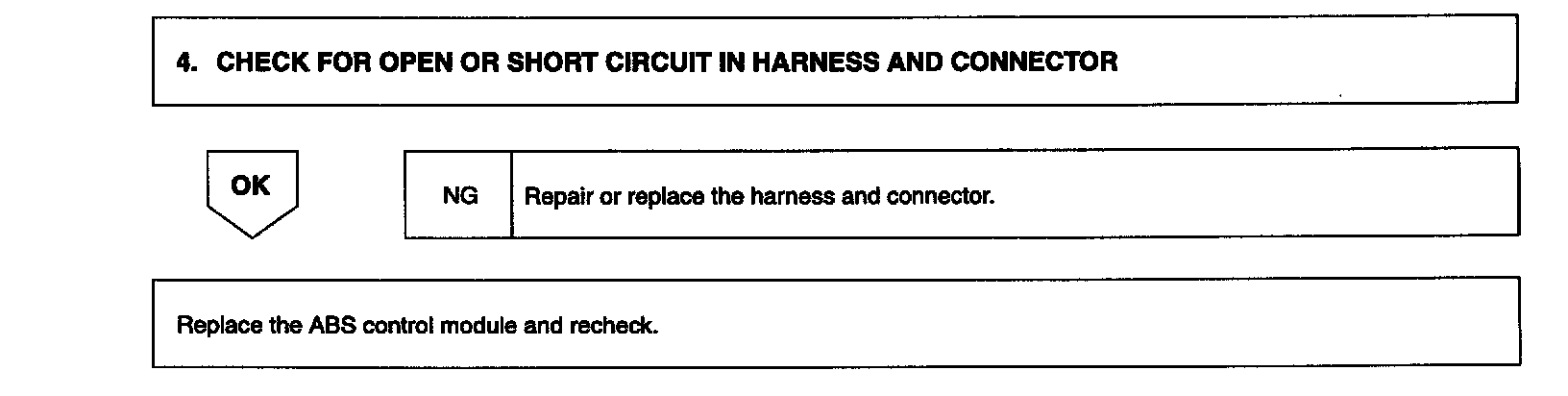

INSPECTION PROCEDURES
