6. Even After the Engine Is Started, ABS Warning Lamp Remains On

6. EVEN AFTER THE ENGINE IS STARTED, THE ABS WARNING LAMP REMAINS ON

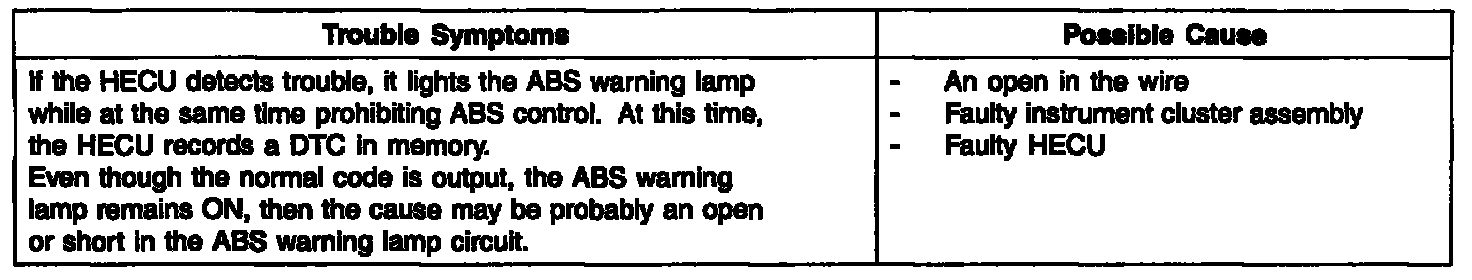

DETECTING CONDITION

Part 1:




Part 2:




Part 3:

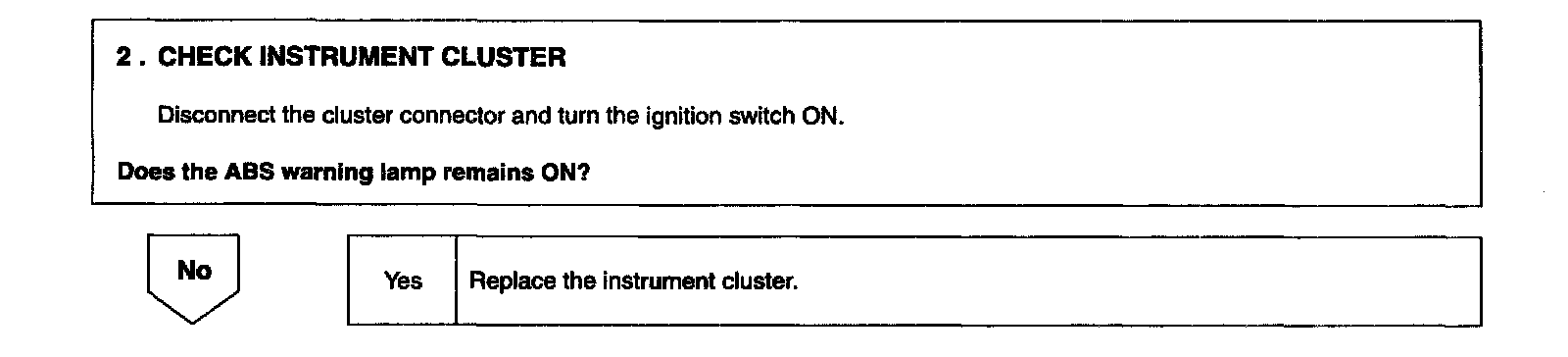

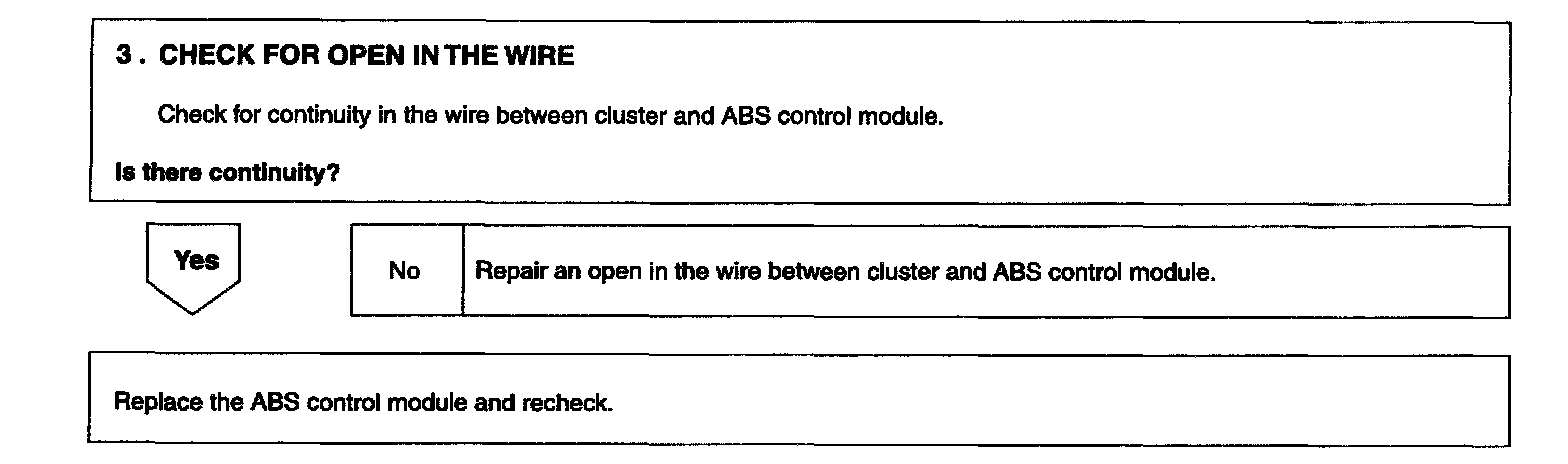

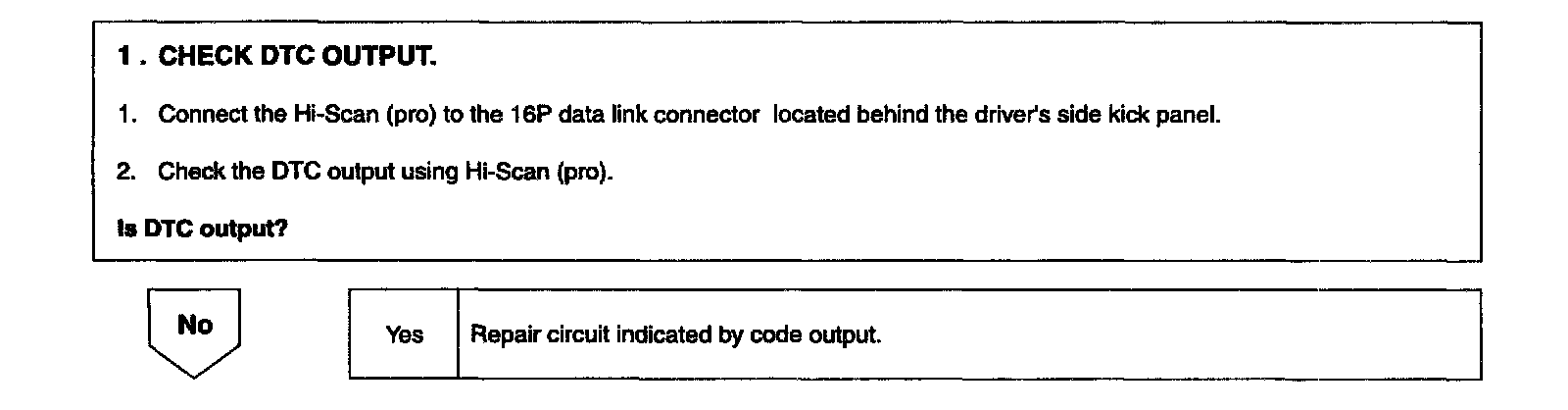

INSPECTION PROCEDURES
