5. When Ign. Key Is Turned On (Engine Off) No ABS Warning Lamp

5. WHEN IGNITION KEY IS TURNED ON (ENGINE OFF), THE ABS WARNING LAMP DOES NOT LIGHT UP

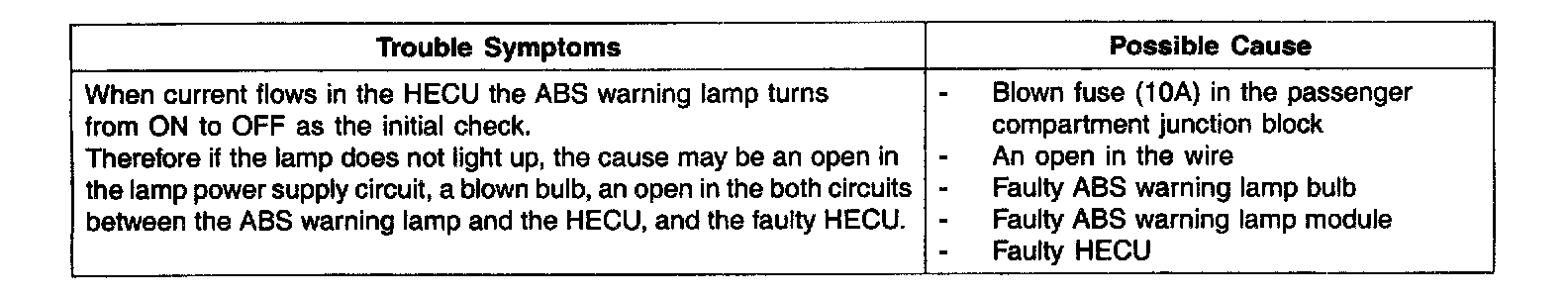

DETECTING CONDITION

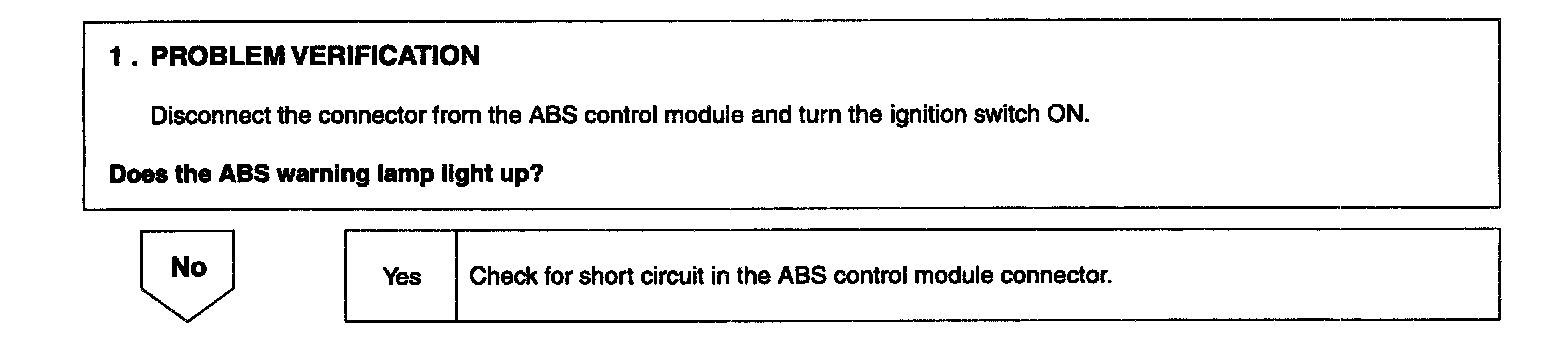

Part 1:

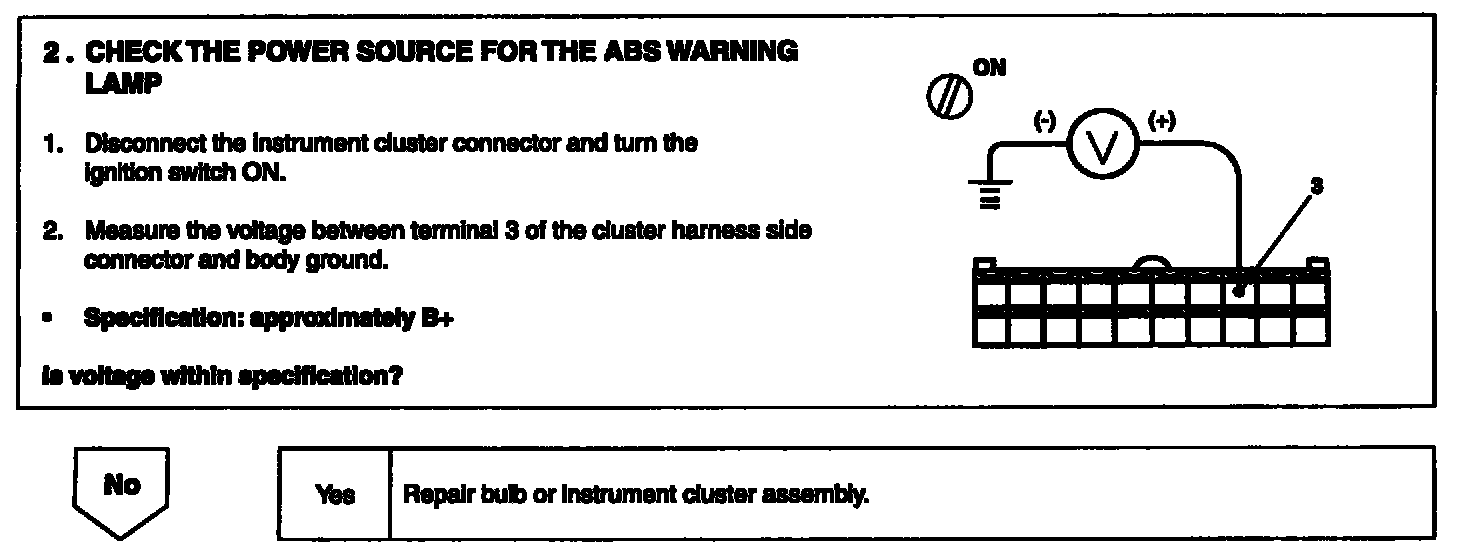

Part 2:

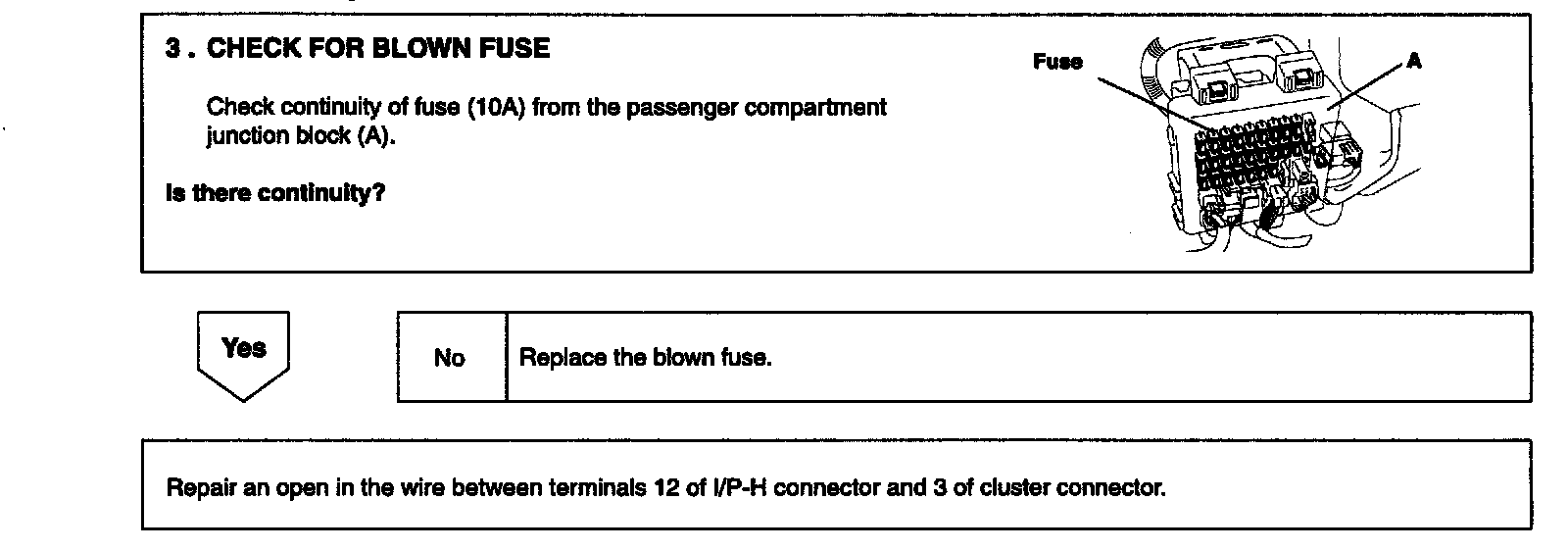

Part 3:





INSPECTION PROCEDURES
