Home >> Kia >> 2004 >> Spectra L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 4. Communication With Hi-Scan Isn't Possible With ABS Only

4. Communication With Hi-Scan Isn't Possible With ABS Only

4. COMMUNICATION WITH HI - SCAN (PRO) IS NOT POSSIBLE (COMMUNICATION WITH ABS ONLY IS NOT POSSIBLE)

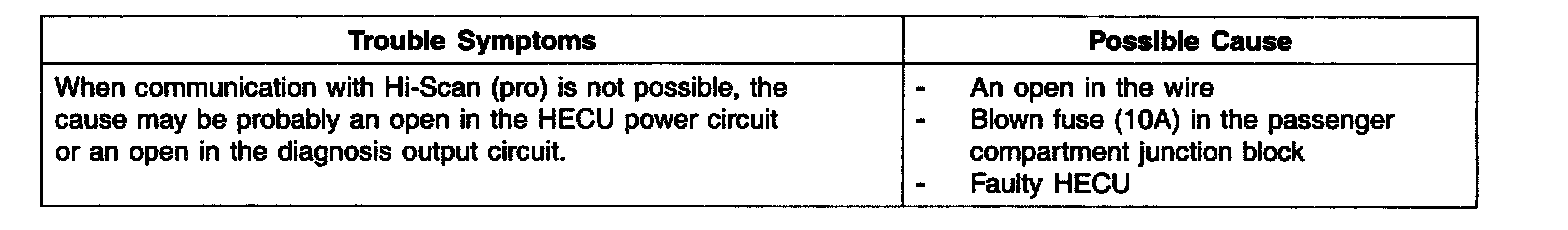

DETECTING CONDITION

Part 1:




Part 2:




Part 3:

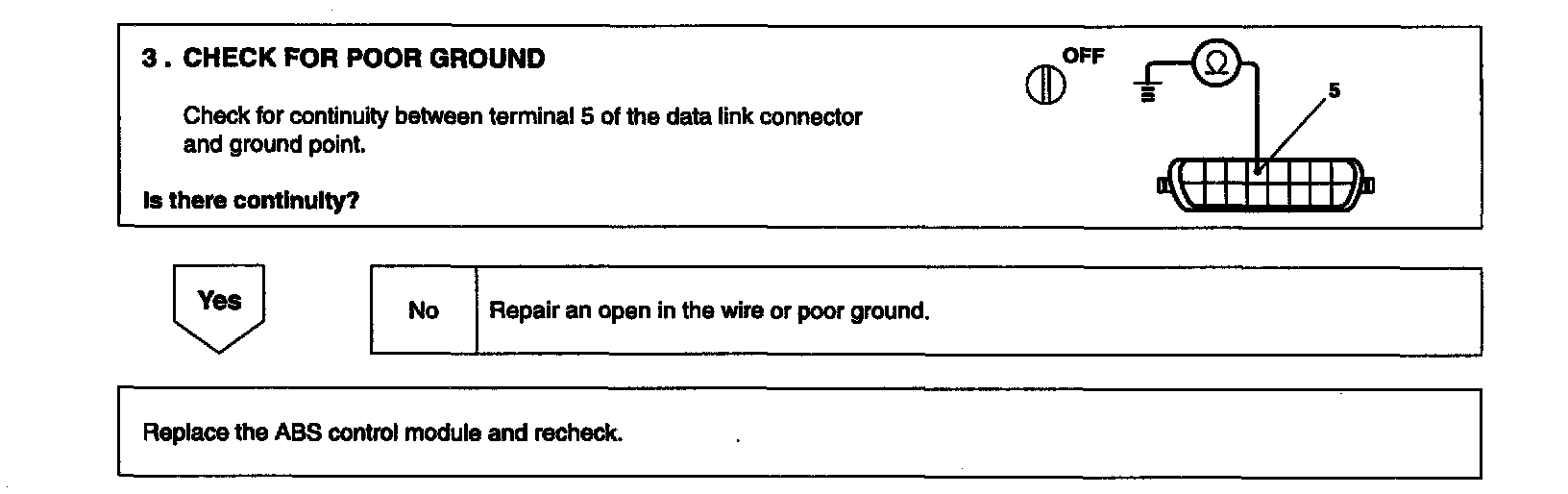

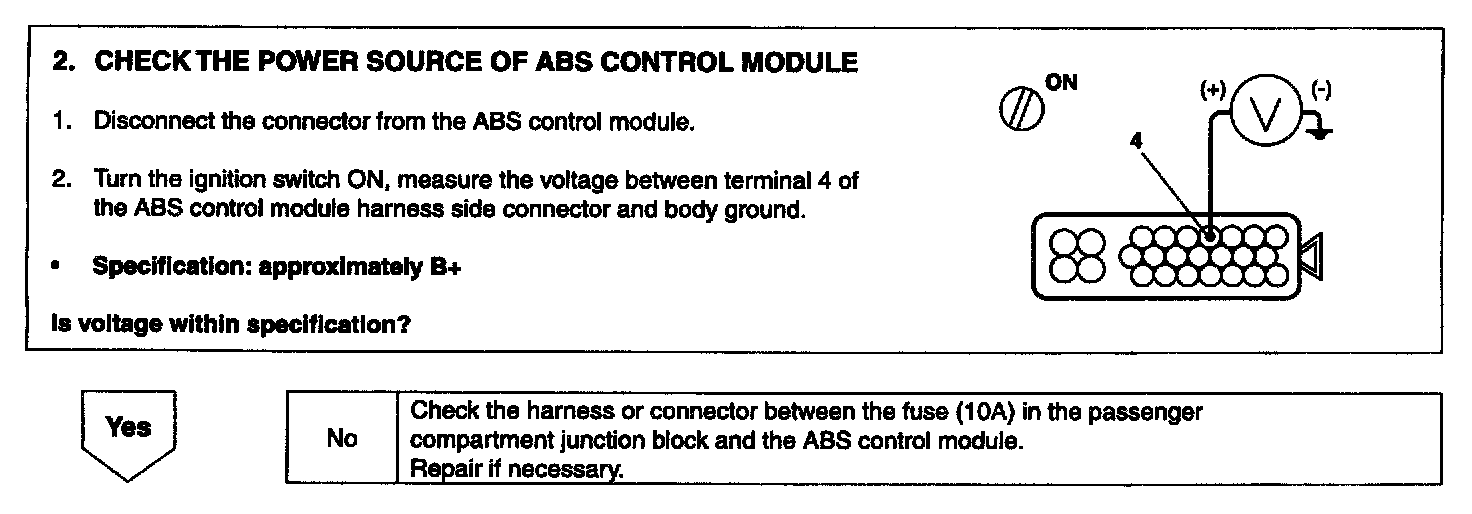

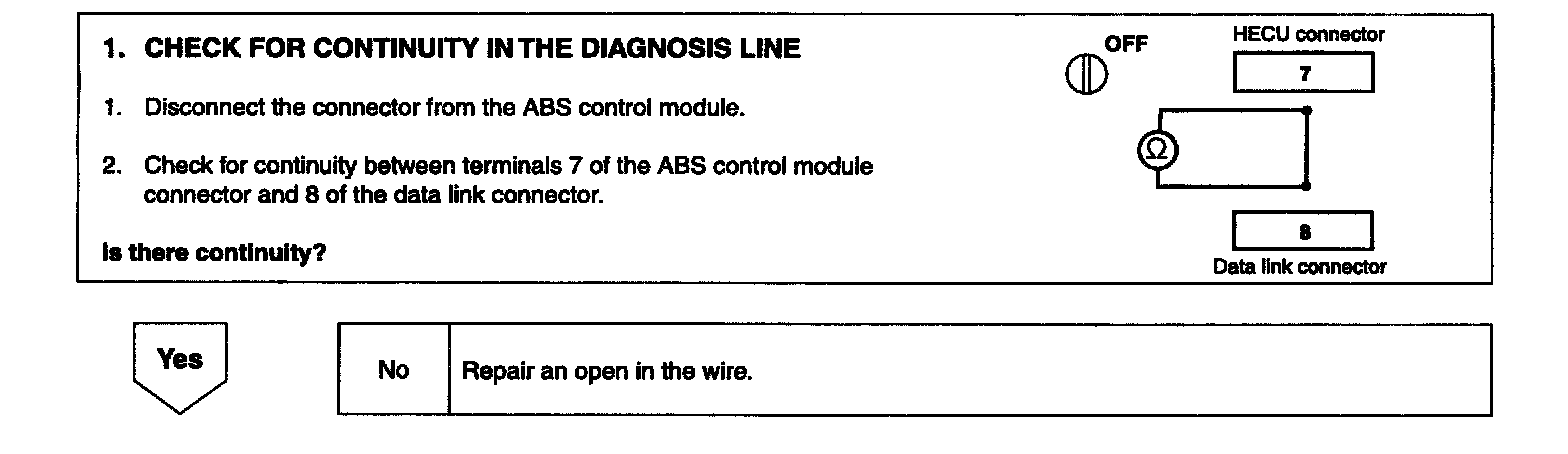

INSPECTION PROCEDURES
