3. Communication With Hi-Scan Isn't Possible With Any System

3. COMMUNICATION WITH HI - SCAN (PRO) IS NOT POSSIBLE (COMMUNICATION WITH ANY SYSTEM IS NOT POSSIBLE)

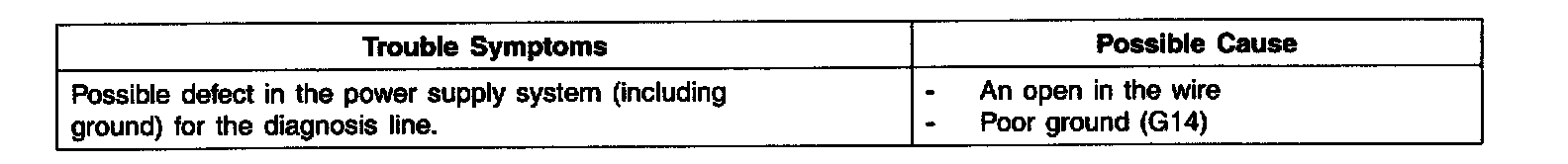

DETECTING CONDITION

Part 1:




Part 2:

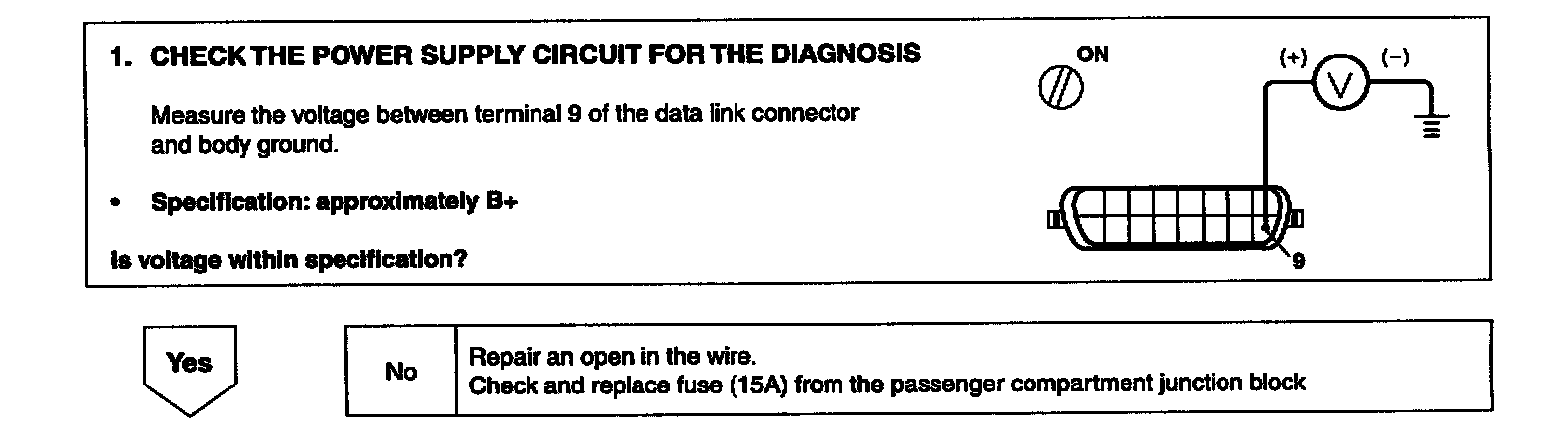

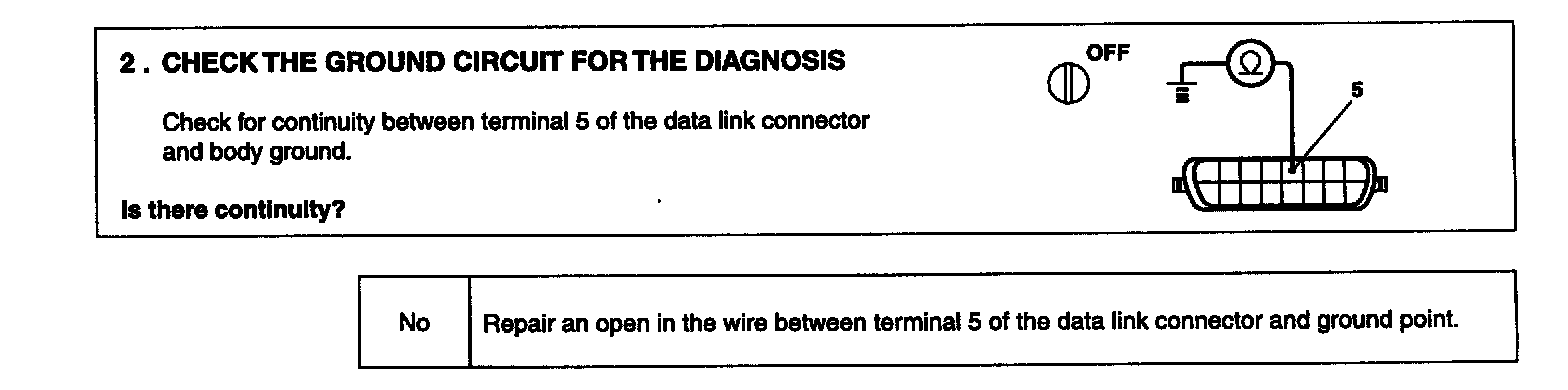

INSPECTION PROCEDURES
