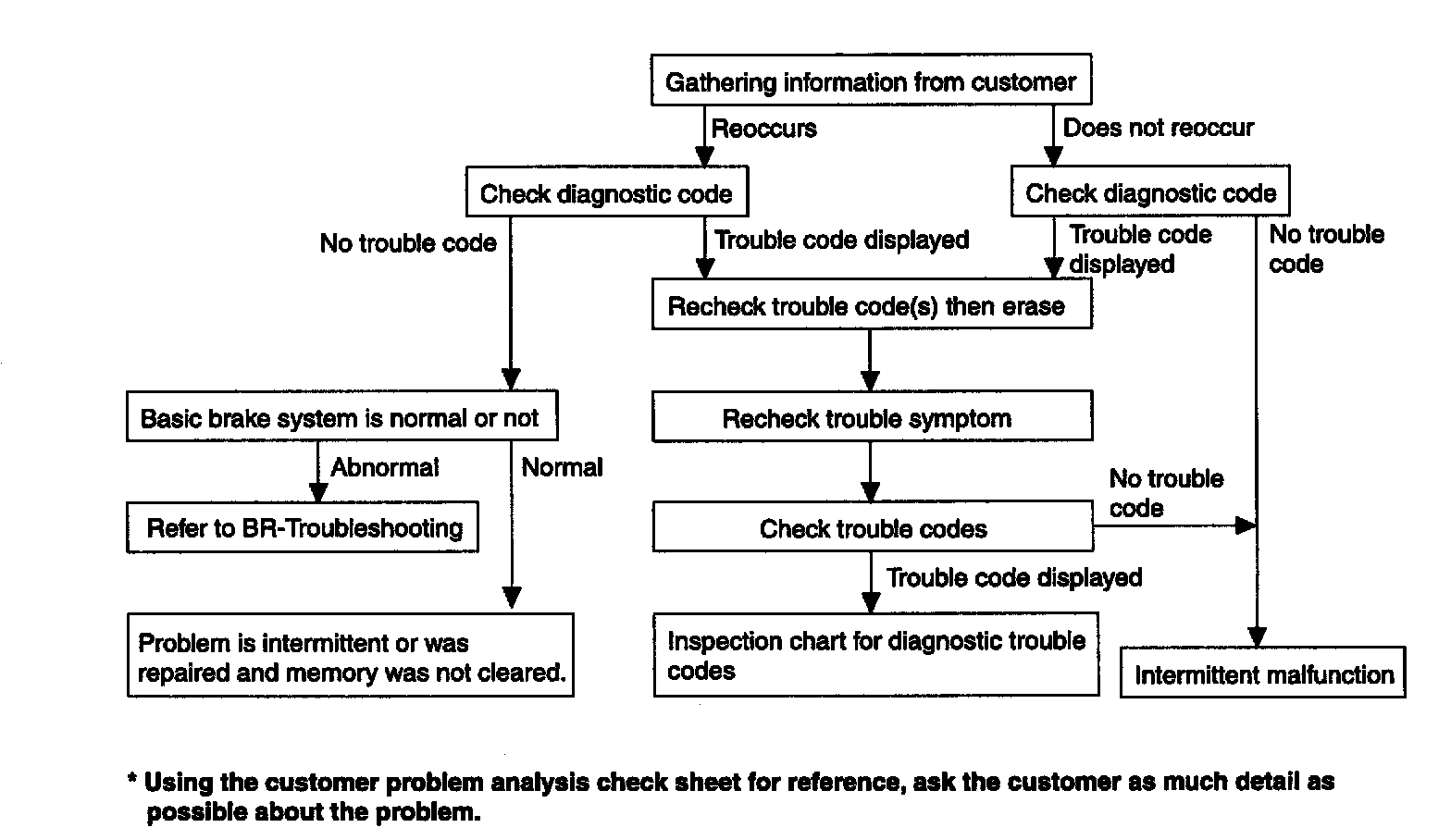

Standard Flow of Diagnostic Troubleshooting
STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTINGTROUBLESHOOTING:
- Using the customer problem analysis check sheet for reference, ask the customer as much detail as possible about the problem.
NOTES WITH REGARD TO DIAGNOSIS

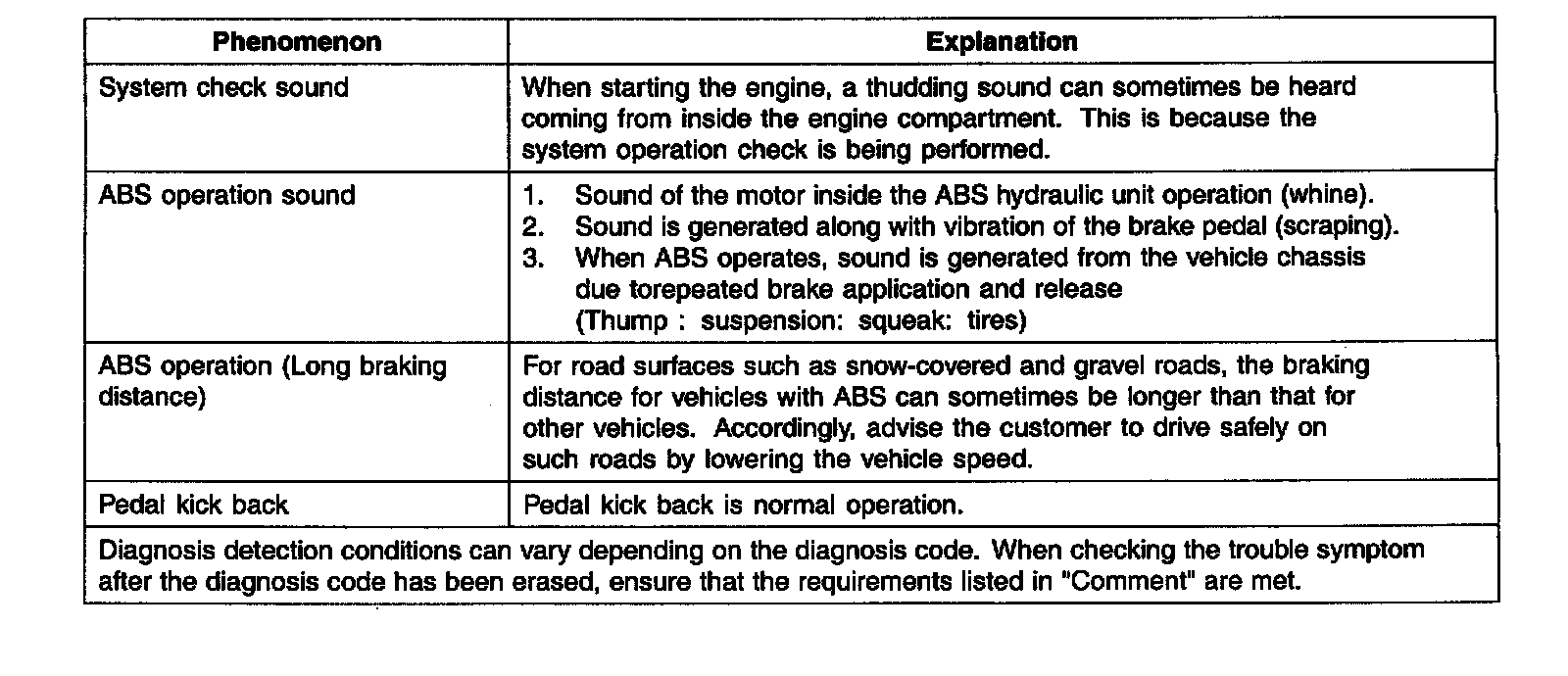

The phenomena listed in the following table are not abnormal.
