Home >> Kia >> 2004 >> Spectra L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Description and Operation >> EBD (Electronic Brake-Force Distribution) >> Comparison Between Proportioning Valve and EBD Fail Safe

Comparison Between Proportioning Valve and EBD Fail Safe

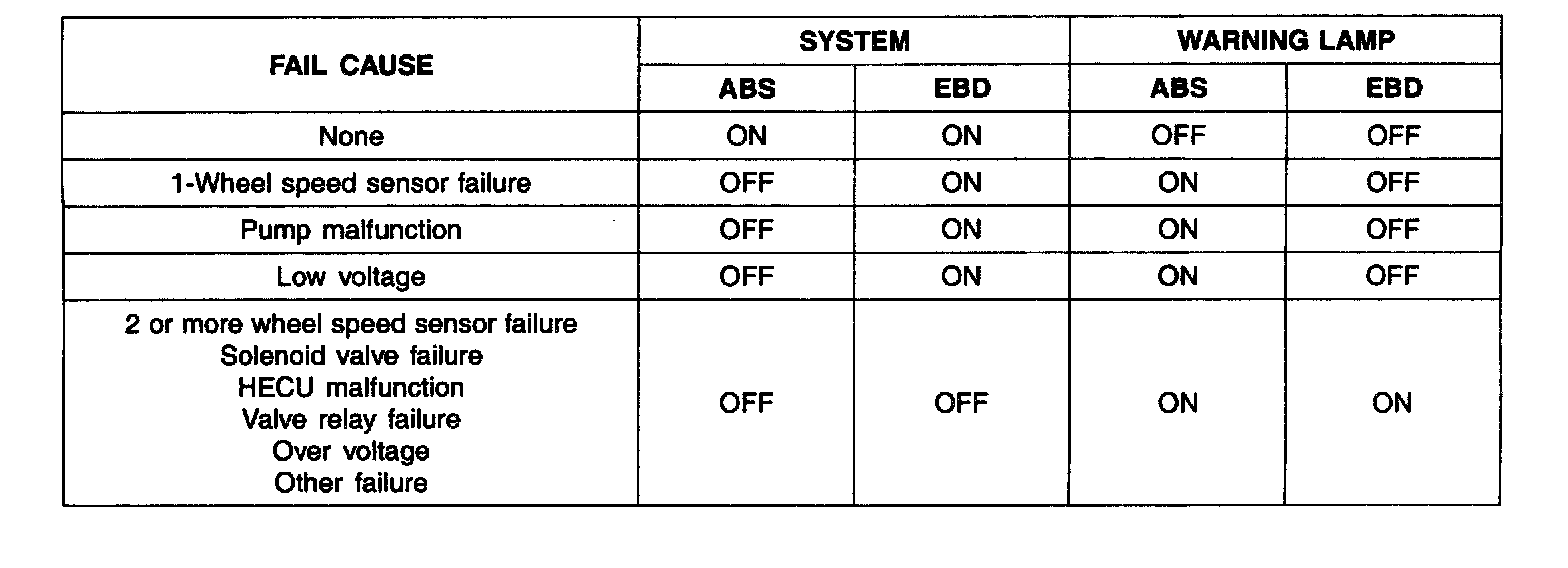

Part 1 Of 2:

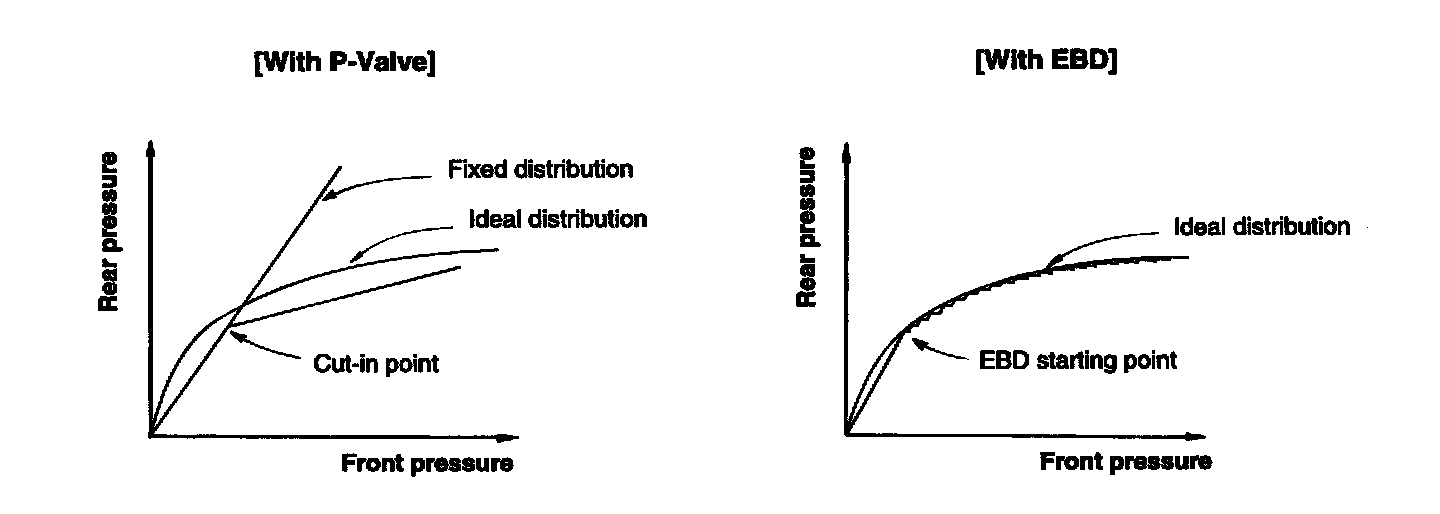

Part 2 Of 2:
