Body and Frame: Specifications

GENERAL SPECIFICATIONS

Hood

Type Rear hinged, front opening type (open stay rod type)

Front door

Construction Front hinged, full door construction
Regulator system X-arm type

Rear door

Construction Front hinged, full door construction
Regulator system X-arm type

Trunk lid

Type Torsion bar type

Glass thickness

Windshield glass 5.0mm
Front door glass 3.2mm
Rear door glass 3.2mm
Rear window glass 3.5mm

Seat belts

Driver's seat 3 point type

Front passenger seat & Rear seats (LH/RH) 3 point type

Rear seat (center) Fixed 2 point type

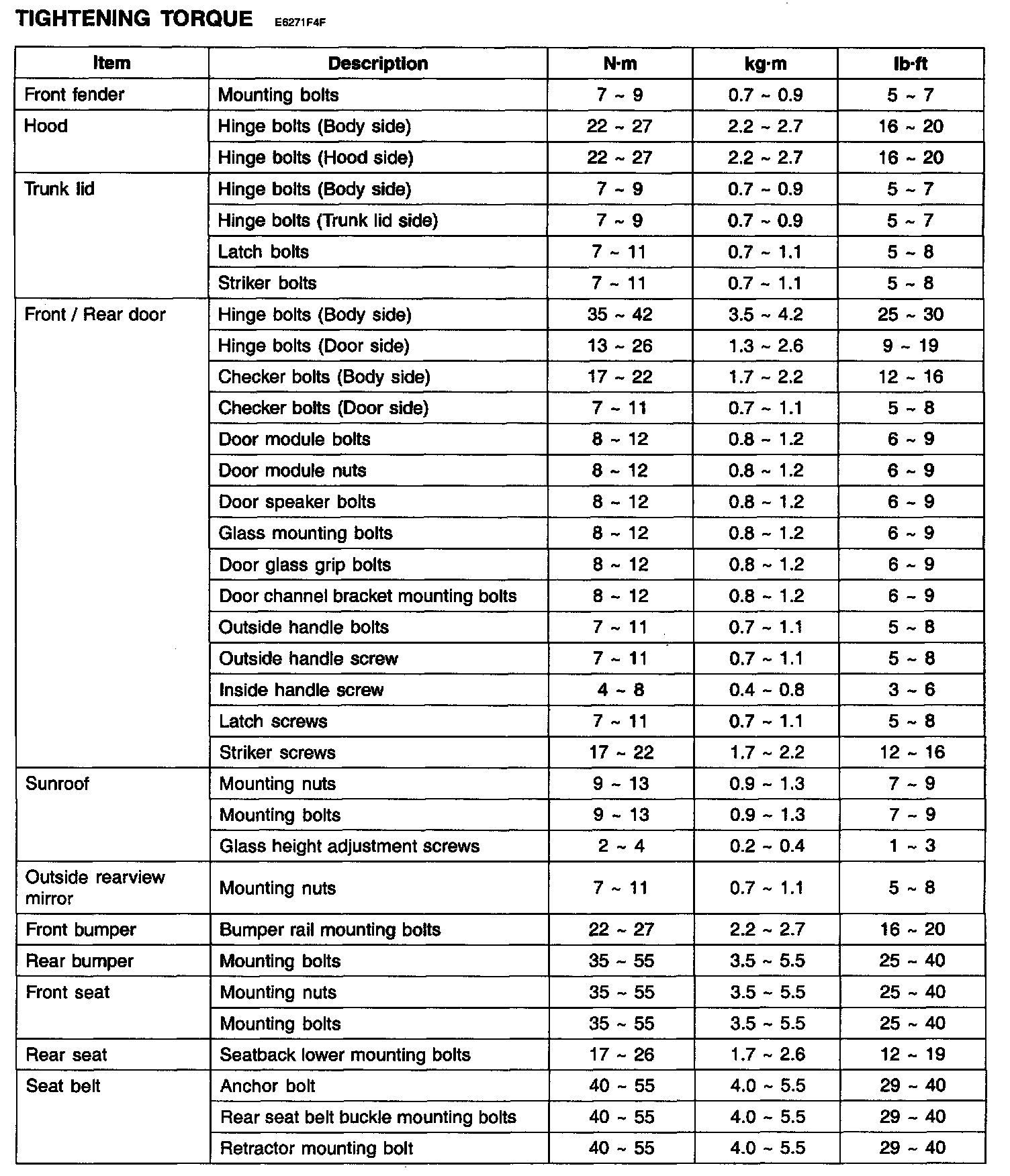

Tightening Torque:

Tightening Torque
