Trunk Lid Opener Switch

TRUNK LID OPENER SWITCH

INSPECTION

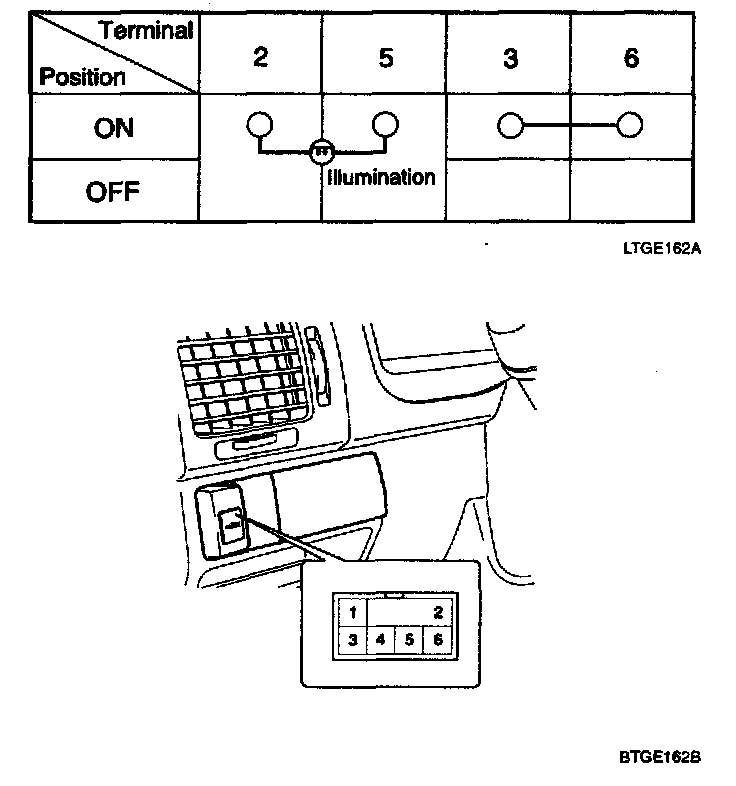

1. Check the switch for continuity between the terminals.
2. If the continuity is not as specified, replace the switch.
