Power Mirror Switch: Service and Repair
REMOVAL
1.
Remove the front door trim panel.
2.

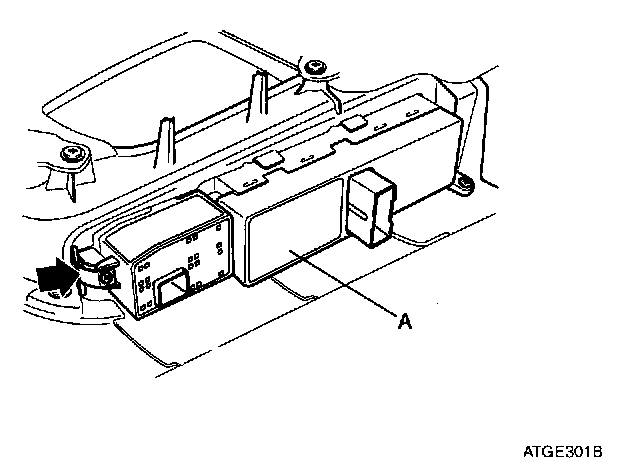

Remove the power window main switch (A) by pushing the mounting clip of the power window main switch.
