Rear Seats

REMOVAL AND INSTALLATION

1. Remove rear seat cushion.

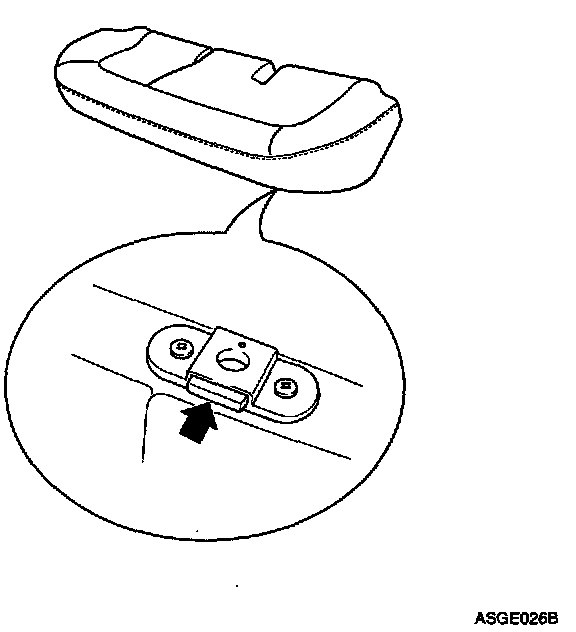

1. Release seat cushion stopper.
2. Remove seat cushion.

2. Remove rear seatback.

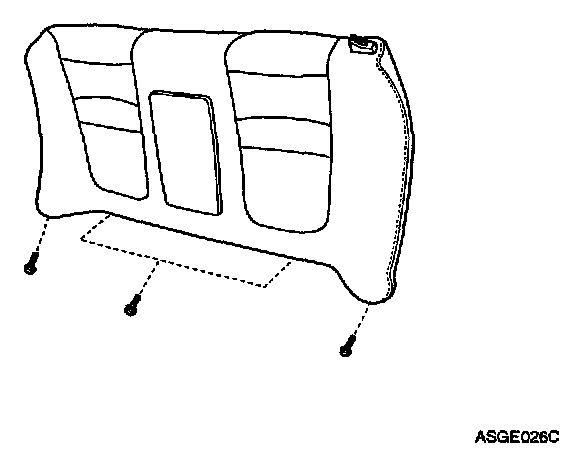

1. Remove bolts(4).

Tightening torque : 17 - 26 Nm (1.7-2.6 kg.m, 12-19 lb.ft)

2. Remove seat belt from belt guide.

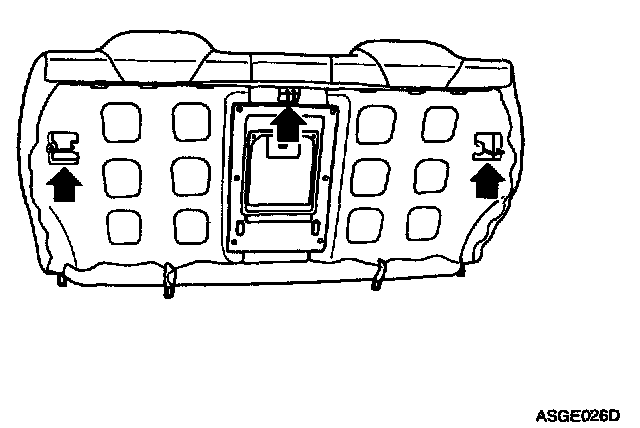

3. Release seatback stopper, and then remove seatback.

3. Install in reverse order of removal.
