Front Seats

REMOVAL AND INSTALLATION

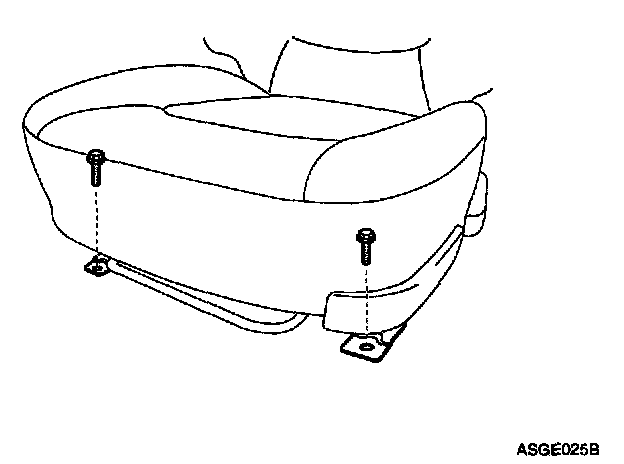

1. Remove seat front mounting bolts(2).

Tightening torque : 40 - 55 Nm (4.0 - 5.5 kg.m, 29 - 40 lb.ft)

2. Remove seat mounting bracket covers(2).

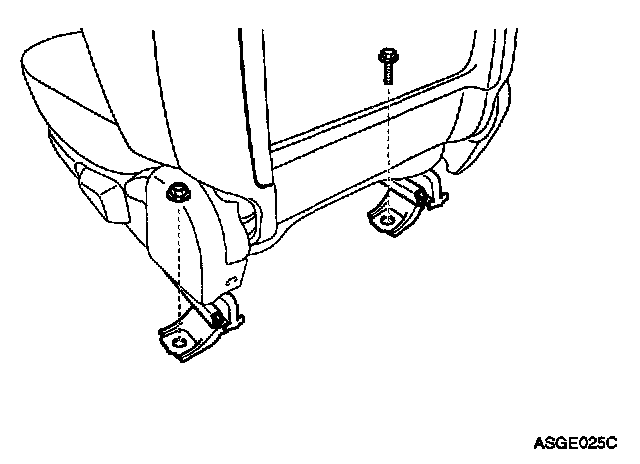

3. Remove seat rear mounting bolt and nut.

Tightening torque : 40 - 55 Nm (4.0 - 5.5 kg.m, 29 - 40 lb.ft)

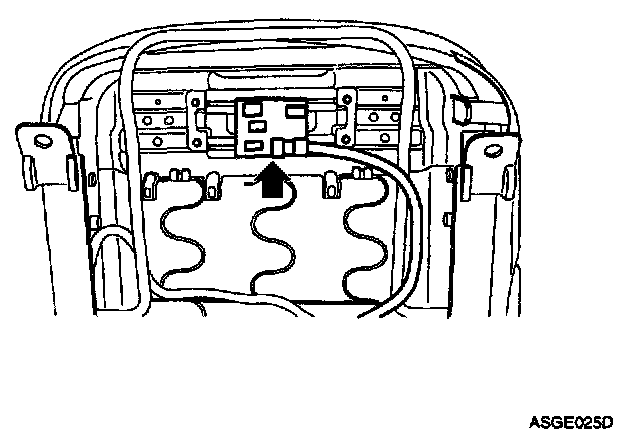

4. Disconnect connector from bottom of seat.

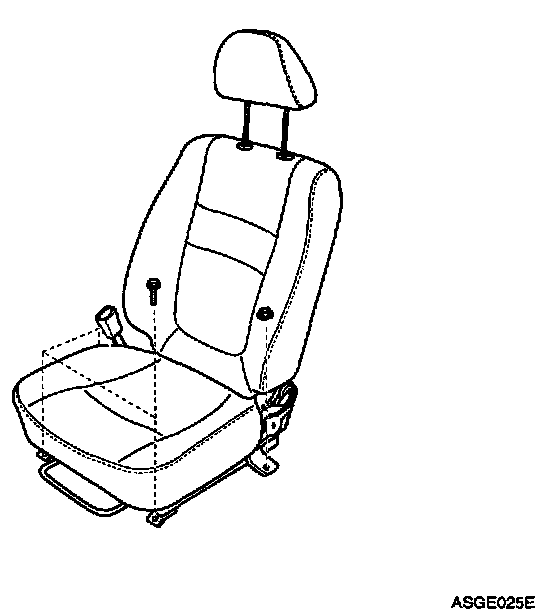

5. Remove seat.
6. Install in reverse order of removal.
