Sunroof / Moonroof Motor: Testing and Inspection
INSPECTION1. Disconnect the negative (-) battery terminal

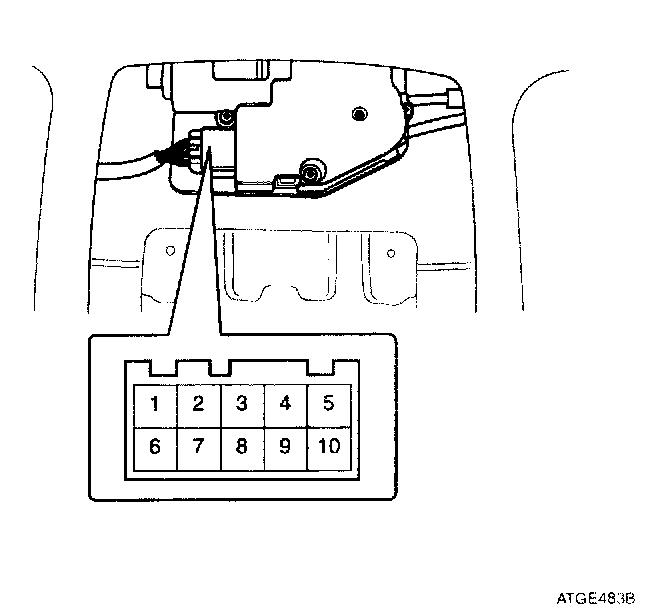

2. Apply the battery voltage to terminal 3, 6 and ground the terminal 1.

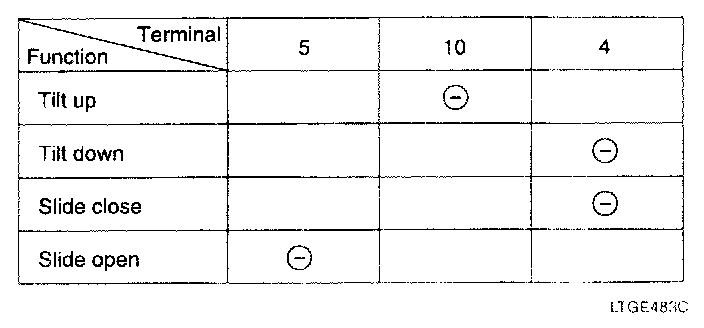

3. Ground the terminals as below table, and check that the sunroof unit operates as below table.
RESETTING THE SUNROOF
When your battery happens to be disconnected or discharged, or you use the emergency handle to operate the sunroof you have to reset your sunroof system as follows:
1. Turn the ignition key to the ON position
2. In tilt-up position, press the tilt up switch for 3-5 seconds, the slider must be moved 5mm forward and returned original position, then release the switch and let it memorize the initial value of the motor
3. In above state press the tilt up switch once again and hold on until the sun roof system is reset completely by automatically performing the following: "Tilt down", "Slide open", "Slide close"
