Sunroof / Moonroof Motor: Service and Repair

SUN ROOF MOTOR

REMOVAL

1. Disconnect the negative (-) battery terminal.

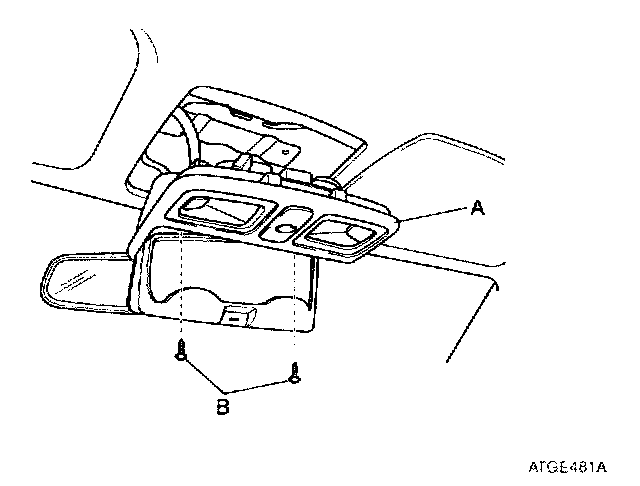

2. Open the sunglass case from the overhead con-sole(A) then remove the 2 screws(B) holding the overhead console Disconnect the 6P connector then remove the overhead console lamp assembly from the headliner.
3. Remove the head lining.

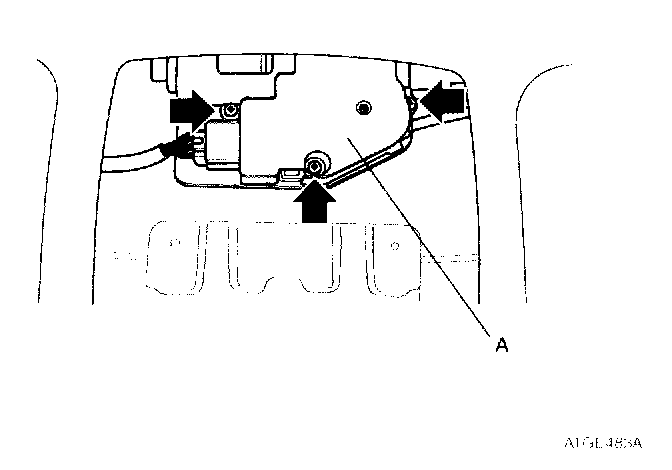

4. Remove the sun roof motor (A) after removing 3 screws and disconnect.
