Sunroof / Moonroof: Adjustments

ADJUSTMENT

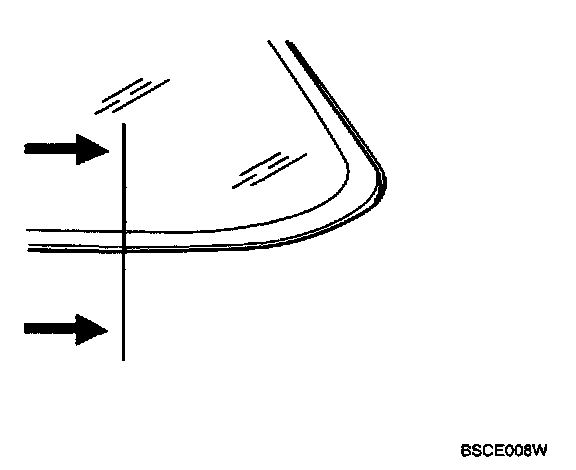

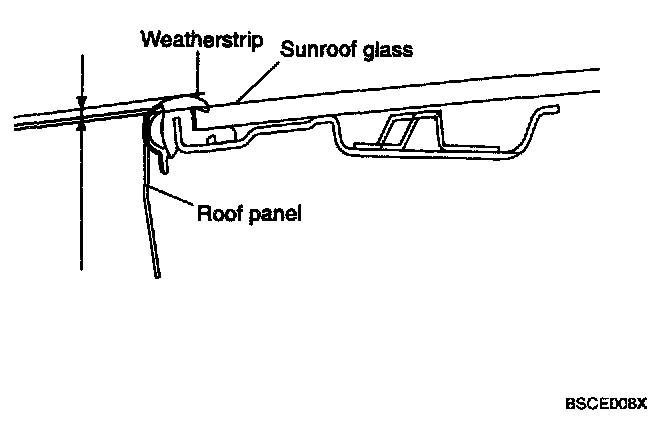

Adjust the difference between the height of glass weather strip and roof panel.

Front side : 0 - 1.4 mm
Rear side : 1.0 - 1.4 mm

If the difference is not as specified, adjust using the following procedure.

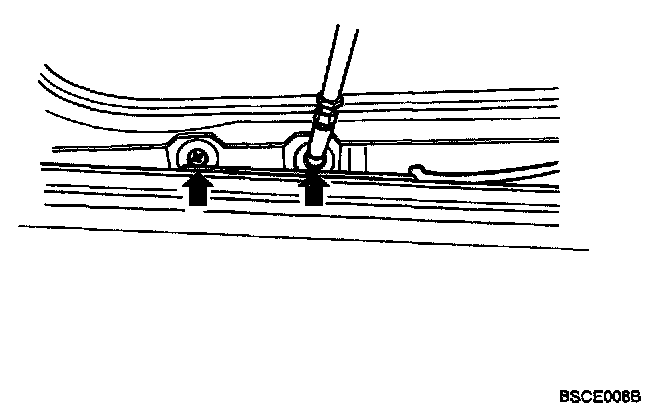

1. Loosen the front screw and rear screw. Adjust the height between the glass panel and roof panel.
