Center Pillar Lower Trim

CENTER PILLAR LOWER TRIM

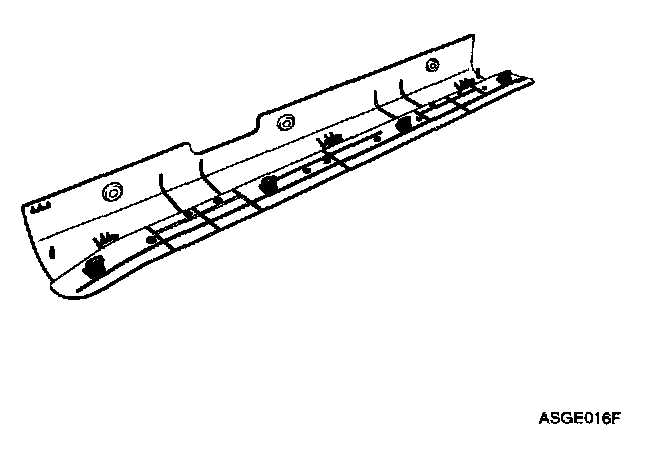

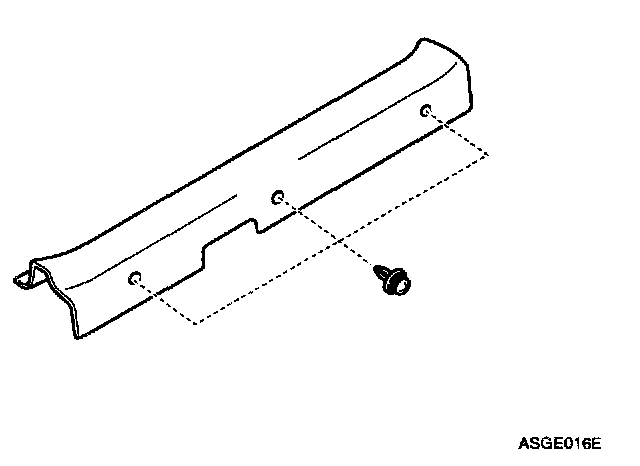

1. Remove front door scuff trim.

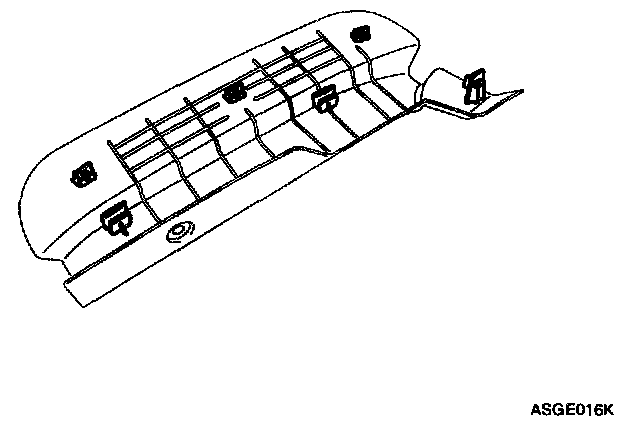

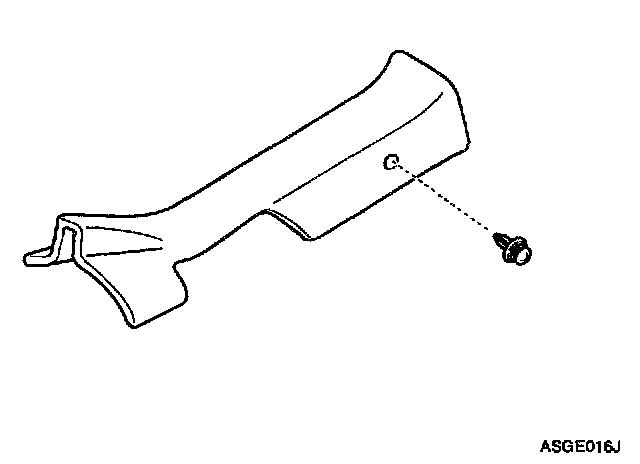

2. Remove rear door scuff trim.

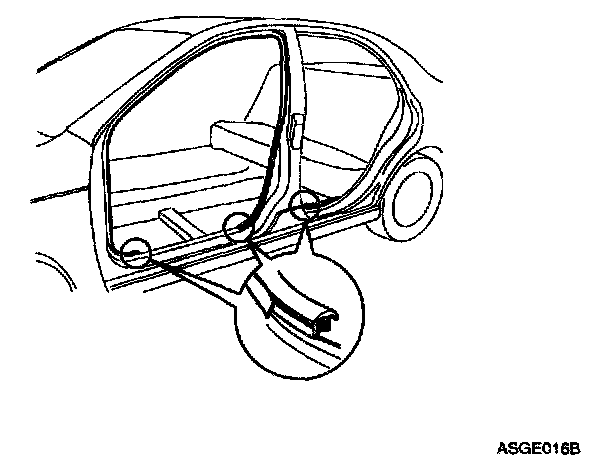

3. Remove body side weatherstrip.

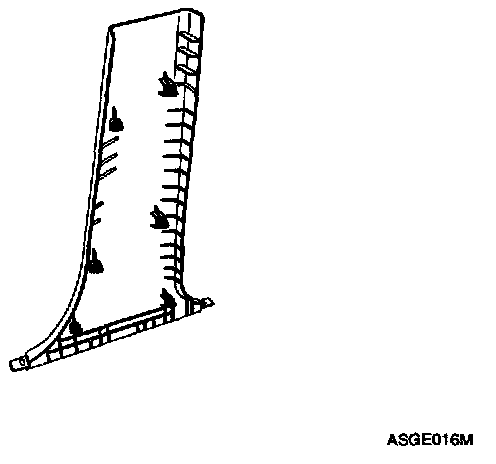

4. Remove center pillar lower trim.
5. Install in reverse order of removal.
