Trunk / Liftgate Hinge: Adjustments

ADJUSTMENT

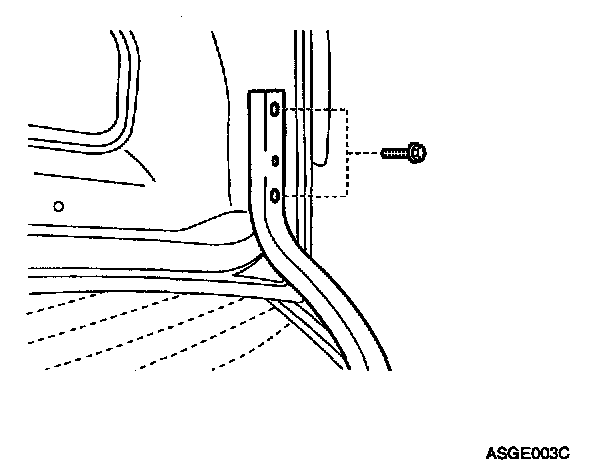

TRUNK LID HINGE




1. Check that the trunk lid can be closed easily and properly. If there is a problem, open the trunk lid and tighten the trunk lid hinge mounting bolts.

Tightening torque 7 - 9 Nm (0.7 - O.9 kg.m, 5 - 7 lb.ft)

2. To adjust the trunk lid-to-body offset, loosen the trunk lid hinge mounting bolts and make the adjustment.
