Trunk / Liftgate: Service and Repair

TRUNK LID PANEL

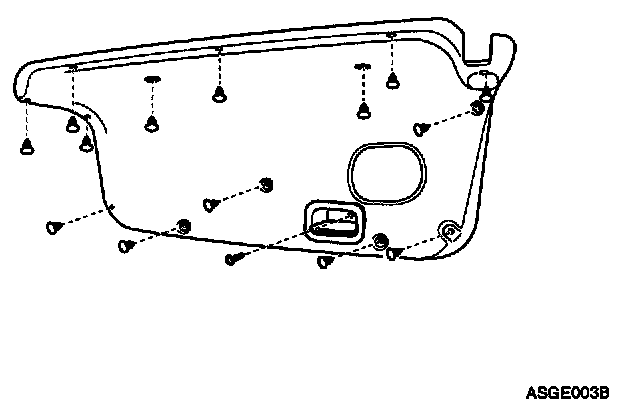

1. Remove trunk lid trim.
1. Remove fasteners(14).
2. Remove pull handle screw.
3. Remove trunk lid trim.

2. Remove trunk lid wire harness.
1. Disconnect trunk lid electrical connector.
2. Remove trunk lid wire harness.

3. Remove trunk lid.

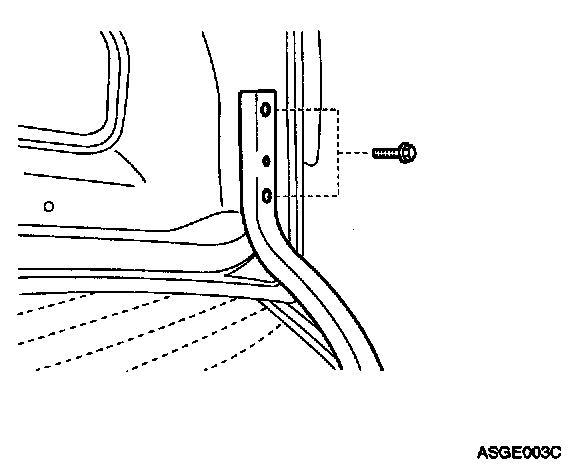

1. Remove trunk lid mounting bolts(4) (LH/RH).




2. Remove trunk lid panel.

4. Install in reverse order of removal.
