Hood Latch: Adjustments

HOOD LATCH

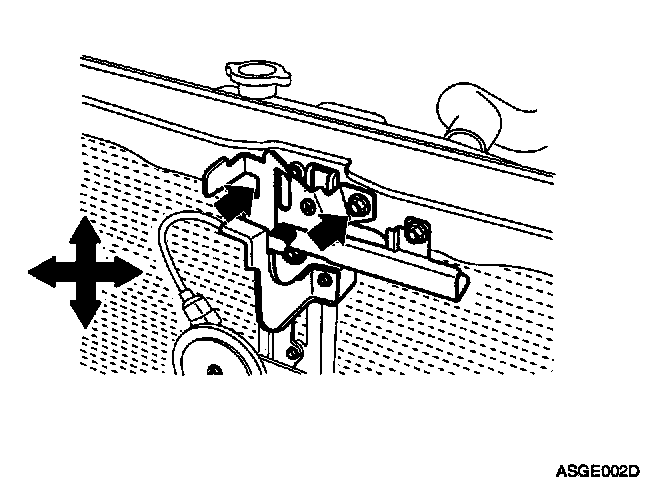

1. Check that the hood can be closed easily and properly. If there is a problem, loosen the latch mounting bolts and adjust the hood by moving the latch vertically or horizontally.

Tightening torque : 7-11 Nm (0.7-1.1 kg.m, 5-8 lb.ft)

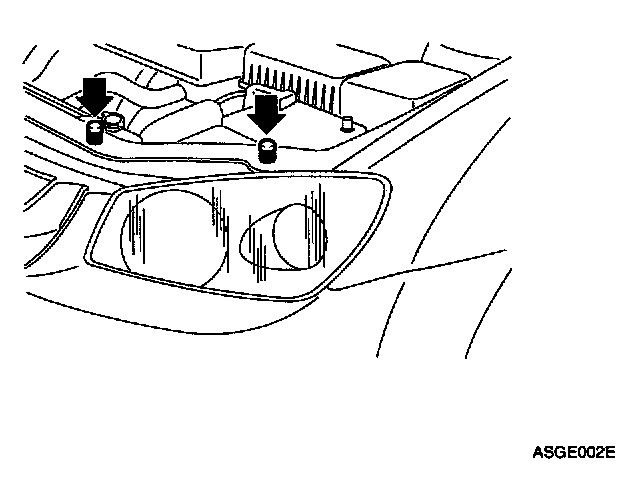

2. Adjust the front offset of the hood to the body by moving the hood over slam bumper vertically.
