Front Door Striker: Adjustments

DOOR STRIKER

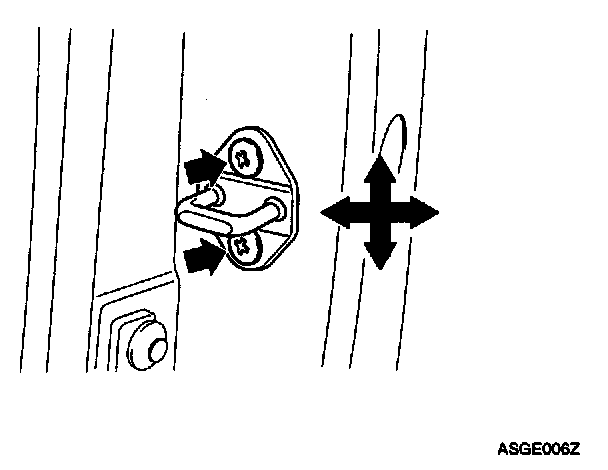

1. Check that the door can be closed easily and properly. If there is a problem, loosen the striker mounting bolts and adjust the door by moving the striker vertically or horizontally.

Tightening torque : 17 - 22 Nm (1.7 - 2.2 kg.m, 12-16 lb.ft)

2. Adjust the rear offset of the door to the body by moving the trunk lid striker horizontally.
