Tape Player: Service and Repair

REMOVAL AND INSTALLATION

1. Disconnect the negative (-) battery terminal.

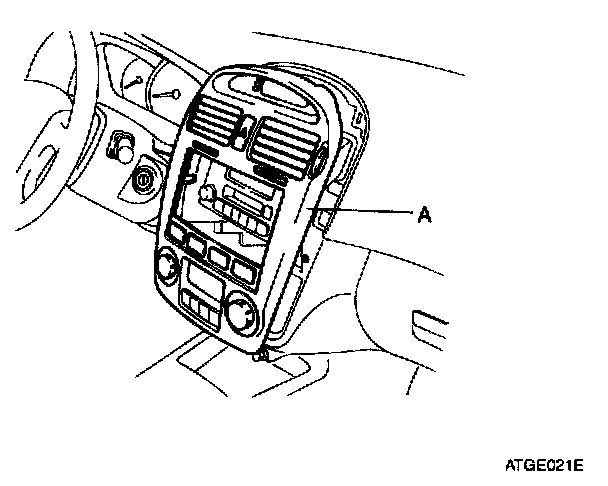

2. Remove the center facia panel (A) by pulling it.
3. Remove the connectors.

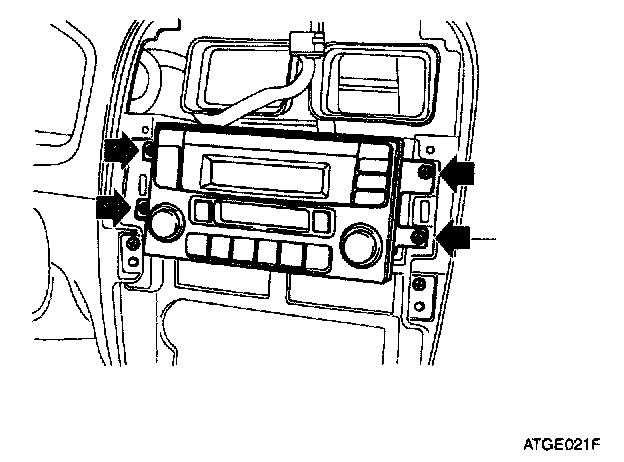

4. Remove the mounting screws then remove the audio unit assembly.
5. Installation is the reverse of removal.
