Home >> Kia >> 2004 >> Spectra L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Locations

Radio, Stereo, and Compact Disc: Locations

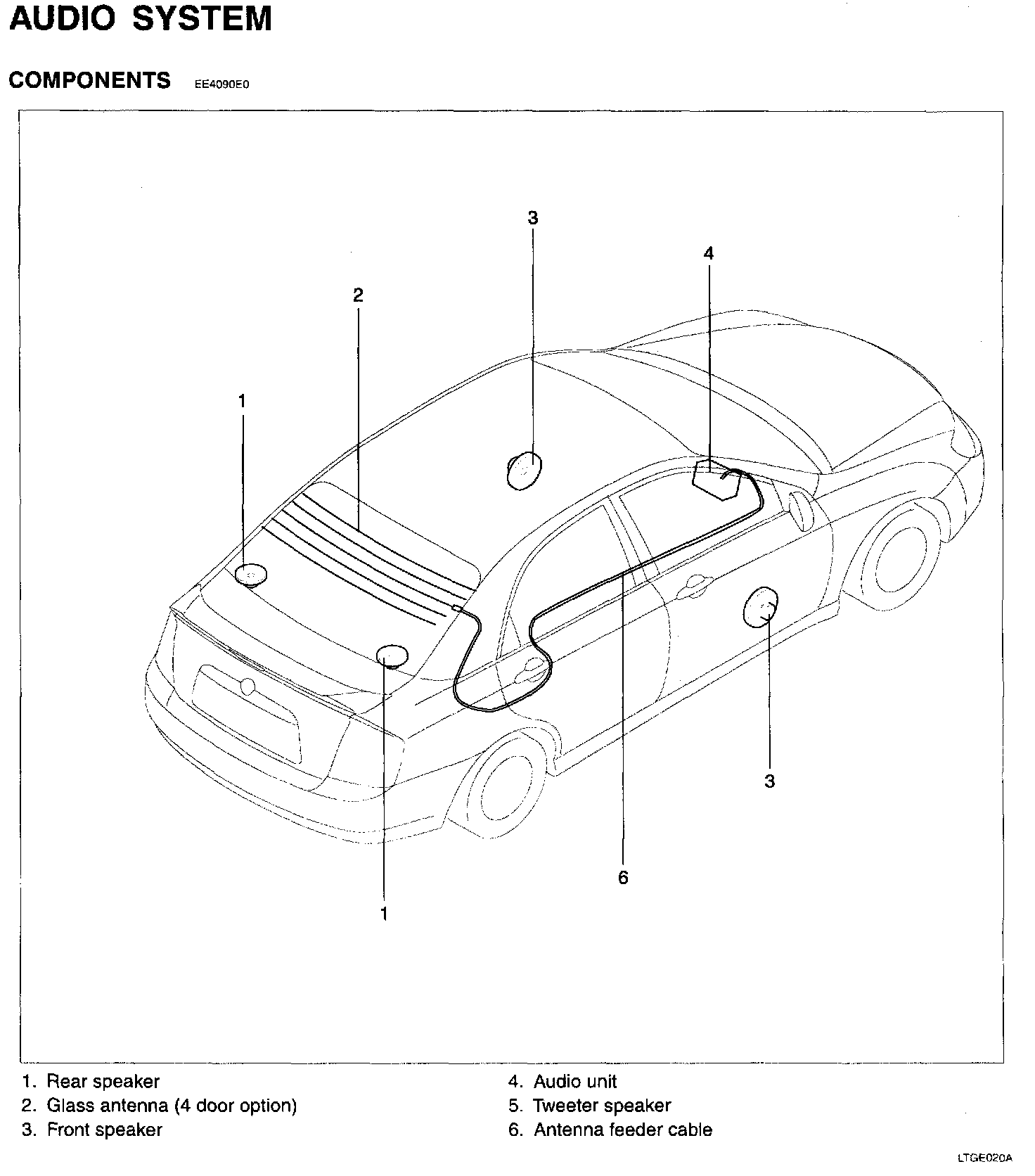

Audio System - Components:

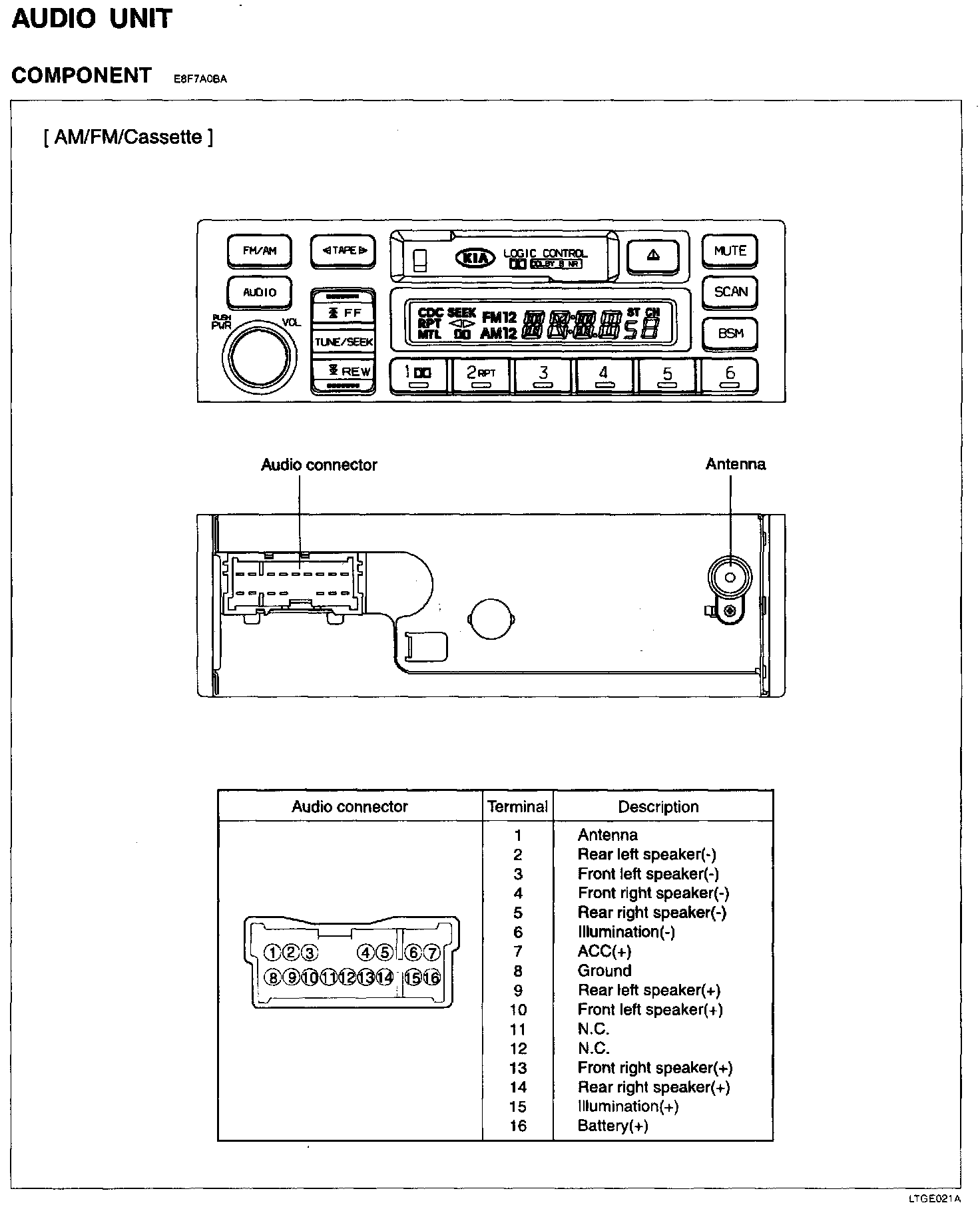

Audio Unit - Component, Part 1:

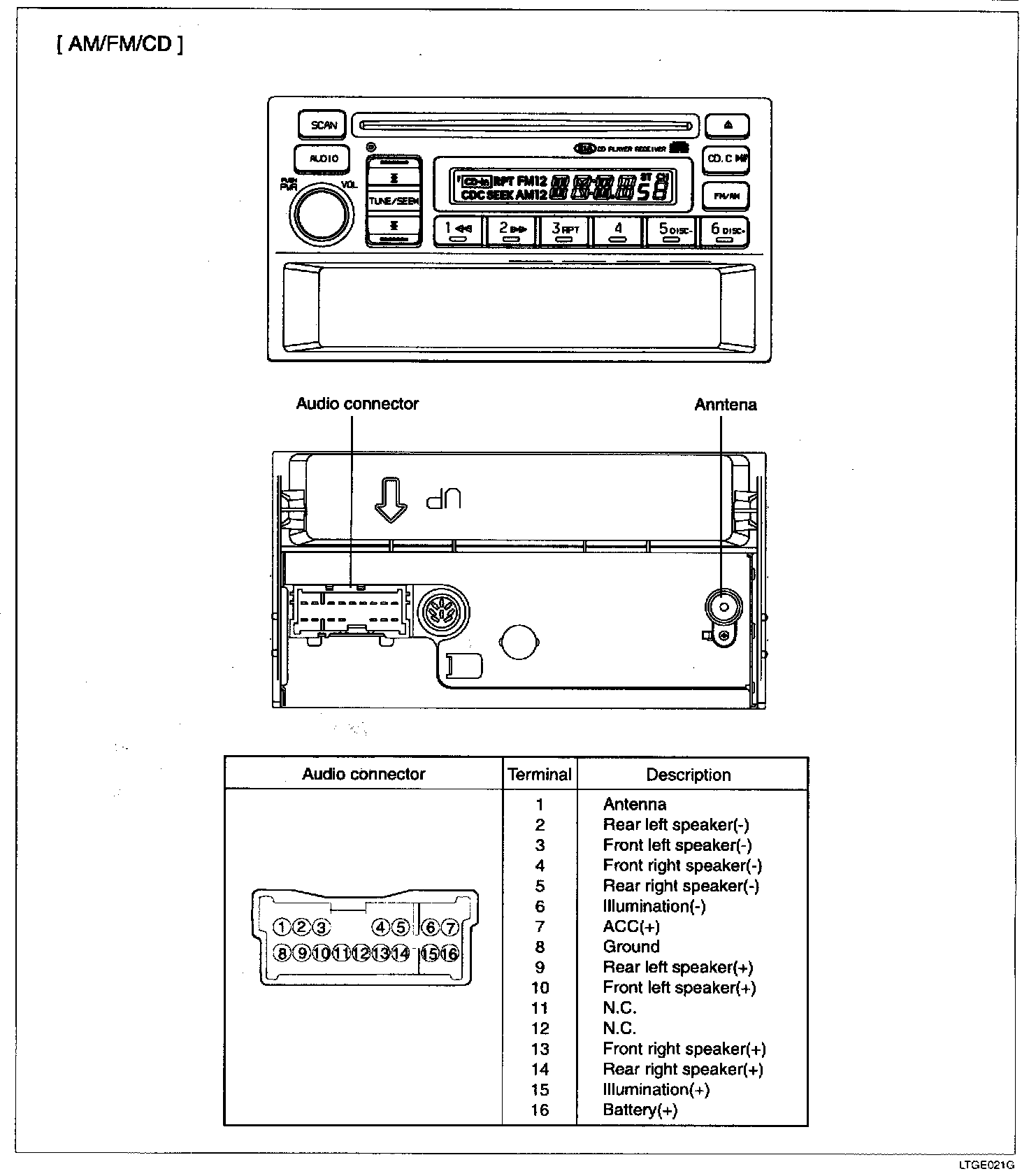

Audio Unit - Component, Part 2:

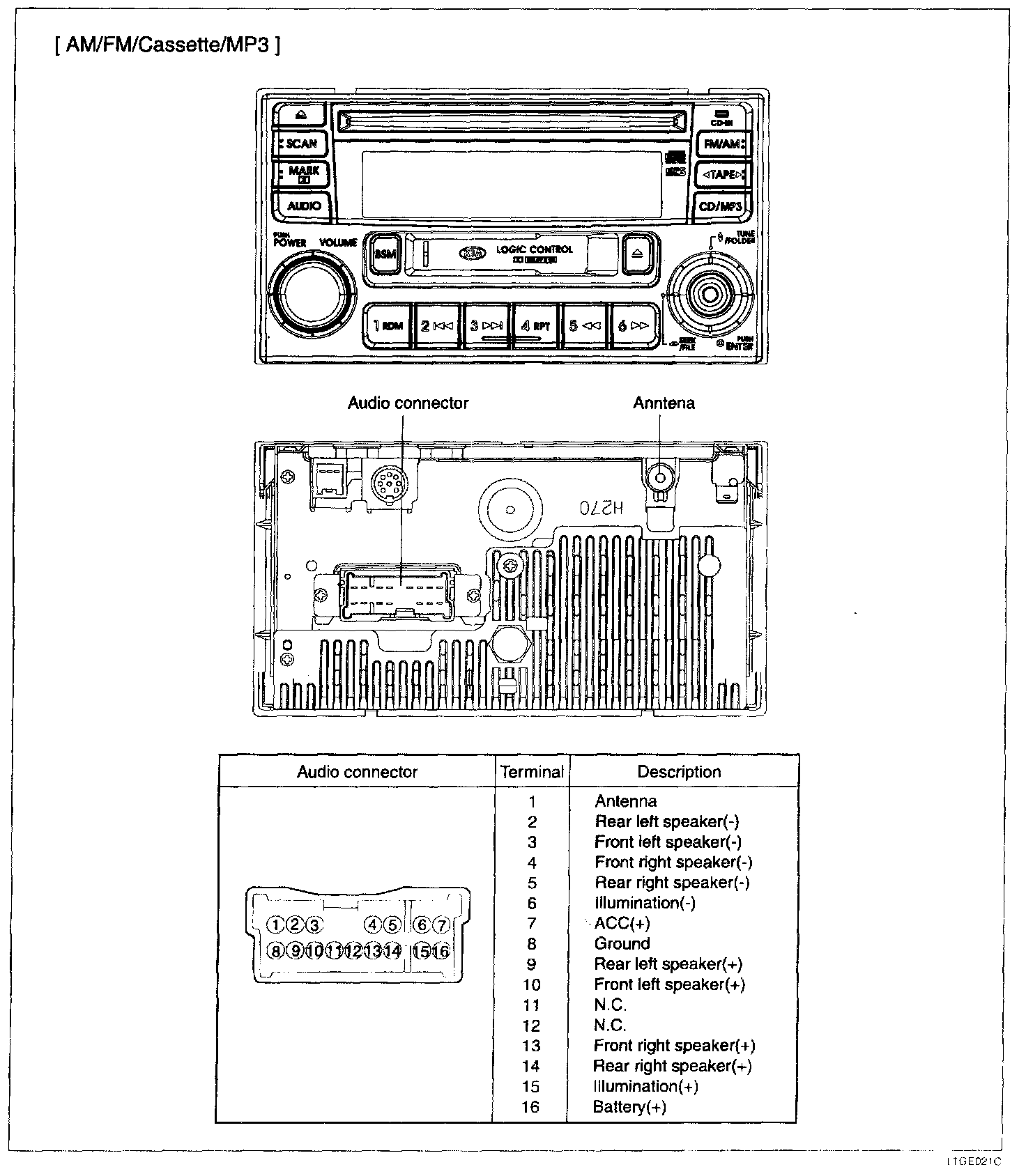

Audio Unit - Component, Part 3:
