Home >> Kia >> 2004 >> Spectra L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1690

P1690

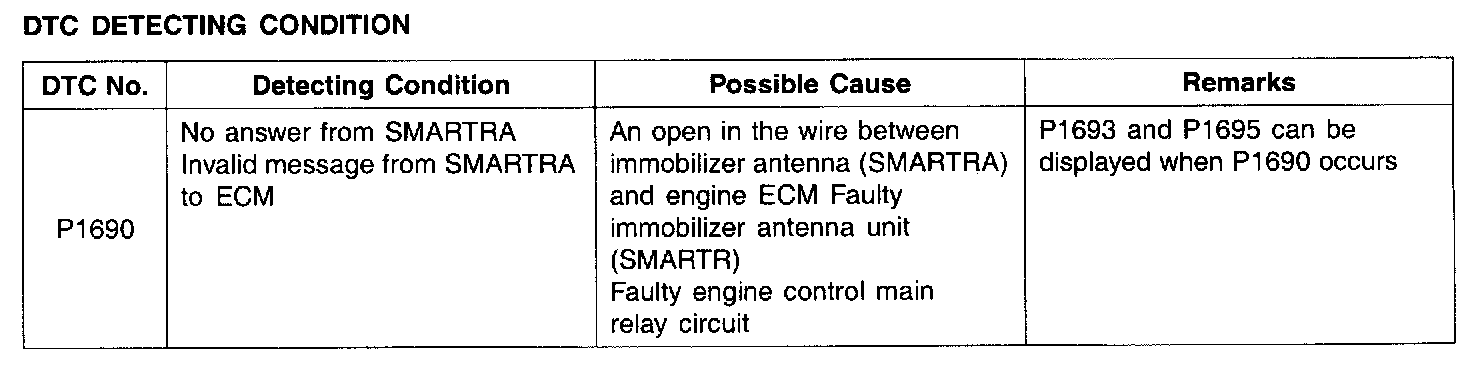

DTC P1690 No answer from SMARTRA Invalid message from SMARTRA to ECM

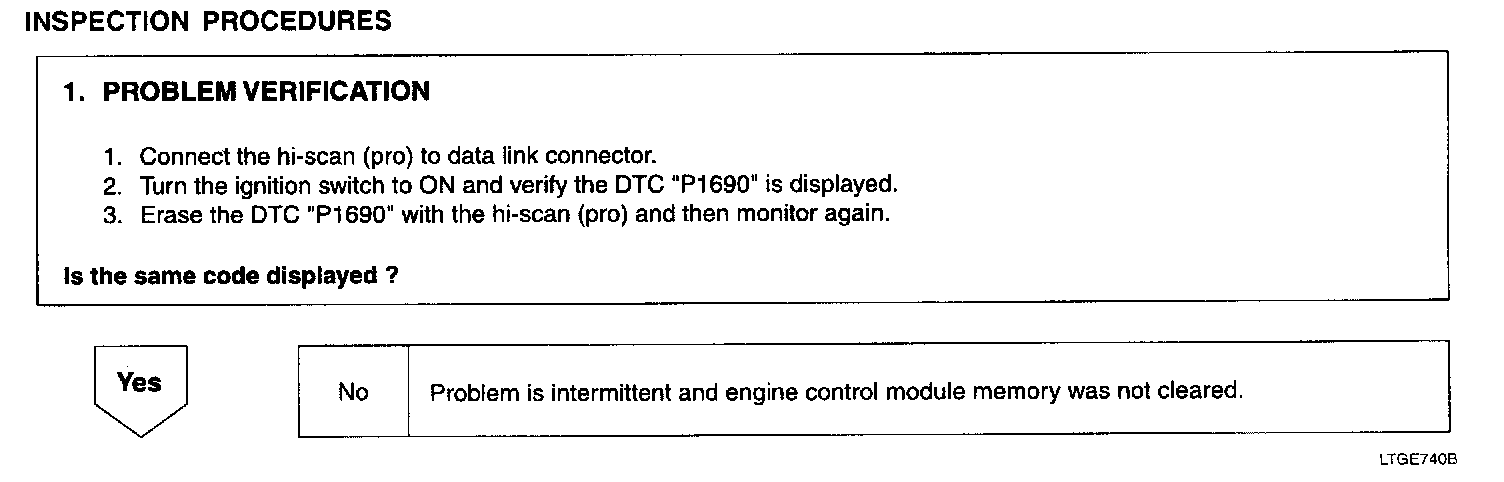

Step 1:

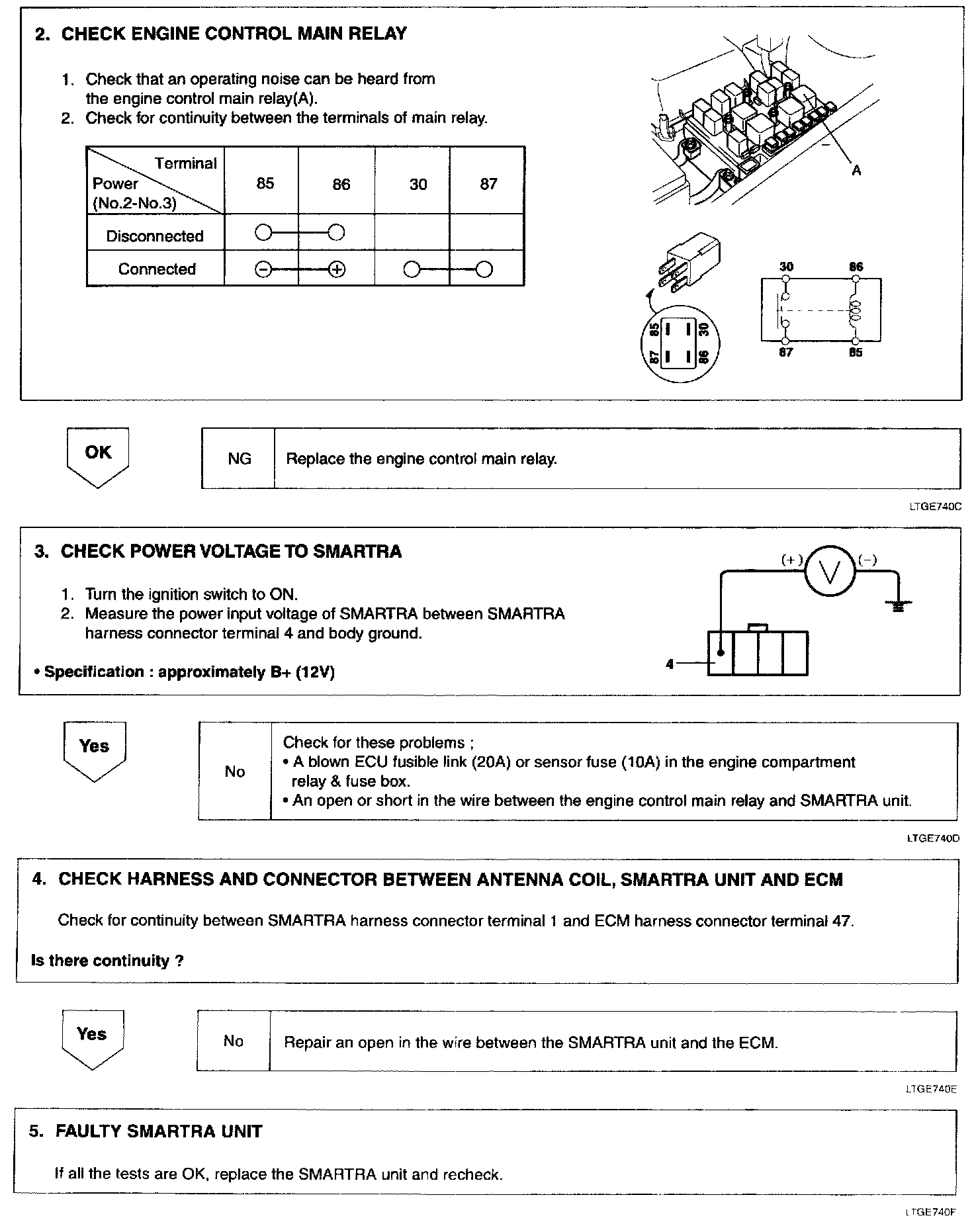

Step 2 - 5:
