Home >> Kia >> 2004 >> Spectra L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1603

P1603

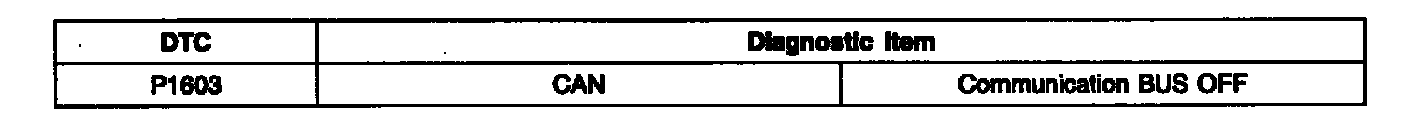

DTC P1603 CAN COMMUNICATION BUS OFF

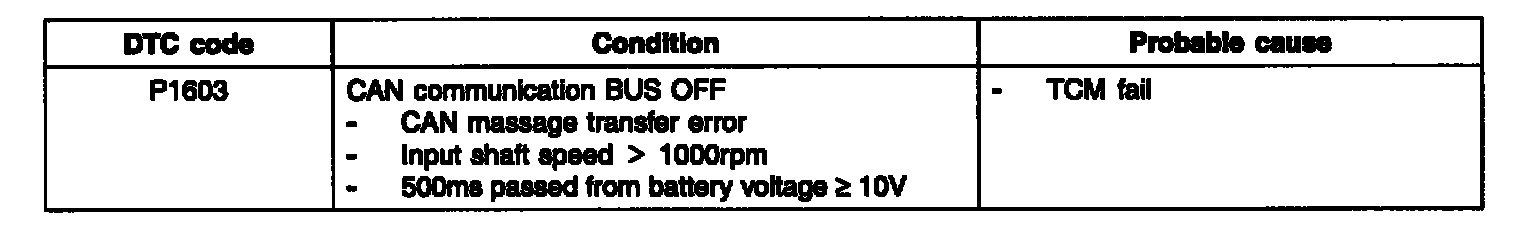

DTC DETECTING CONDITION

Part 1:

Part 2:

Part 3:

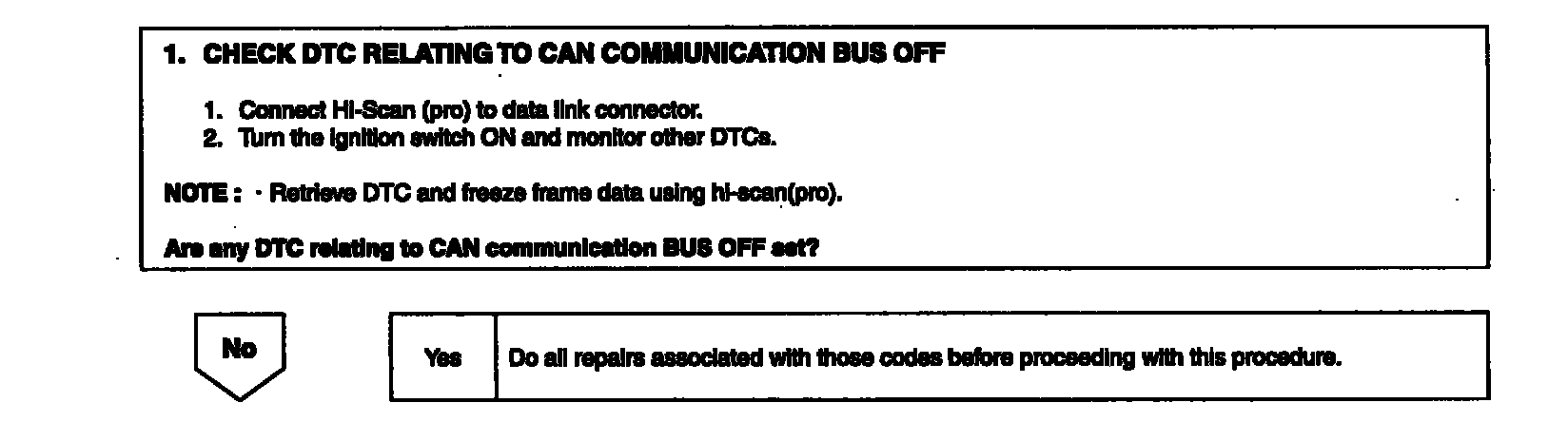

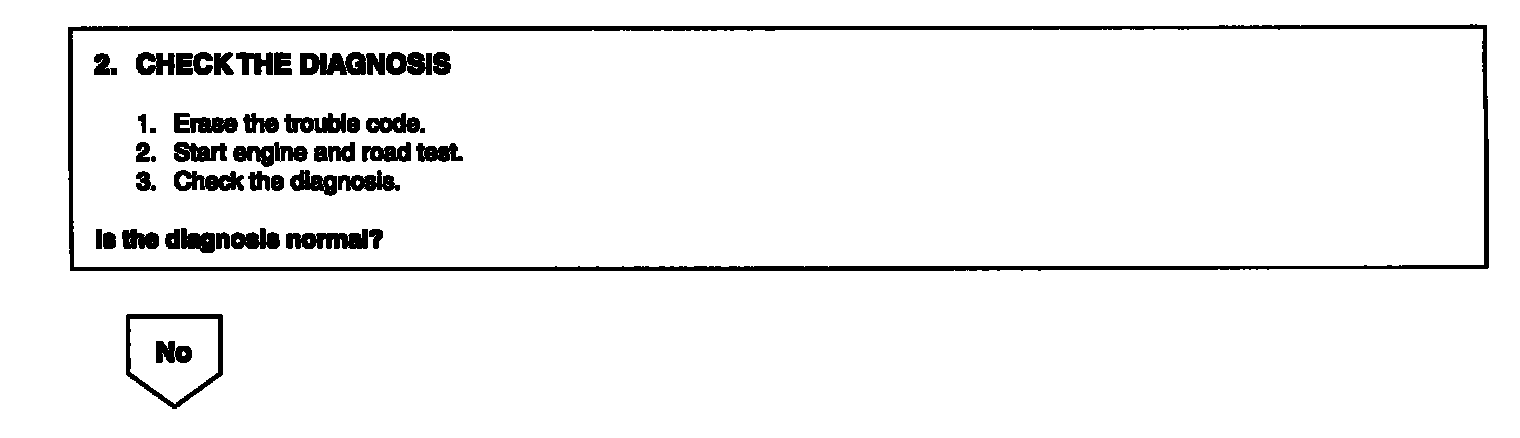

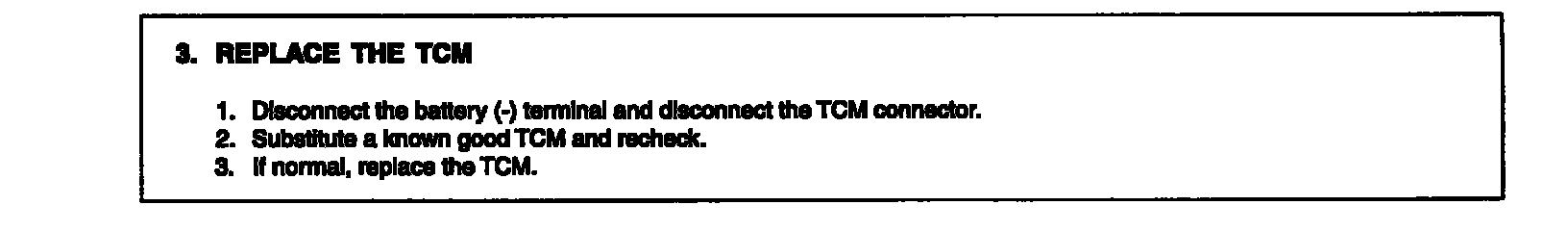

INSPECTION PROCEDURES
