P0563

DTC P0563 System Voltage High Input

DESCRIPTION

The system voltage has to be high enough to guarantee in order to perform diagnosis functions. The ECM monitors battery voltage.

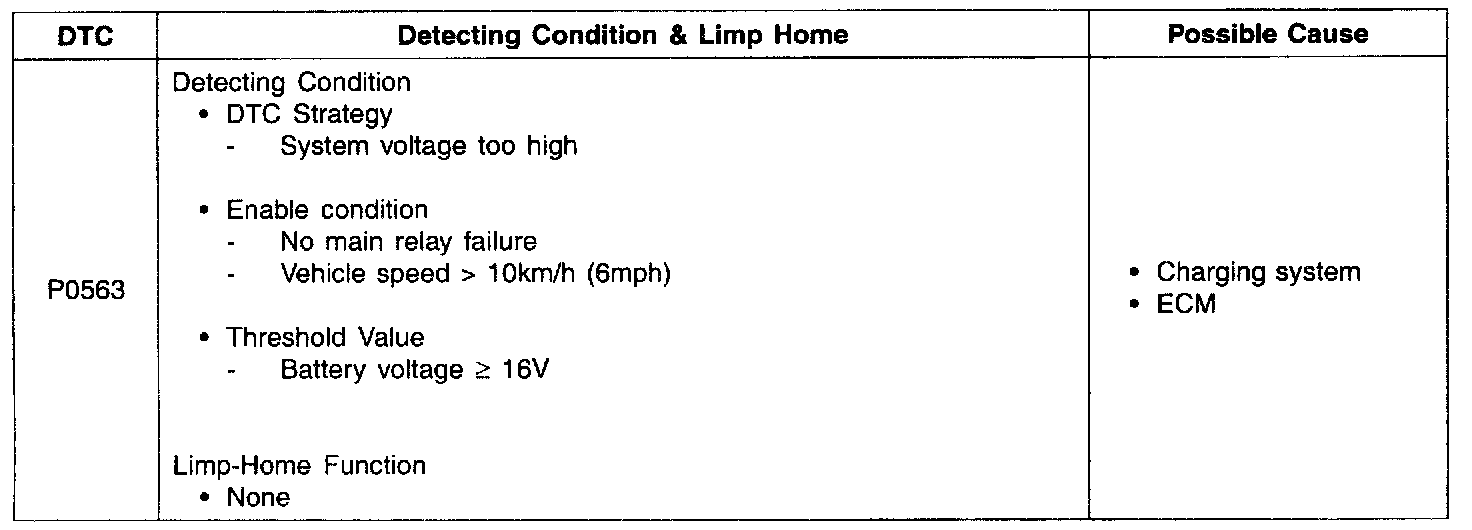

Detecting Condition & Limp Home:

DTC DETECTING CONDITION

1. DTC Description
ECM sets DTC P0563 if the ECM detects system voltage higher than the possible range of battery voltage.

2. Conditions for Setting the DTC

Step 1:

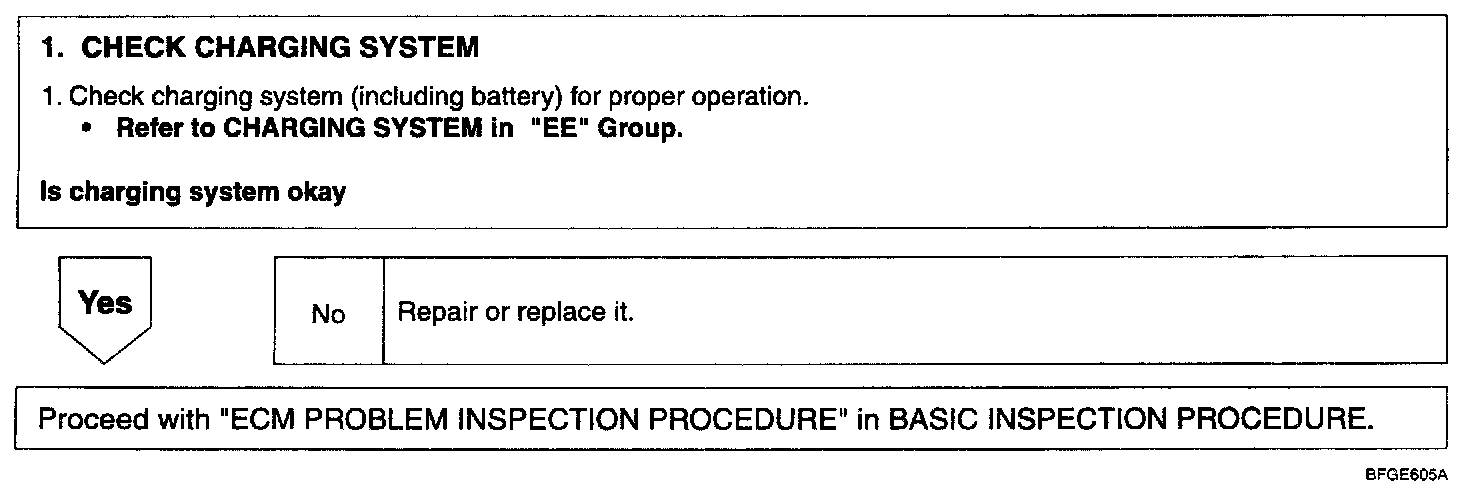

Inspection Procedure
