P0340

DTC P0340 Camshaft Position Sensor Circuit Malfunction

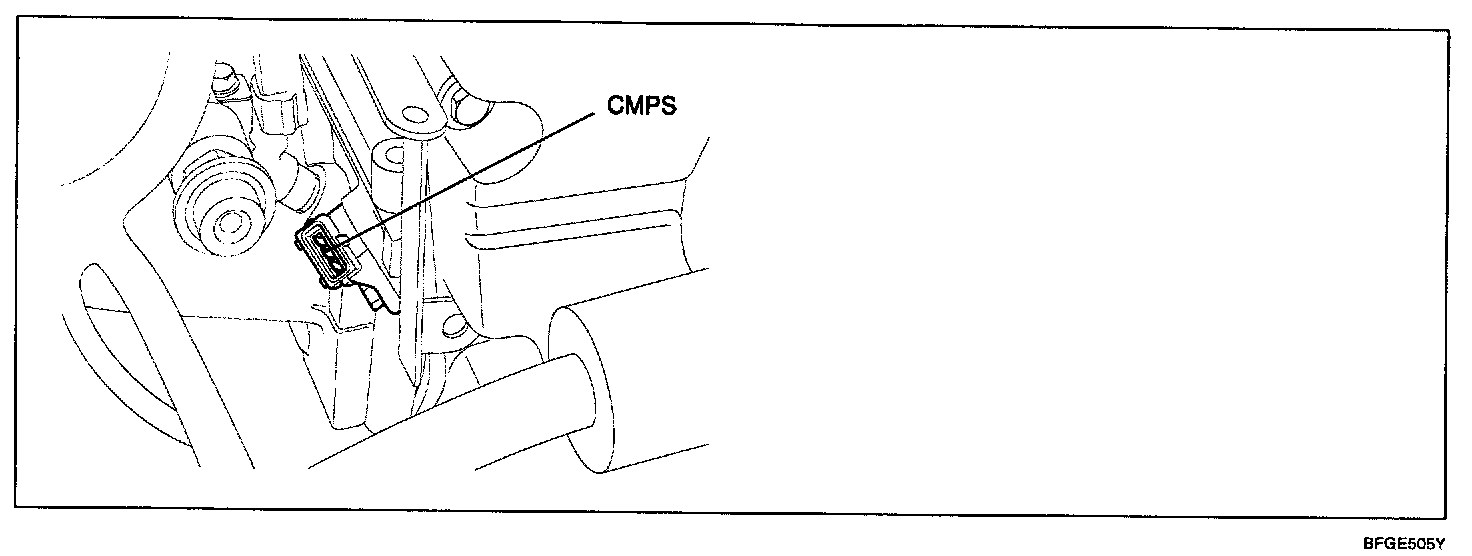

Component Location:

DESCRIPTION

The Camshaft Position Sensor (CMPS) is a sensor that detects the compression TDC of the NO.1 cylinder. The CMPS consists of a hall type sensor and a target on the end of the intake camshaft. When the target triggers the sensor, the sensor voltage is 5 V. If not, the sensor voltage is 0 V. These CMPS signal is sent to the ECM and the ECM uses the CMPS signal for synchronizing the firing of sequential fuel injectors.

Detecting Condition & Limp Home:

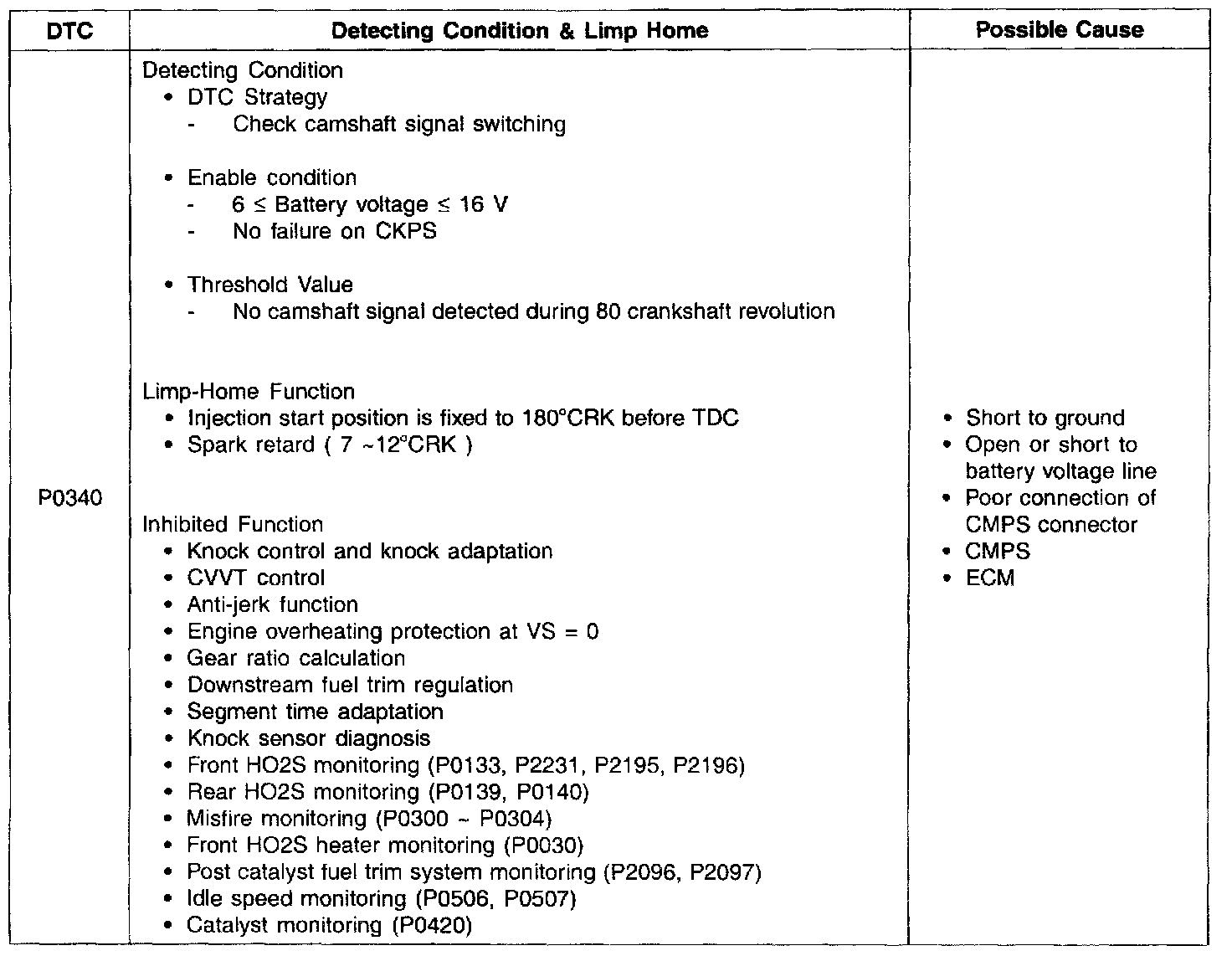

DTC DETECTING CONDITION

1. DTC Description
The ECM monitors the camshaft sensor signal transition position which must change only once per crankshaft revolution. If no camshaft signal is detected while crankshaft signal is detected, the ECM sets DTC P0340. If same error code is set in the next driving cycle, the ECM illuminates the MIL.

2. Conditions for Setting the DTC

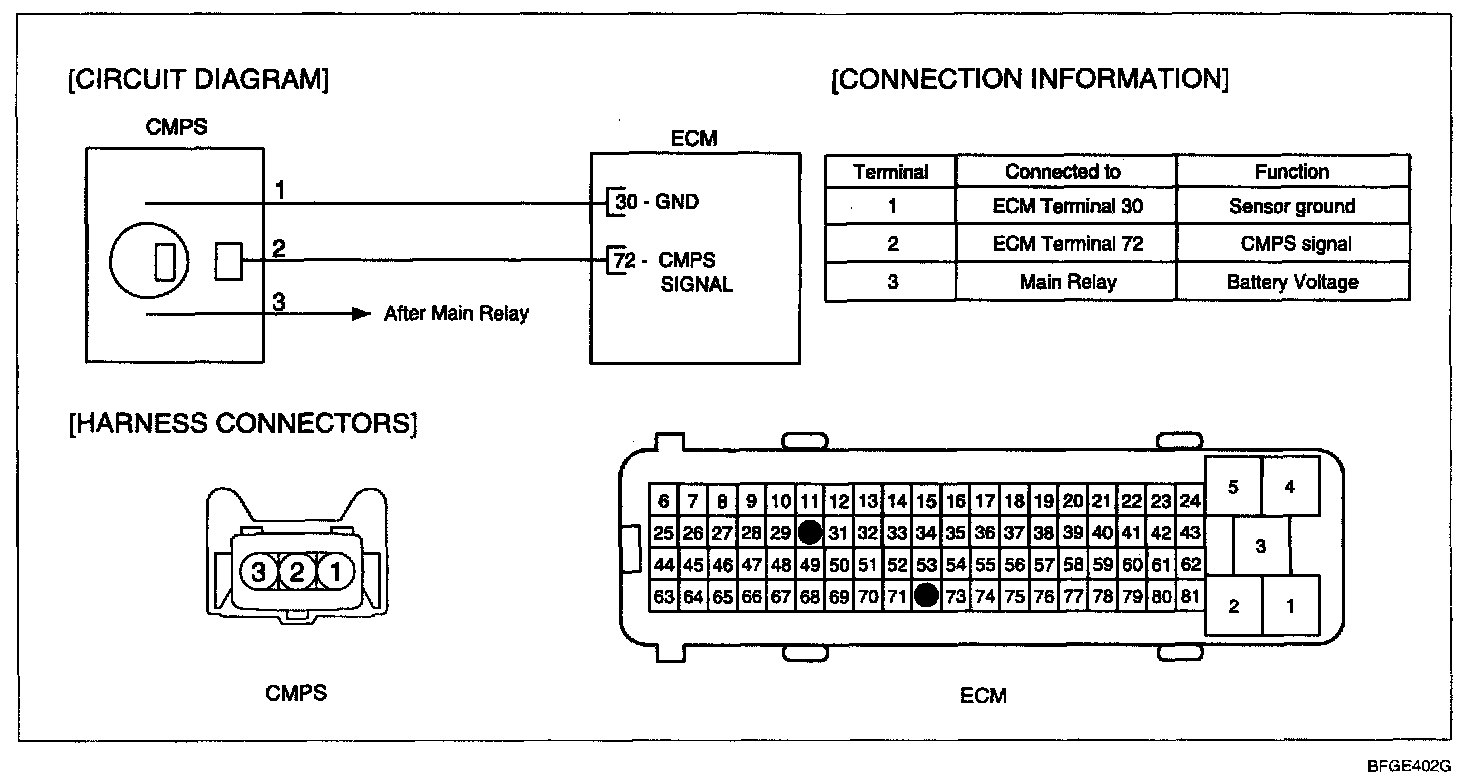

Schematic Diagram:

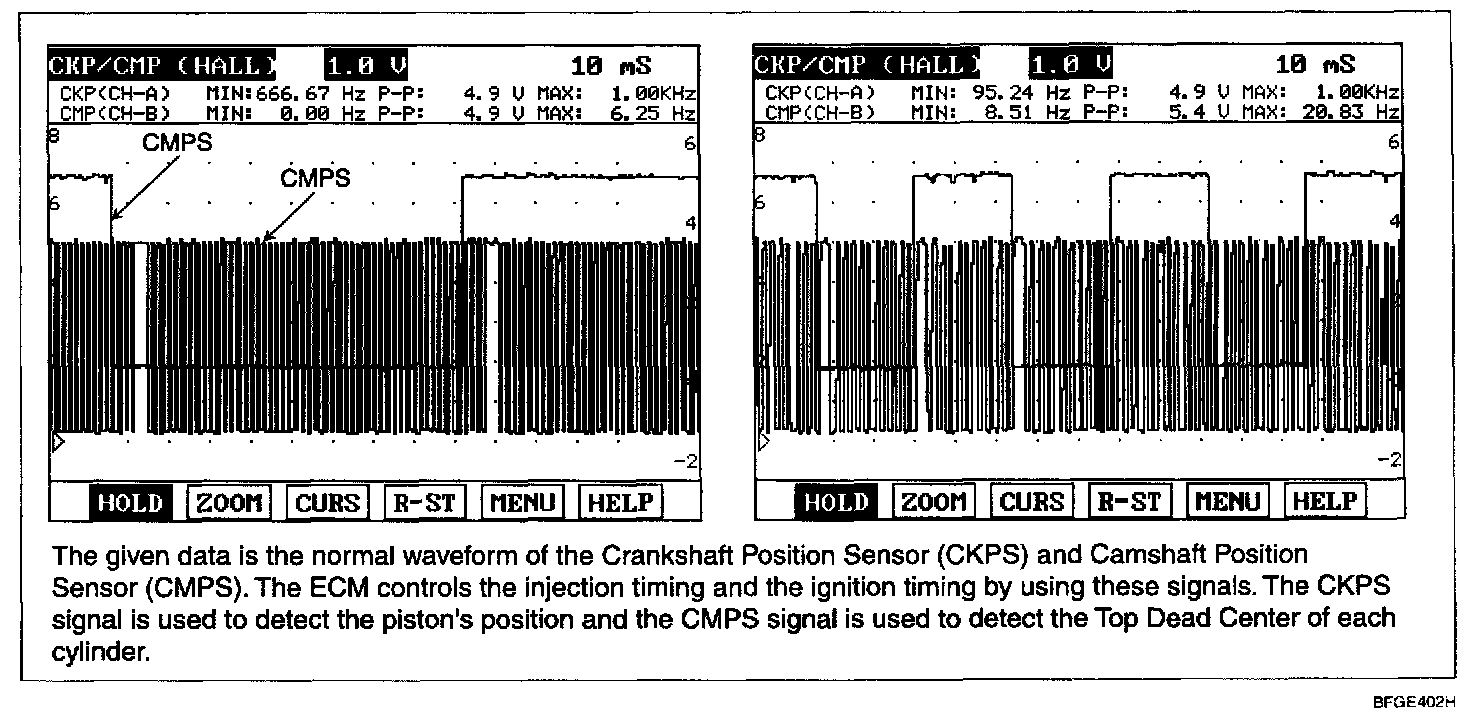

Signal Wave Form:

Step 1 - 4:

Step 4(Continued) - 6:

Step 7:

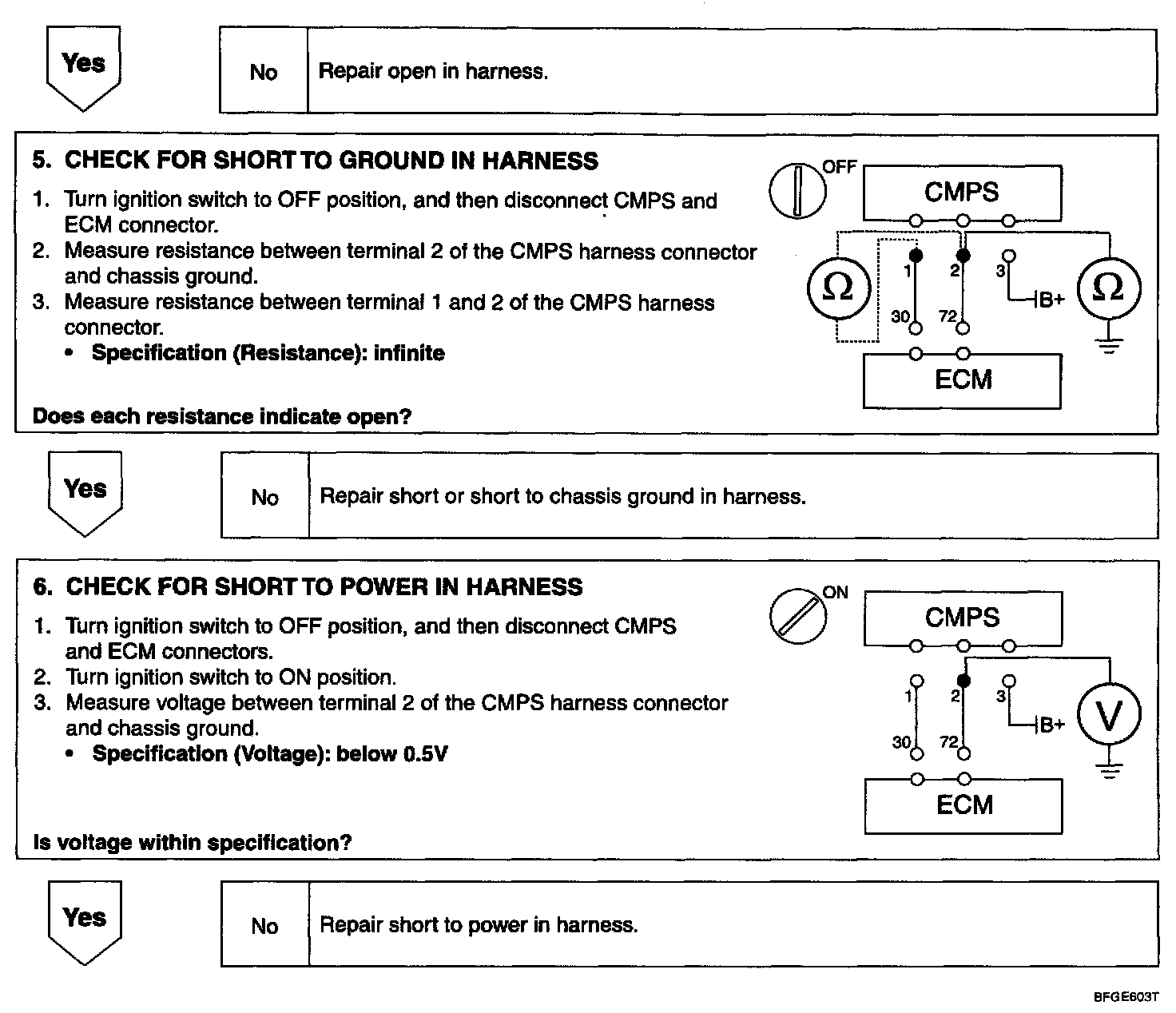

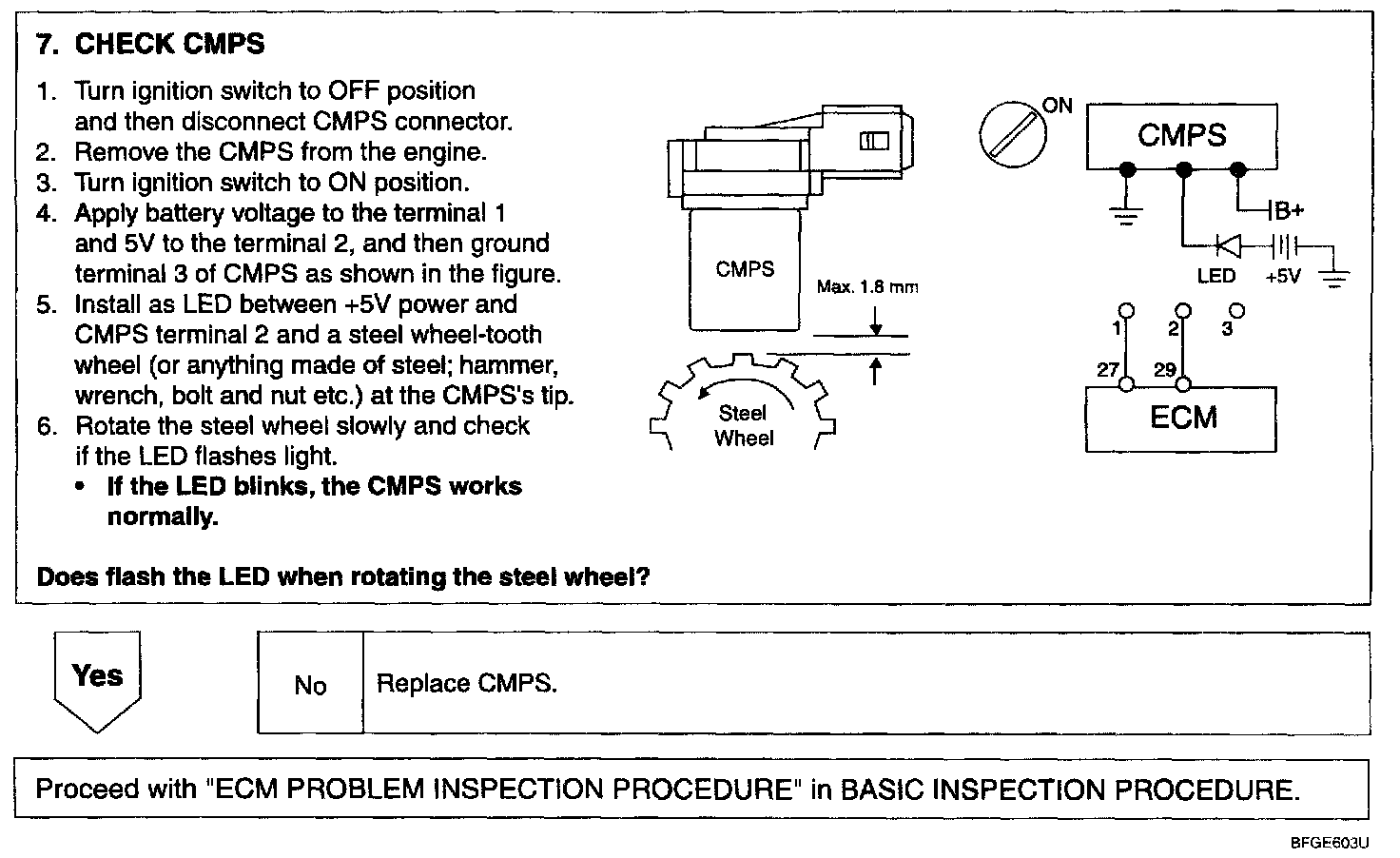

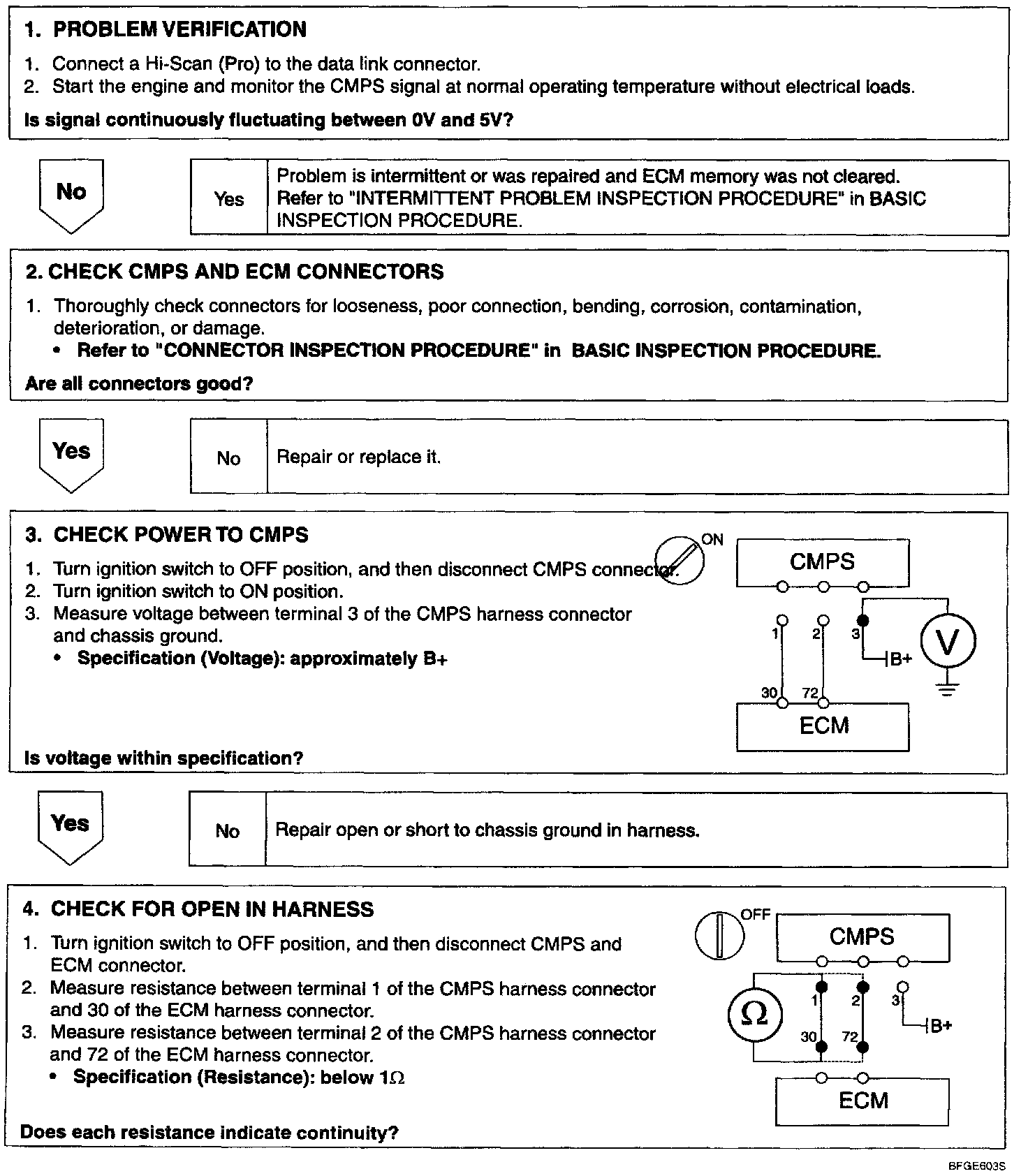

Inspection Procedure
