P0335

DTC P0335 Crankshaft Position Sensor Circuit Malfunction

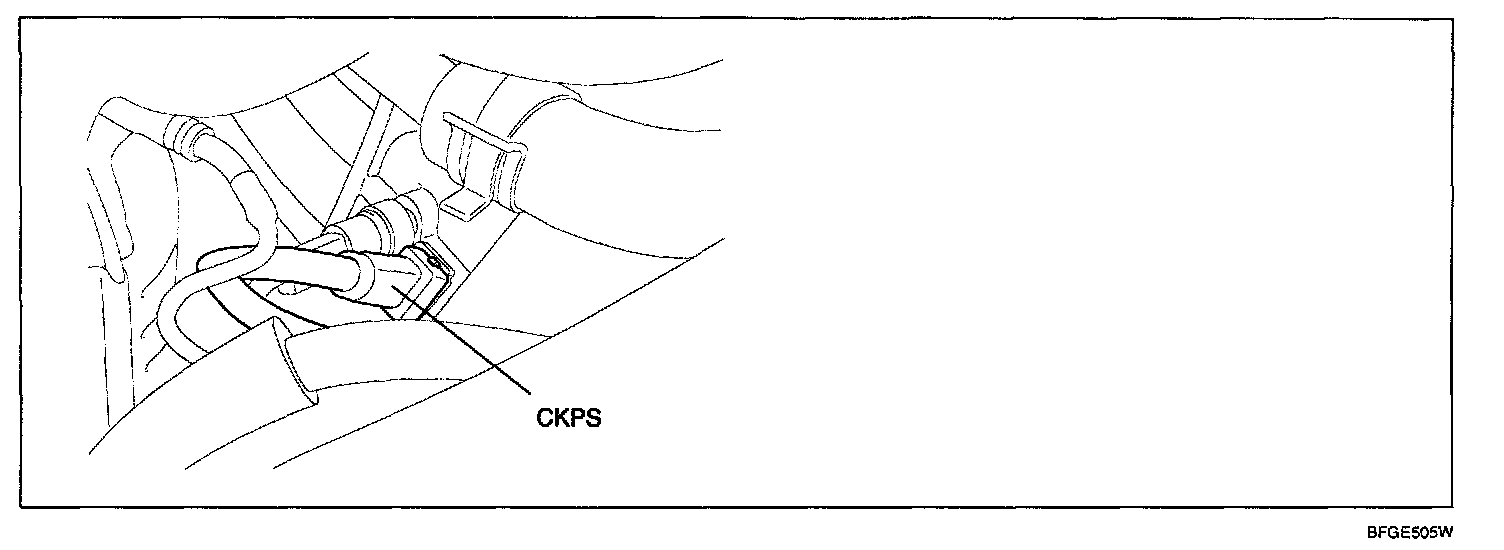

Component Location:

DESCRIPTION

The Crankshaft Position Sensor (CKPS) is a hall effect type sensor that generates voltage using a sensor and a target wheel mounted on the crankshaft; there are 58 slots in the target wheel where one is longer than the others. When the slot in the wheel aligns with the sensor, the sensor voltage outputs low. When the metal (tooth) in the wheel aligns with the sensor, the sensor voltage outputs high. During one crankshaft rotation there are 58 rectangular signals and one longer signal. The ECM calculates engine RPM by using the sensor's signal and controls the injection duration and the ignition timing. Using the signal differences caused by the longer slot, the ECM identifies which cylinder is at top dead center.

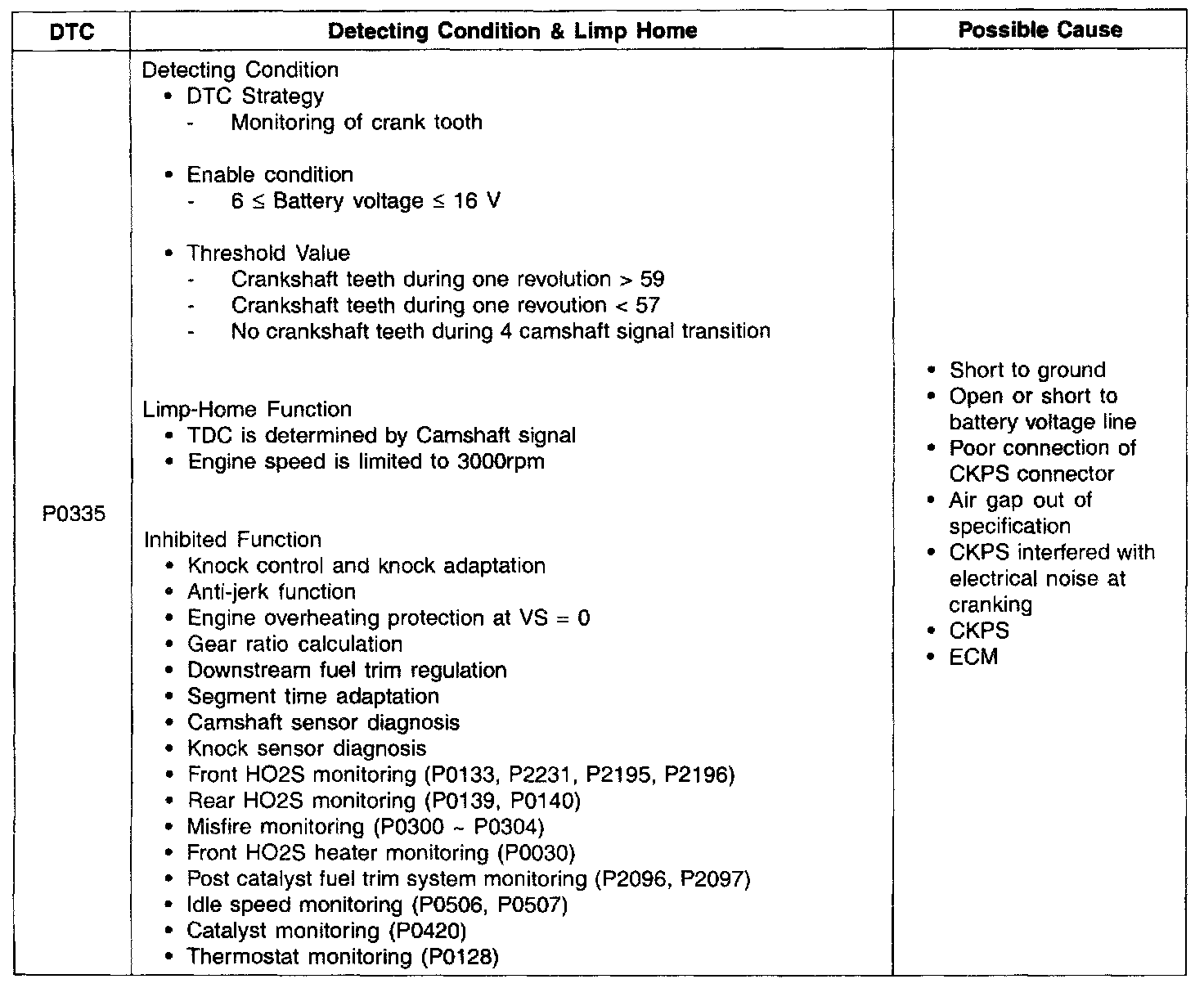

Detecting Condition & Limp Home:

DTC DETECTING CONDITION

1. DTC Description
The ECM sets DTC P0335 when the number of crankshaft teeth during one revolution is incorrect or crankshaft signal is missing while camshaft signal is detected. If same error code is set in the next driving cycle, the ECM illuminates the MIL.

2. Conditions for Setting the DTC

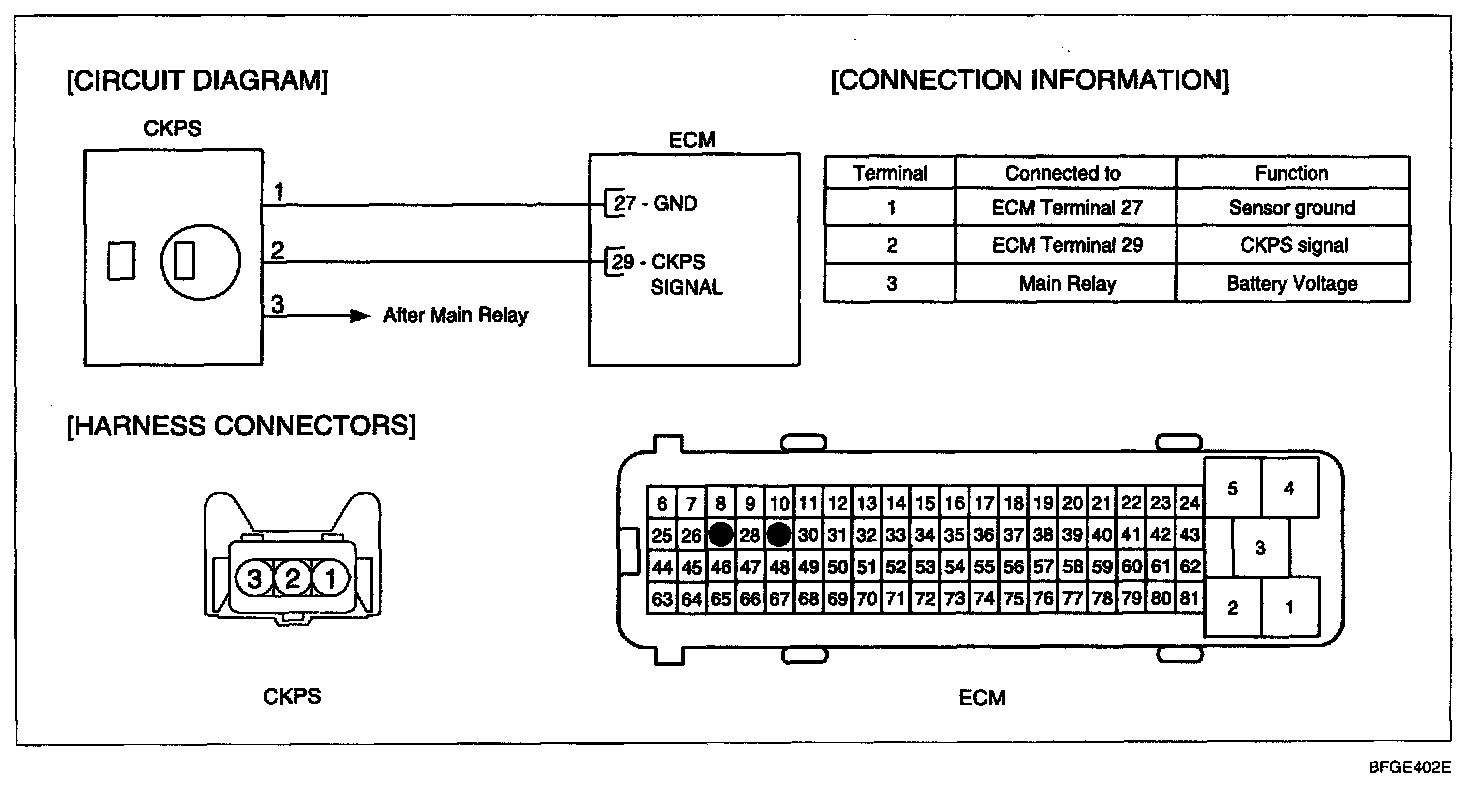

Schematic Diagram:

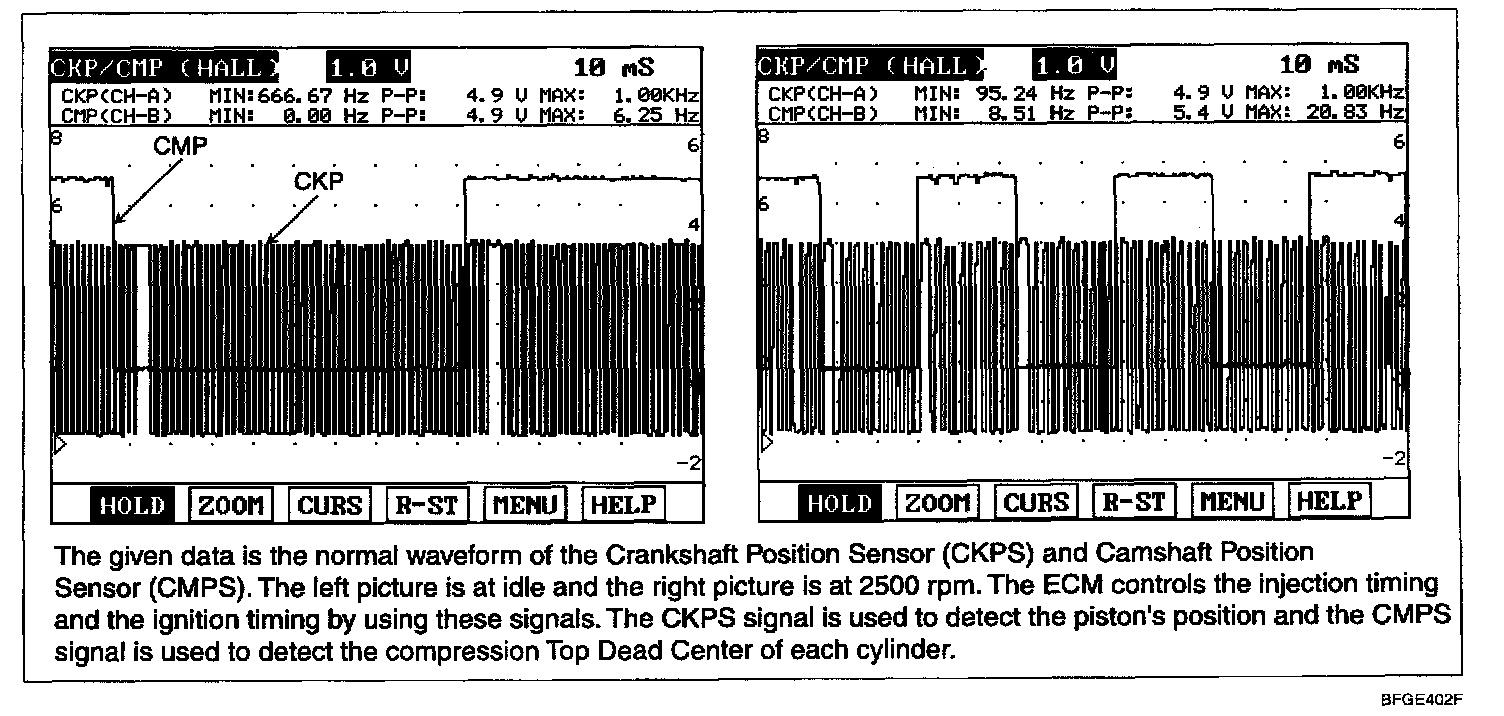

Signal Wave Form:

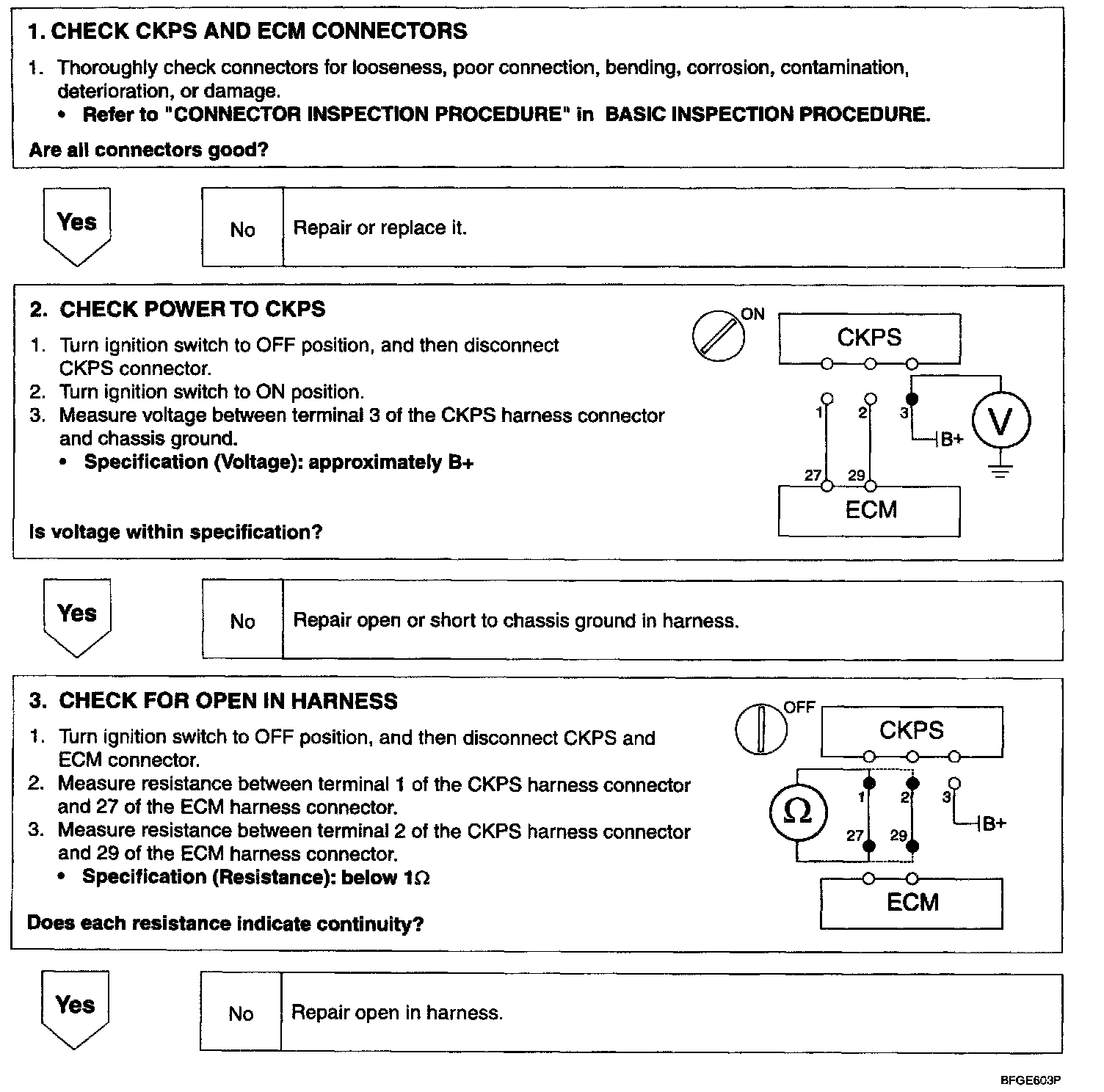

Step 1 - 3:

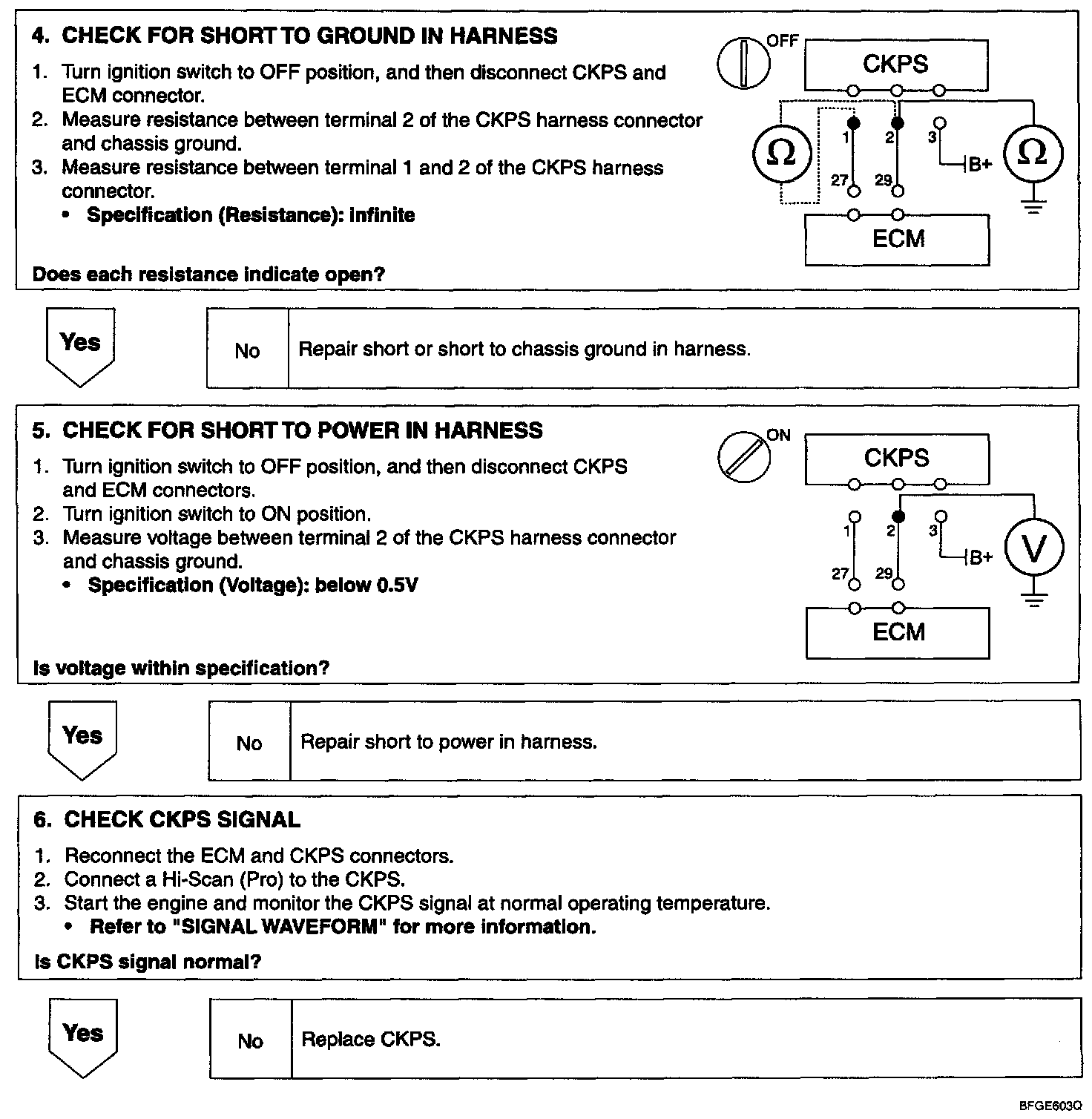

Step 4 - 6:

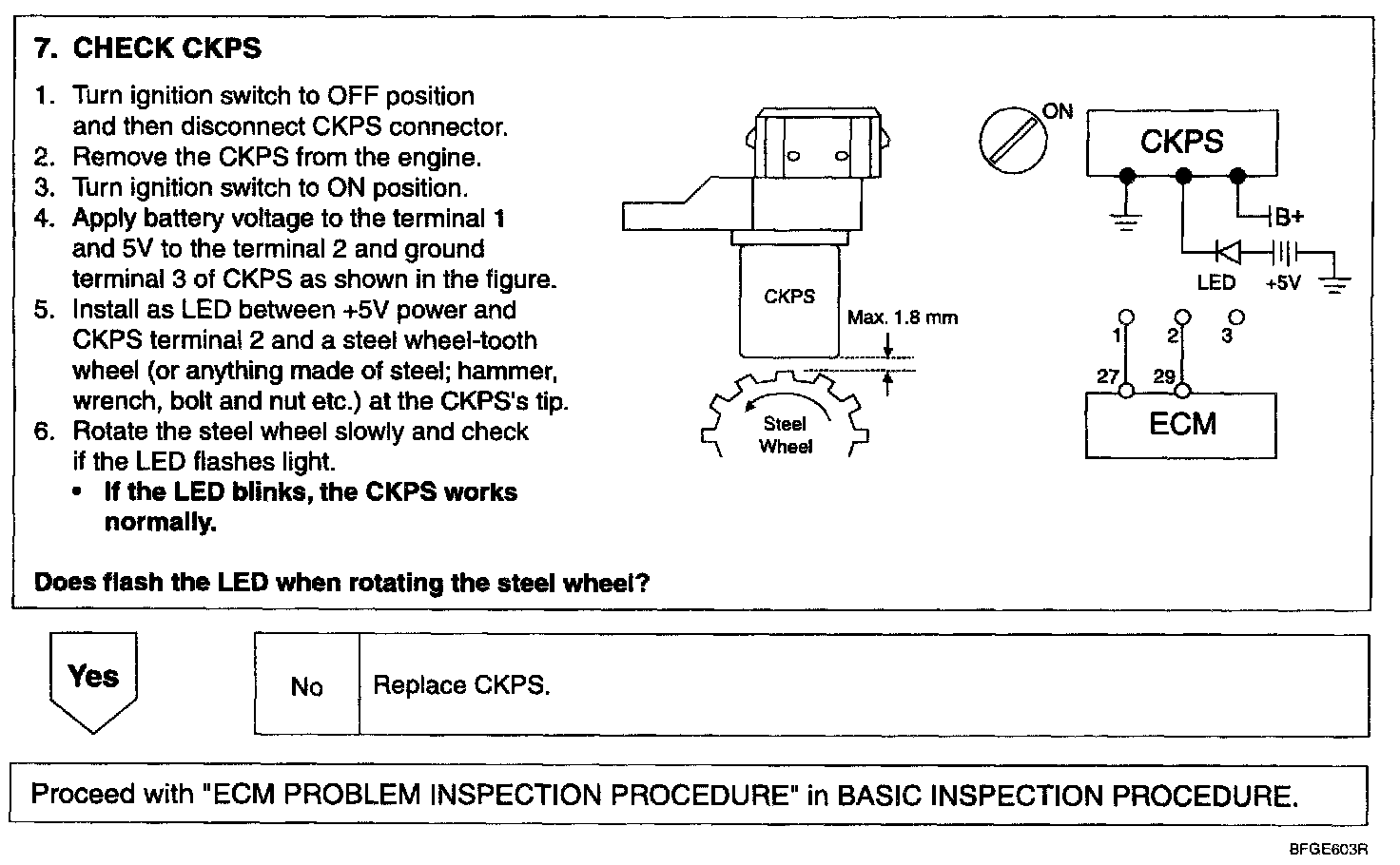

Step 7:

Inspection Procedure
