P0133

DTC P0133 Linear O2 Sensor Circuit Slow Responsive (Bank1, Sensor1)

DESCRIPTION

The linear oxygen sensor is mounted on the front side of the Catalytic Converter (warm-up catalytic converter) or in the front exhaust pipe, which detects a wide range of air/fuel ratio in the exhaust gas from rich to lean regions. This linear oxygen sensor produces a current that corresponds to a specific air/fuel ratio. The ECM monitors this signal and determines whether the air/fuel mixture is rich or lean. The ECM constantly monitors the HO2S and increases or decreases the fuel injection duration by using the HO2S signal, which is called closed-loop fuel control operation.

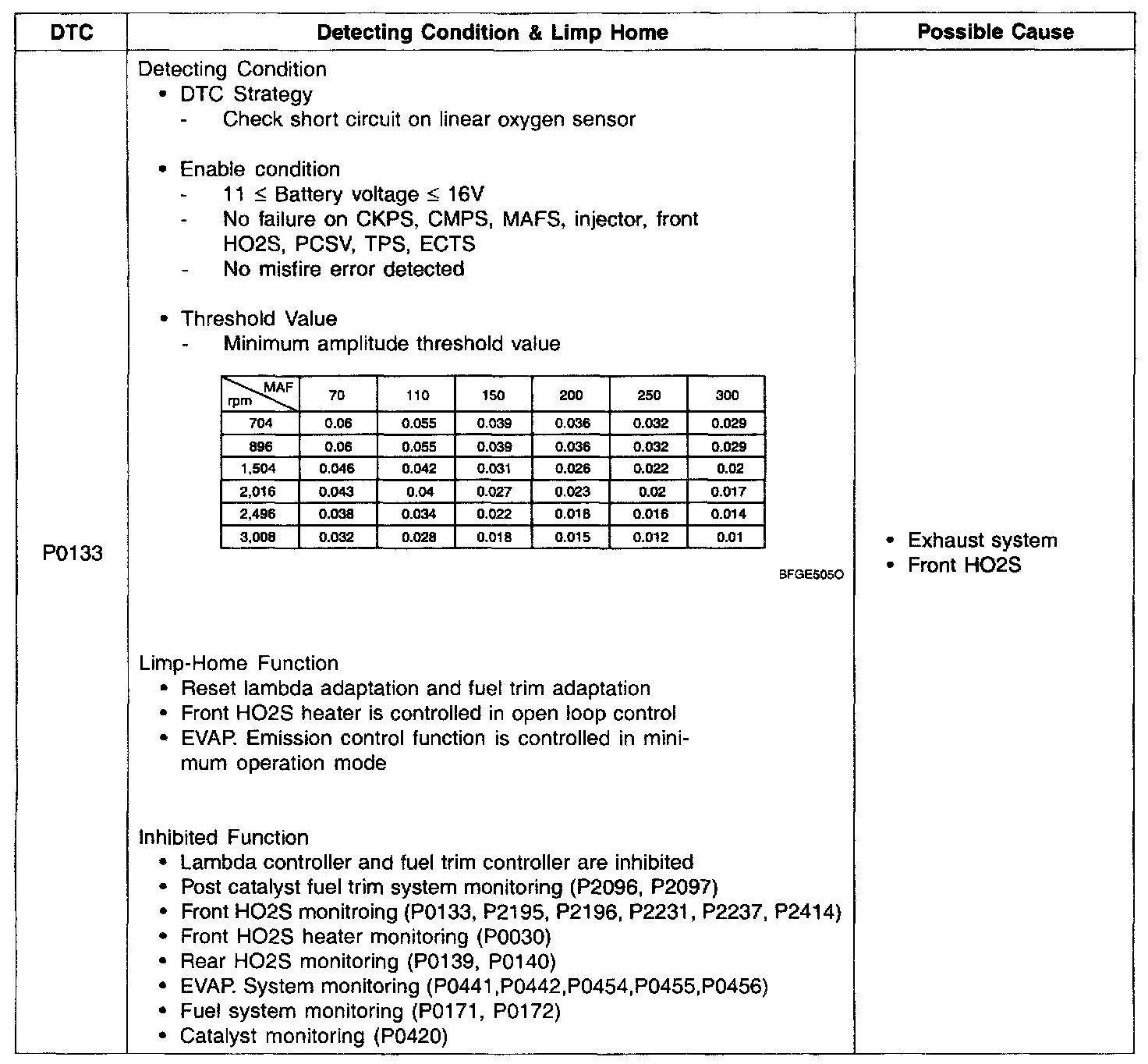

Detecting Condition & Limp Home:

DTC DETECTING CONDITION

1. DTC Description
The ECM monitors front oxygen sensor amplitude level and compares it to predetermined minimum amplitude value which could increase emission or disturb lambda control by the effect of ageing on the oxygen sensor. The ECM sets DTC P0133 when the amplitude of oxygen sensor is equal to or less than minimum amplitude threshold. If same error code is set in the next driving cycle, the ECM illuminates the MIL.

2. Conditions for Setting the DTC

Schematic Diagram:

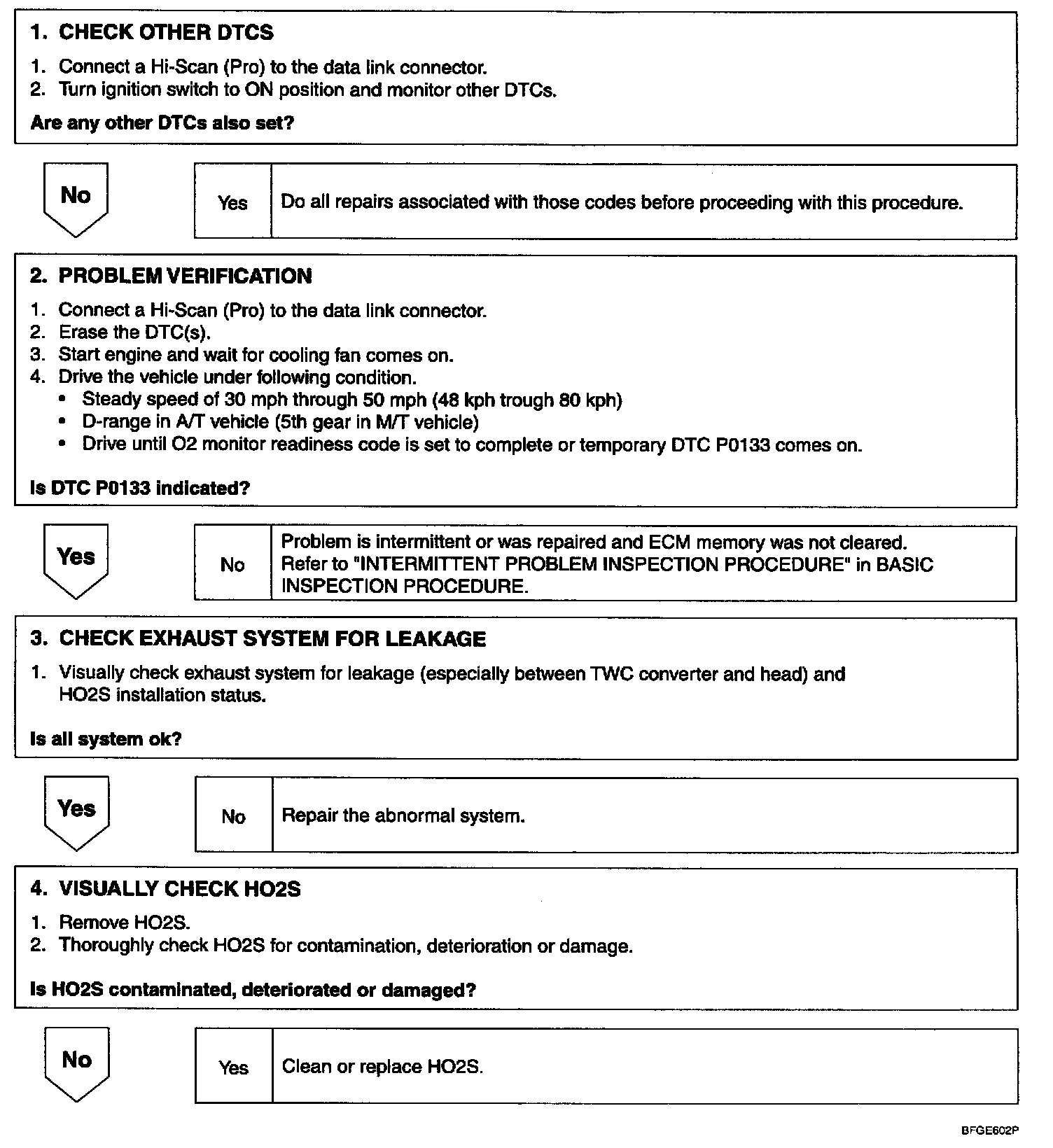

Step 1 - 4:

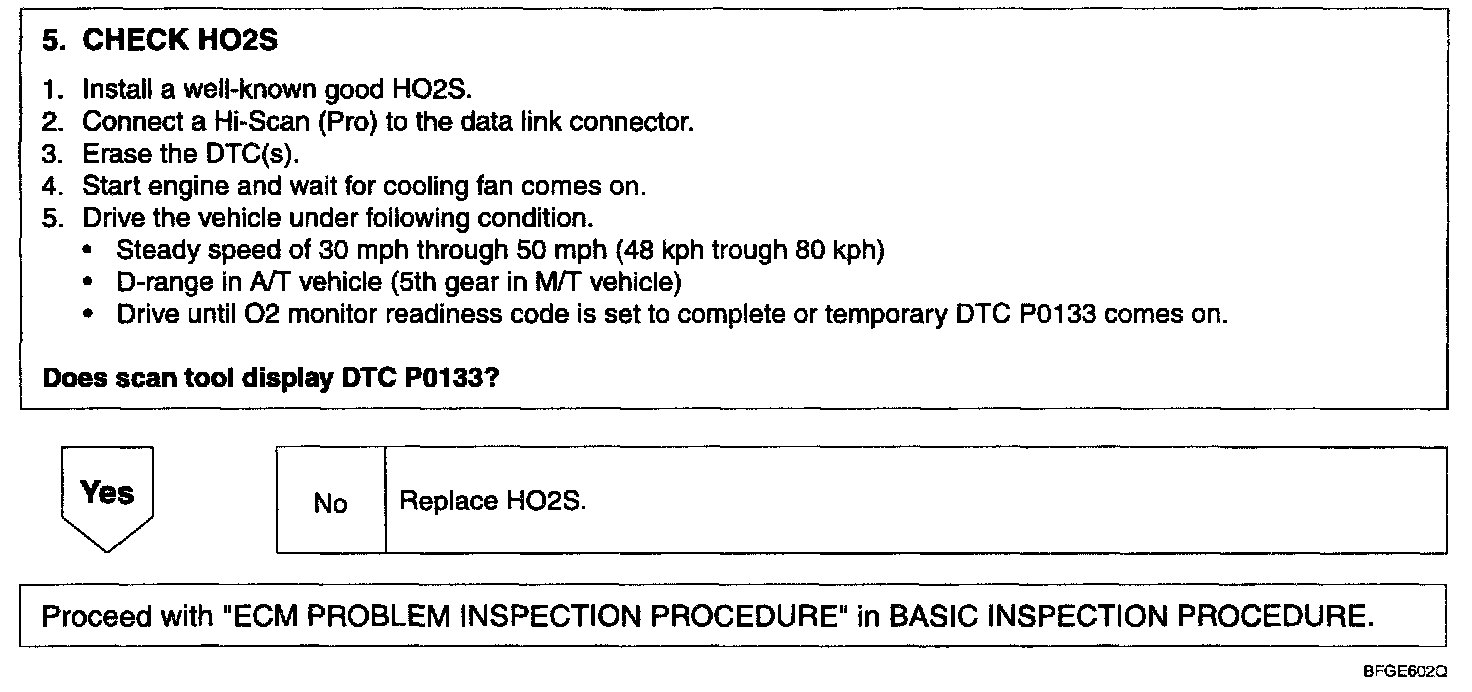

Step 5:

Inspection Procedure
