C1610

DTC C1610 CAN BUS OFF FAILURE (only System with TCS)

DESCRIPTION
The CAN circuit is used to send TCS control information from the HECU to the engine ECM and TCM, and engine and transmission control information from the engine ECM and TCM to the HECU.

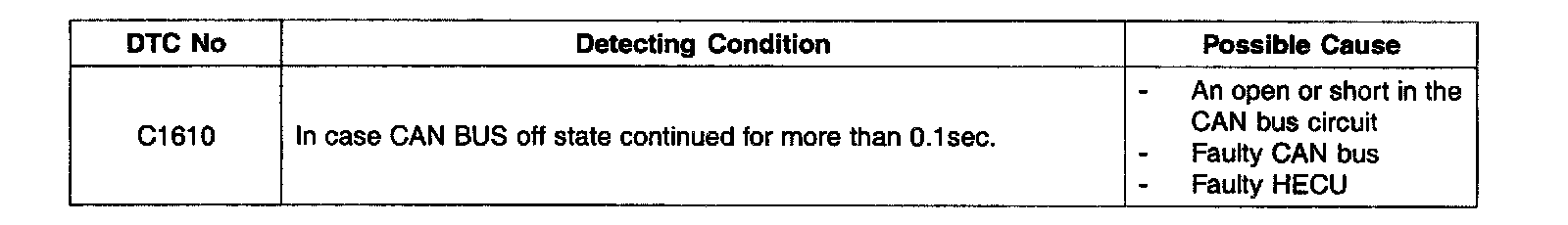

DTC DETECTING CONDITION

FAIL-SAFE FUNCTION
Inhibit the TCS control and allow the ABS/EBD control.

Part 1:

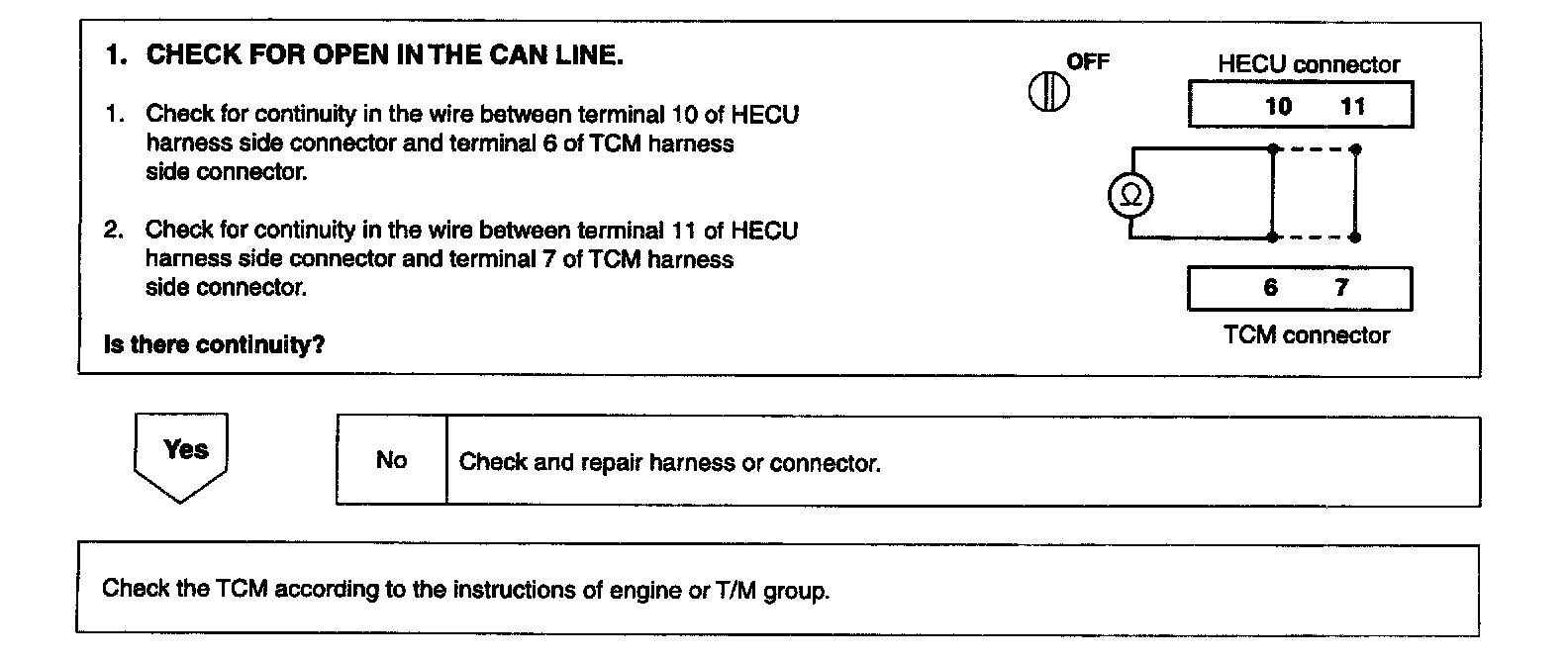

INSPECTION PROCEDURES
