B1485

DTC B1485 (2nd Stage) Passenger Airbag Resistance too High

DESCRIPTION

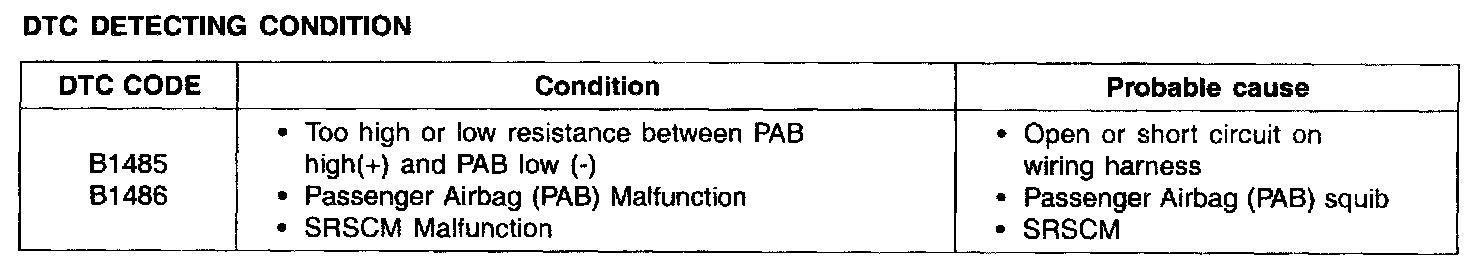

B1485 - B1486:

The Passenger Airbag circuit consists of the SRSCM and the Passenger Airbag (PAB) which has two squib circuits. The SRSCM sets above DTC(s) if it detects that the resistance of PAB squib is too high or low.

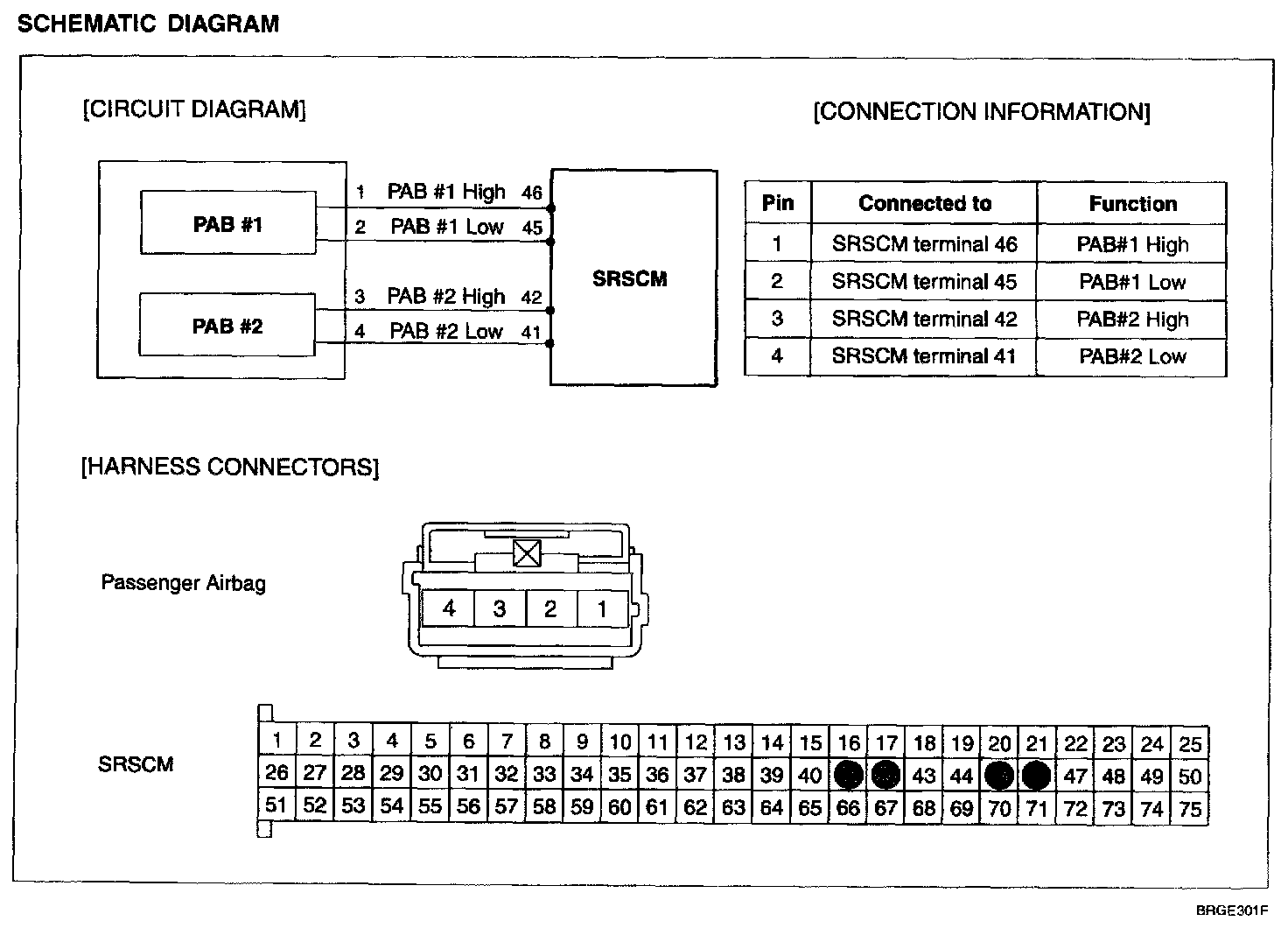

Schematic Diagram:

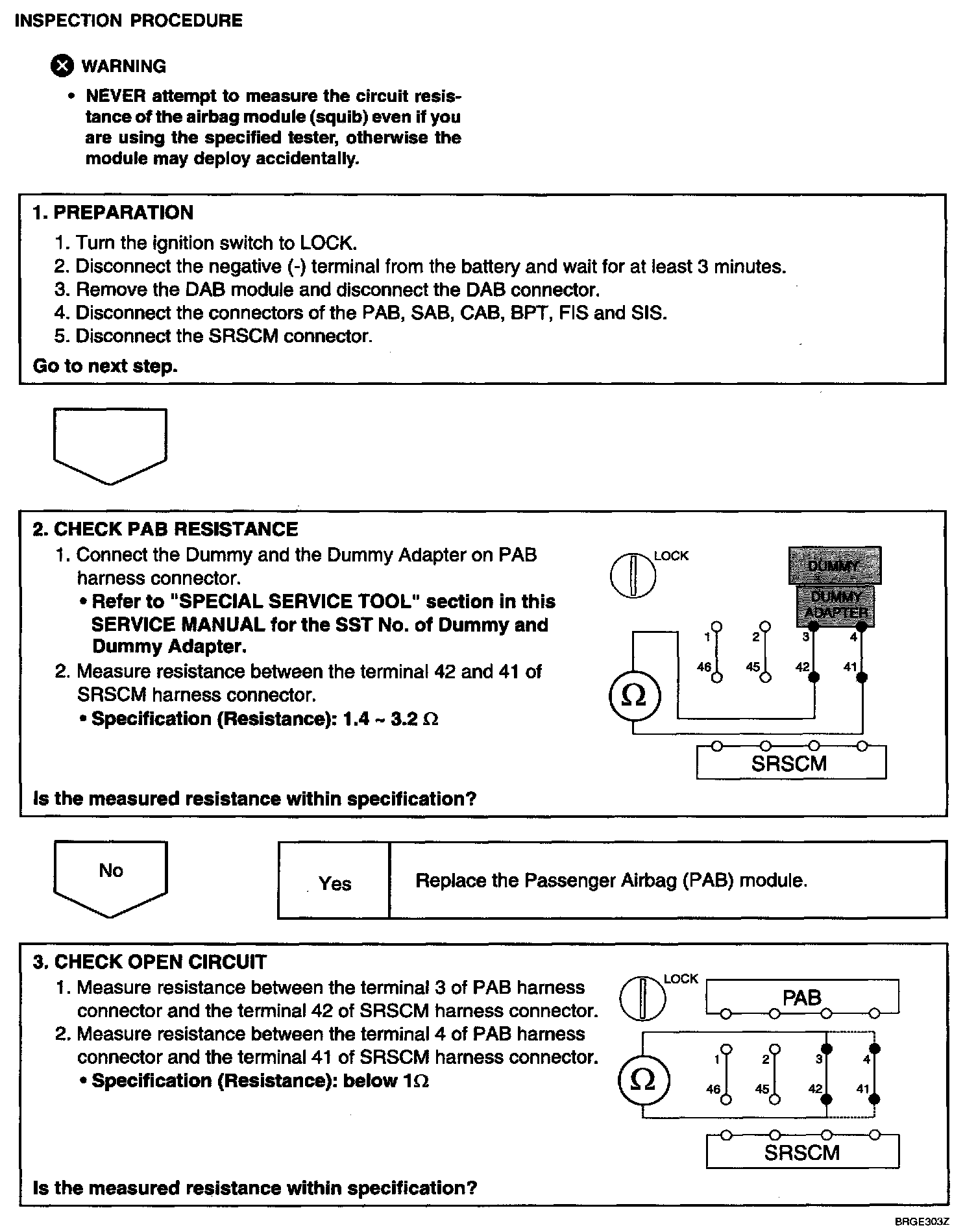

Step 1 - 3:

Step 3 - 5:

INSPECTION PROCEDURE
