B1483

DTC B1483 (2nd Stage) Driver Airbag Circuit Short to Ground

DESCRIPTION

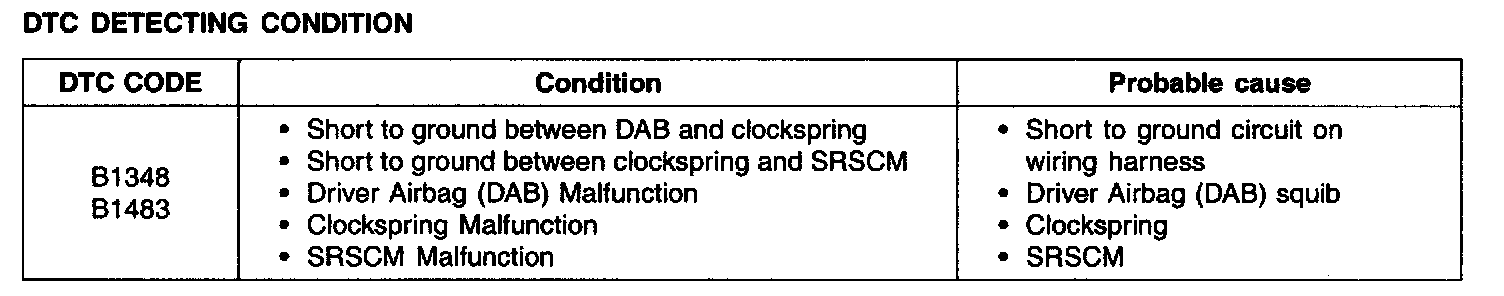

B1348 - B1483:

The Driver Airbag circuit consists of the SRSCM, Clock-spring and the Driver Airbag (DAB) which has two squib circuits. The SRSCM sets above DTC(s) if it detects short to ground on the DAB circuit.

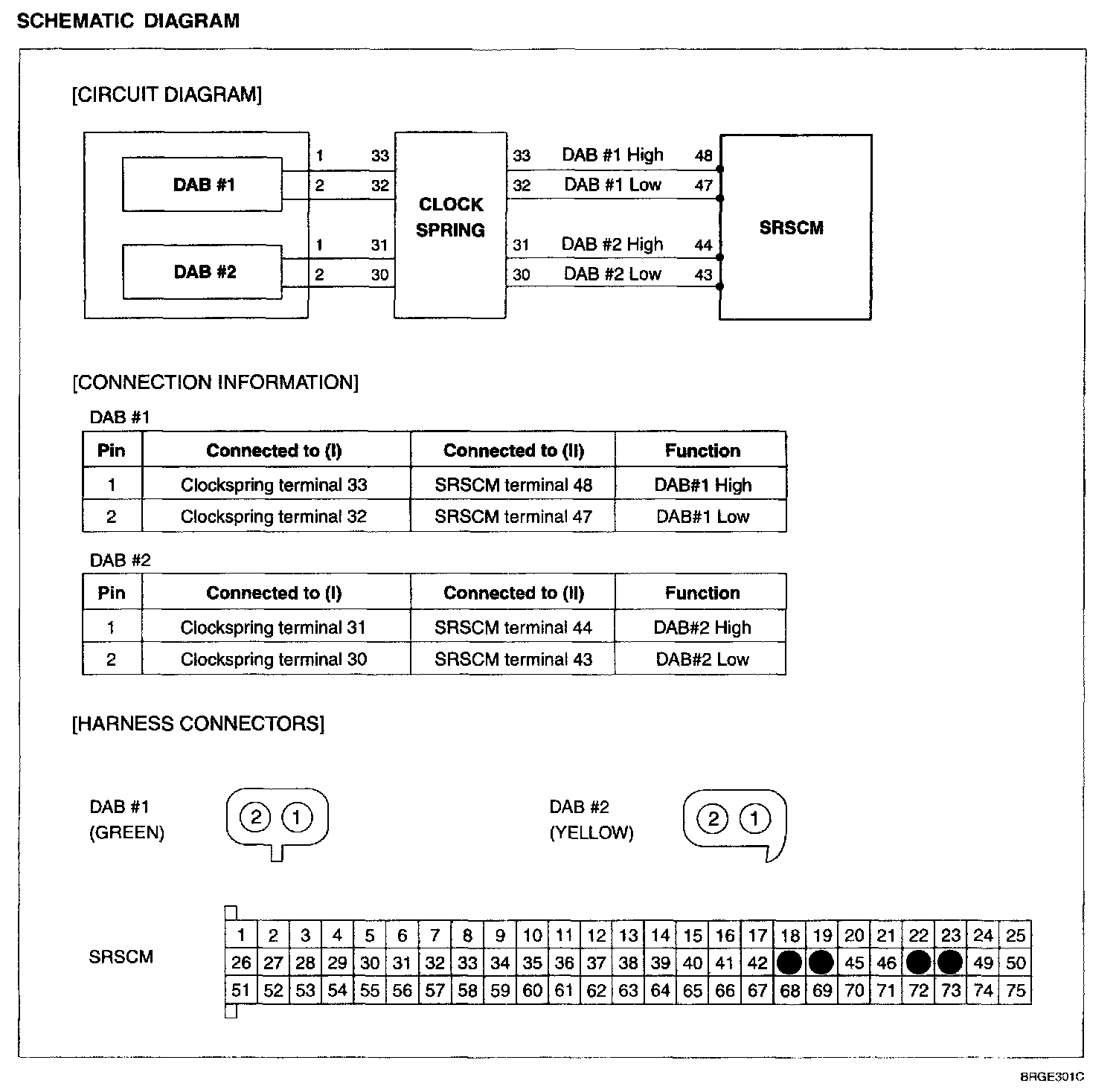

Schematic Diagram:

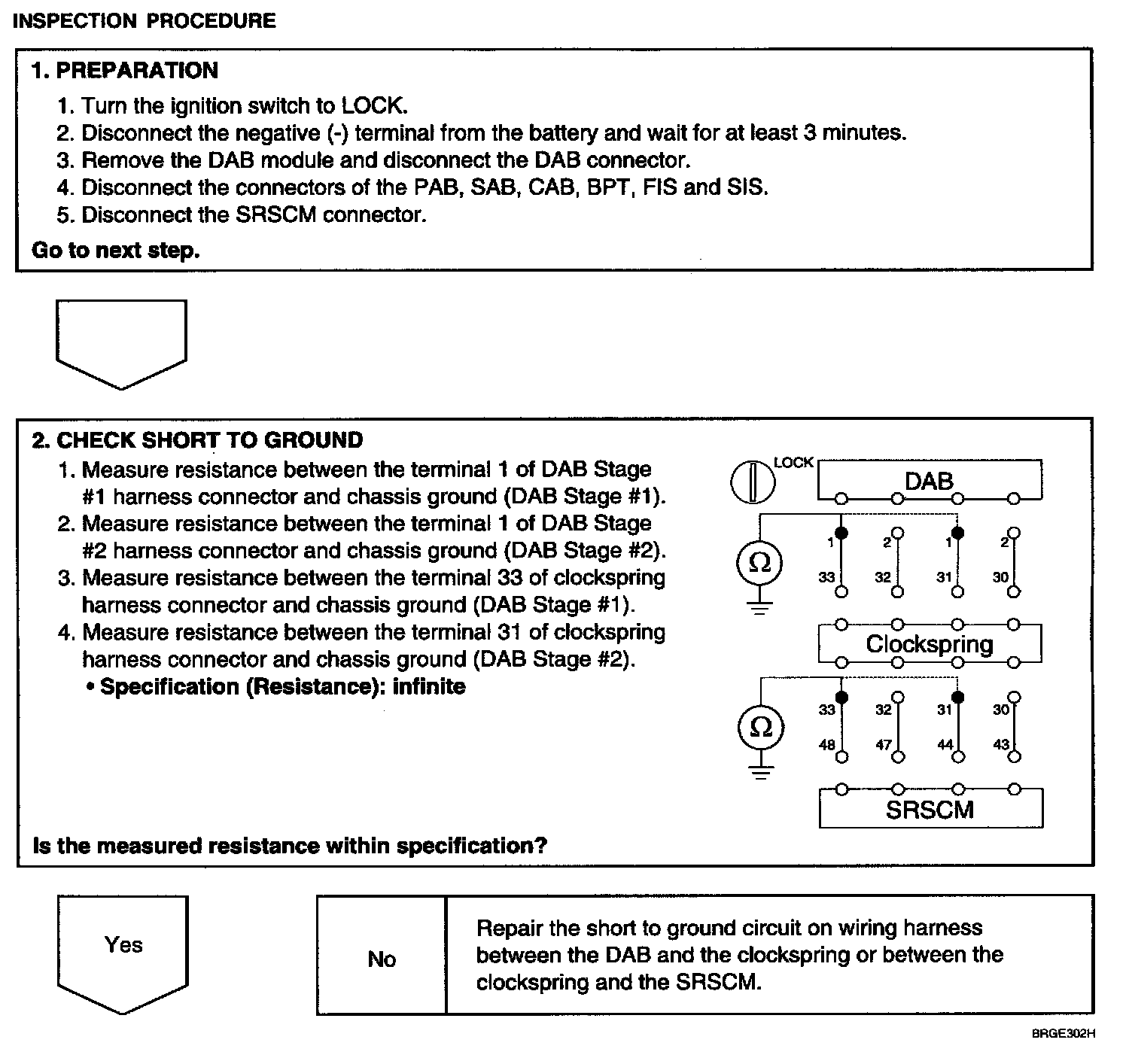

Step 1 - 2:

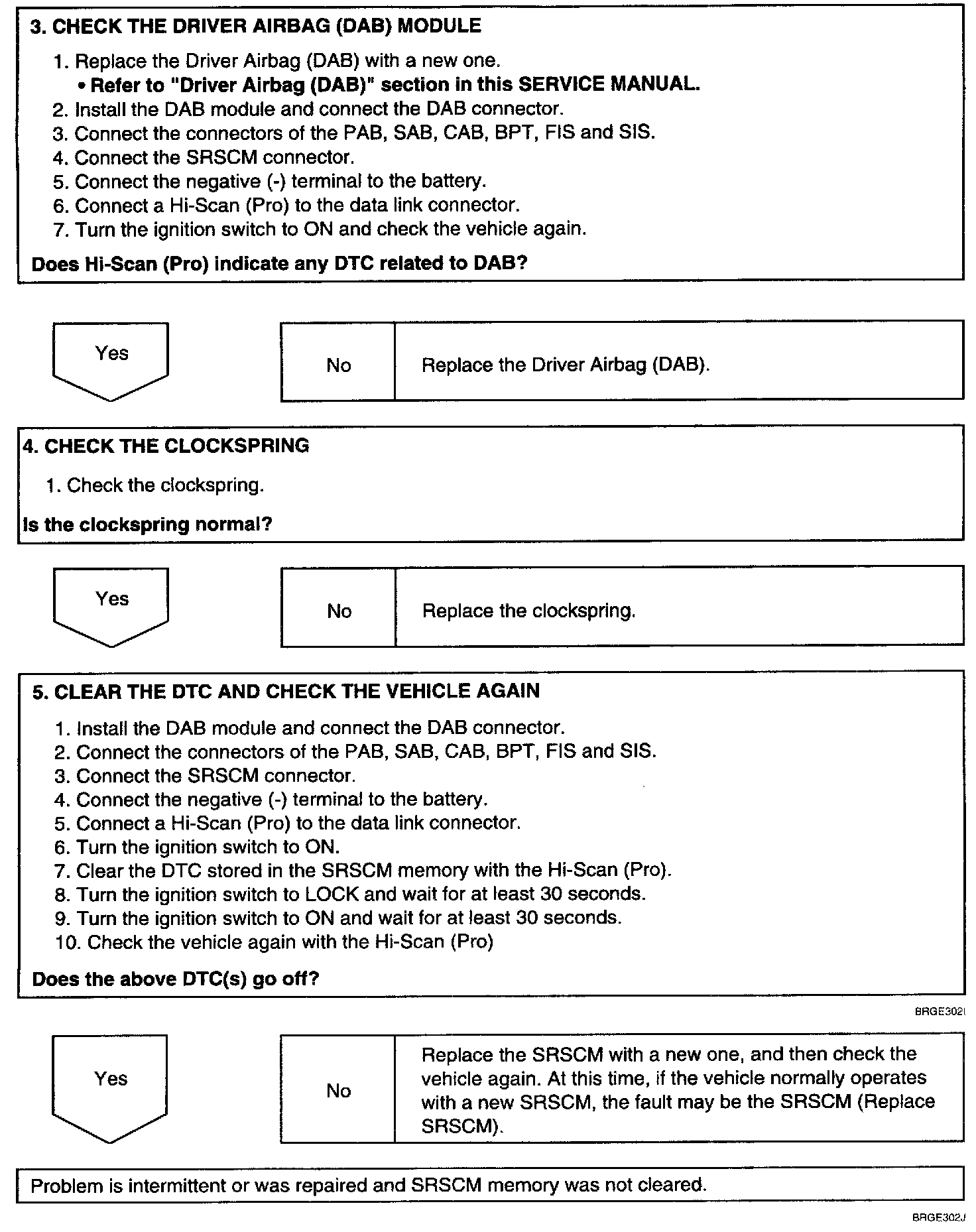

Step 3 - 5:

INSPECTION PROCEDURE
