B1390

DTC B1390 Seat Track Position Sensor [Passenger] Short or Short to Ground

DESCRIPTION

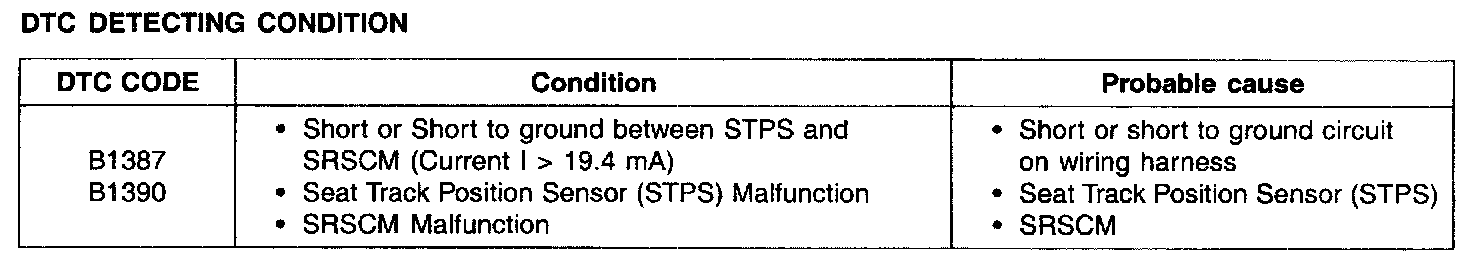

B1387 - B1390:

The Seat Track Position Sensor (STPS) circuit consists of the SRSCM and two STPS. The SRSCM sets above DTC(s) if it detects short or short to ground on the STPS circuit. The "Seat Forward" status currently represents a seat position in which the deployment of the second stage airbag is prohibited.

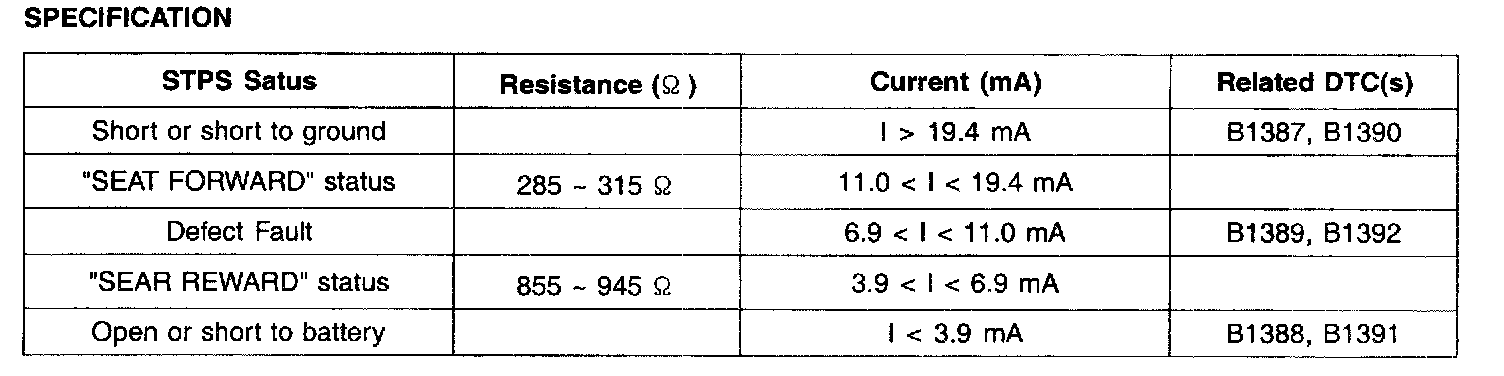

Specification:

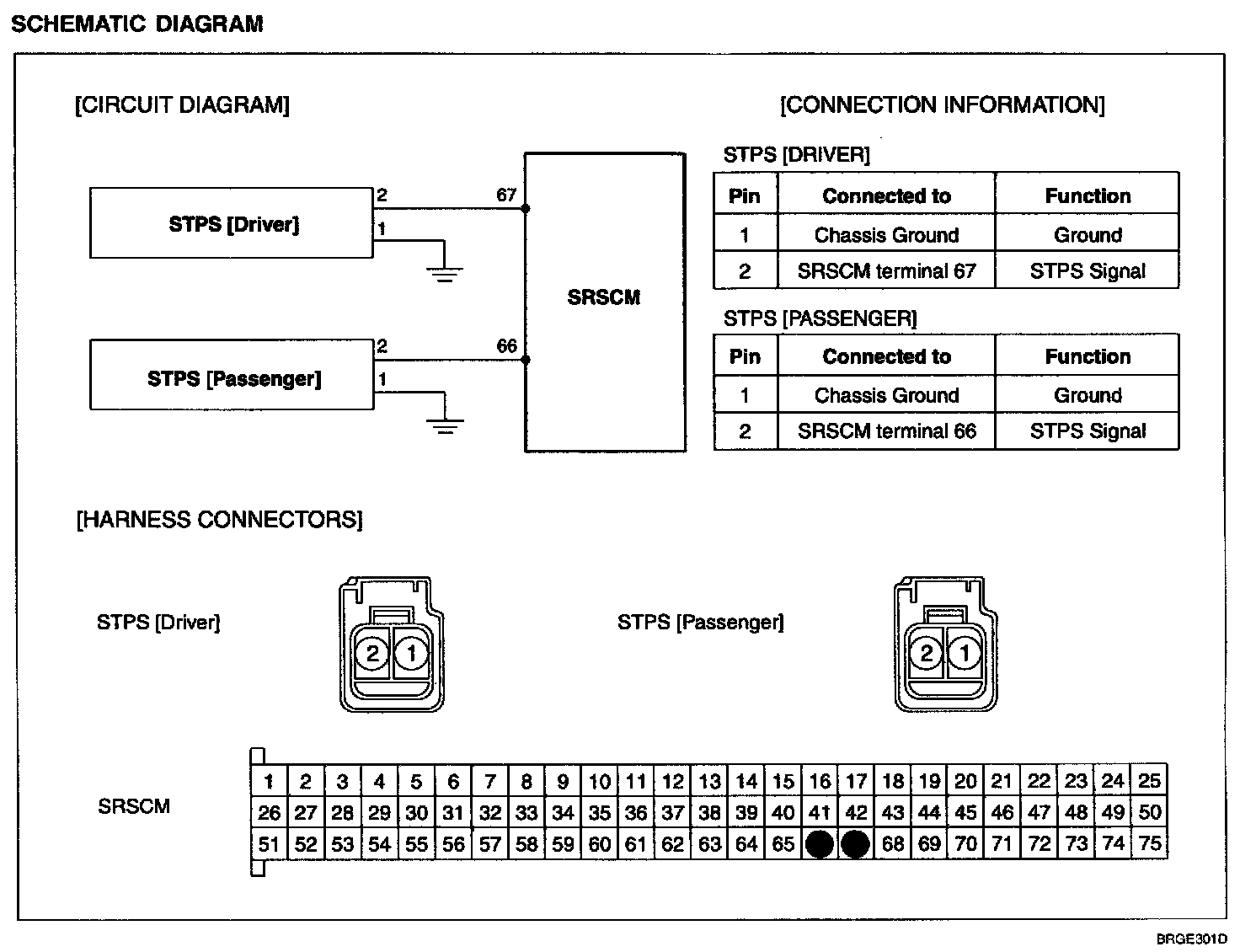

Schematic Diagram:

Step 1 - 3:

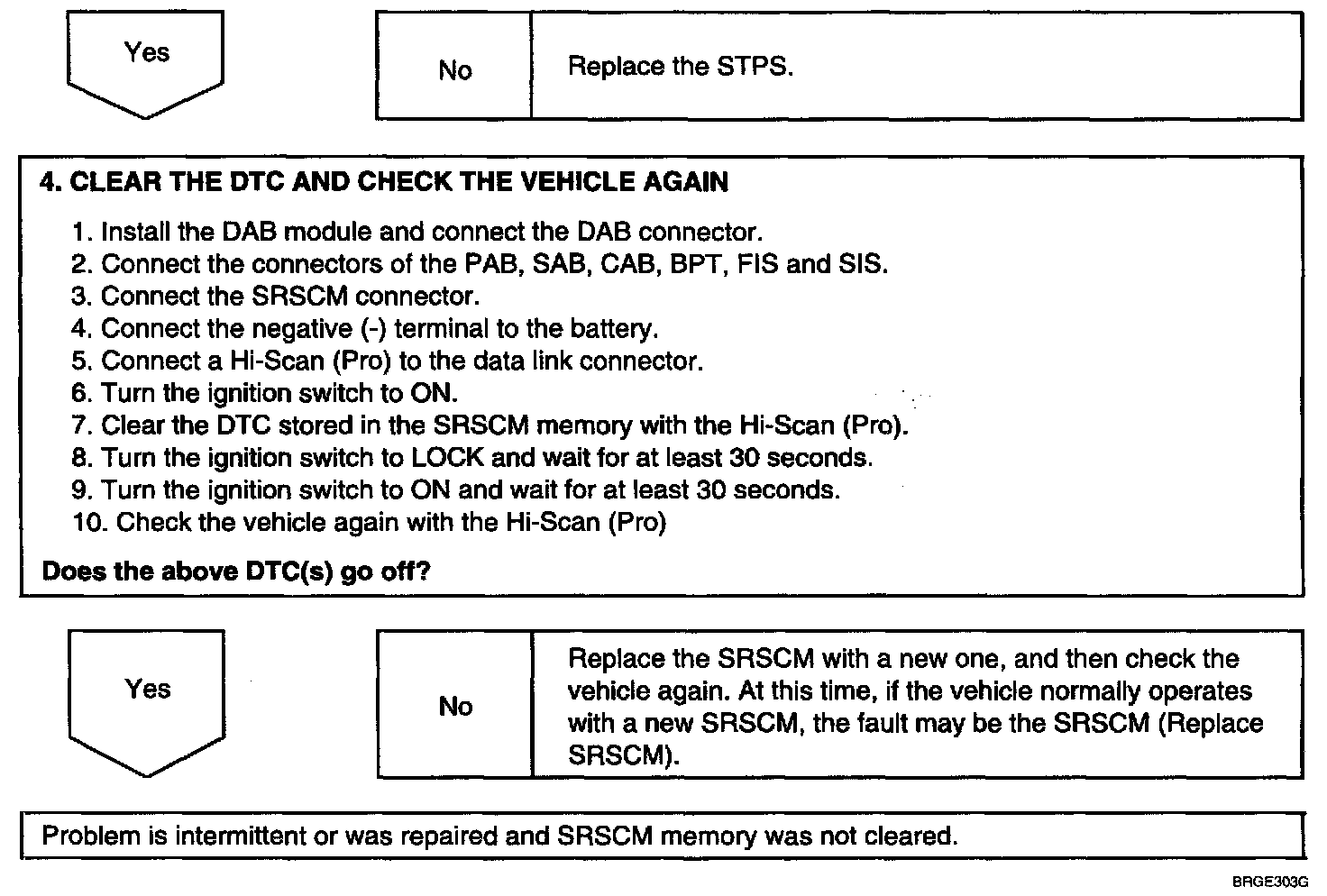

Step 3 - 4:

INSPECTION PROCEDURE
